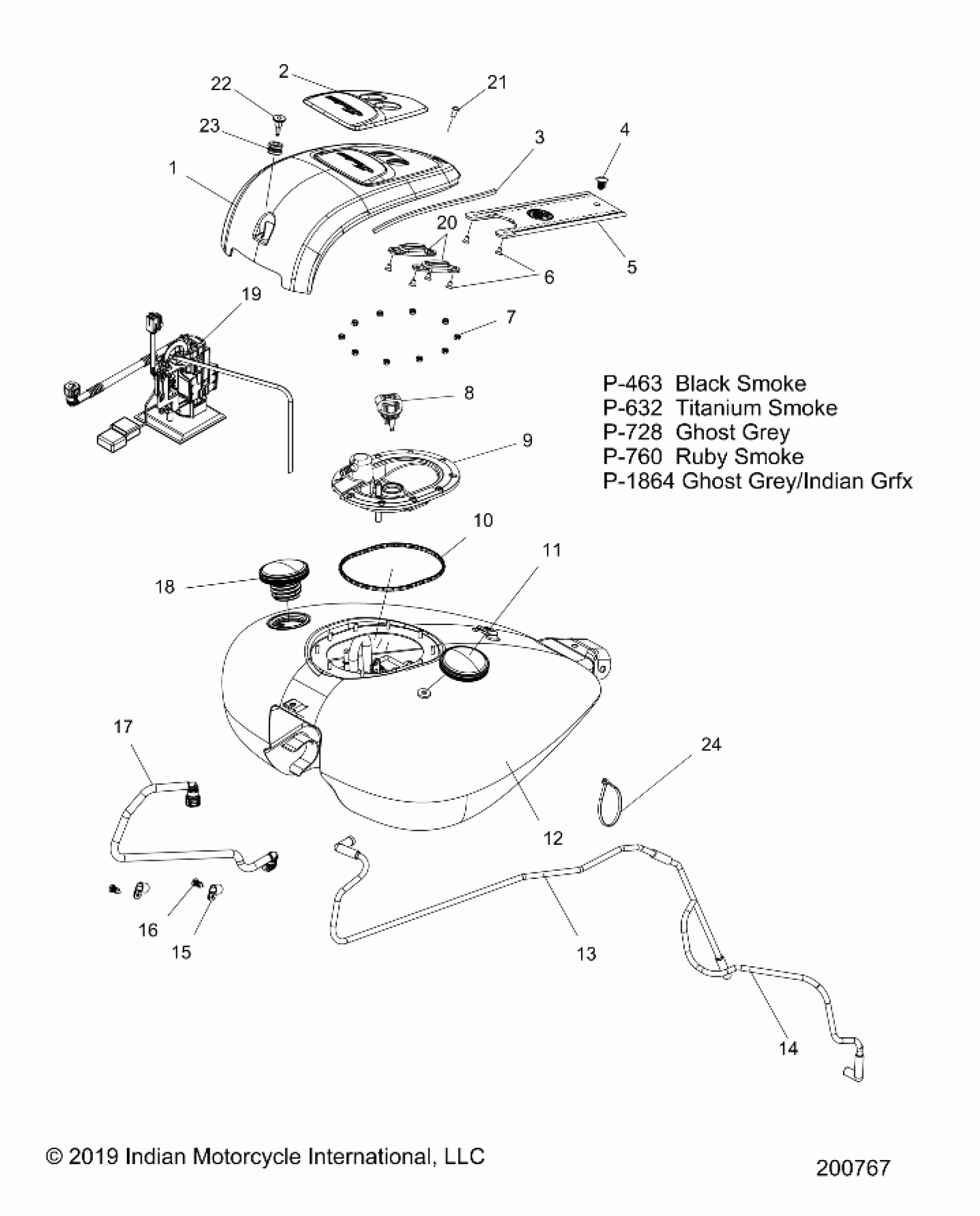

Polaris CHIEFTAIN DARK HORSE (R05) - N20TCDBBA7/B/H/T/B7/B/H/T/C7/B/H/T/E7/B/H/T FUEL SYSTEM, FUEL TANK ASM. - N20TCDBB ALL OPTIONS (200767) Diagram

#

Description
Price

1

CONSOLE-OUTER, NO GAUGE, AL

5633653-463

$524.99

1

CONSOLE-OUTER, NO GAUGE, AL

5633653-632

$524.99

1

CONSOLE-OUTER, NO GAUGE, AL

5633653-728

$629.99

1

CONSOLE-OUTER, NO GAUGE, AL

5633653-760

$524.99

2

CONSOLE-INNER, NO GAUGE,DH

5262804-16

$119.99

3

TRIM, EDGE, CONSOLE, 450MM

8360133

$40.46

4

CLIP-PLASTIC DART, NYLON

7670088

$1.59

5

STRAP-FUEL TANK,VINYL,BLK/BLK

2688986

$179.11

6

SCREW

7519876

$3.97

7

NUT-M5X.8,HX NYL-Y

7546601

$1.19

8

CONNECTOR, FUEL PUMP

4014261

$39.68

9

ASM., FUEL ACCESS [INCL. 8]

2521374

$250.94

10

SEAL, FUEL

5414514

$43.65

11

CAP, FUEL, DUMMY, BLK

2522215-266

$101.65

12

TANK, FUEL

1021997-463

$2,399.99

12

TANK, FUEL

1021997-760

$2,399.99

12

TANK, FUEL

1021997-632

$3,034.99

12

TANK, FUEL

1021997-1864

$3,664.99

13

LINE, VENT TO GROUND, UPPER

5439857

$96.81

14

LINE, VENT TO GROUND, LOWER

5439858

$179.99

15

CLAMP, CABLE

7080499

$5.56

16

CLIP, XMAS TREE

7661953

$1.19

17

LINE, FUEL,HWI

5416352

$121.02

18

CAP, FUEL, BLK

2522214-266

$125.86

19

ASM., PUMP, SENDER-FUEL, SVCBLFLTR

2522160

$469.99

19

K-SVC, FUEL FILTER

2207067

Unavailable

20

PLUG, CONSOLE, TALL

5453426

$9.70

21

SCREW

7519000

$2.84

22

SCREW-SHLDR

7519350

$13.49

23

GROMMET

5412201

$6.35

24

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41
