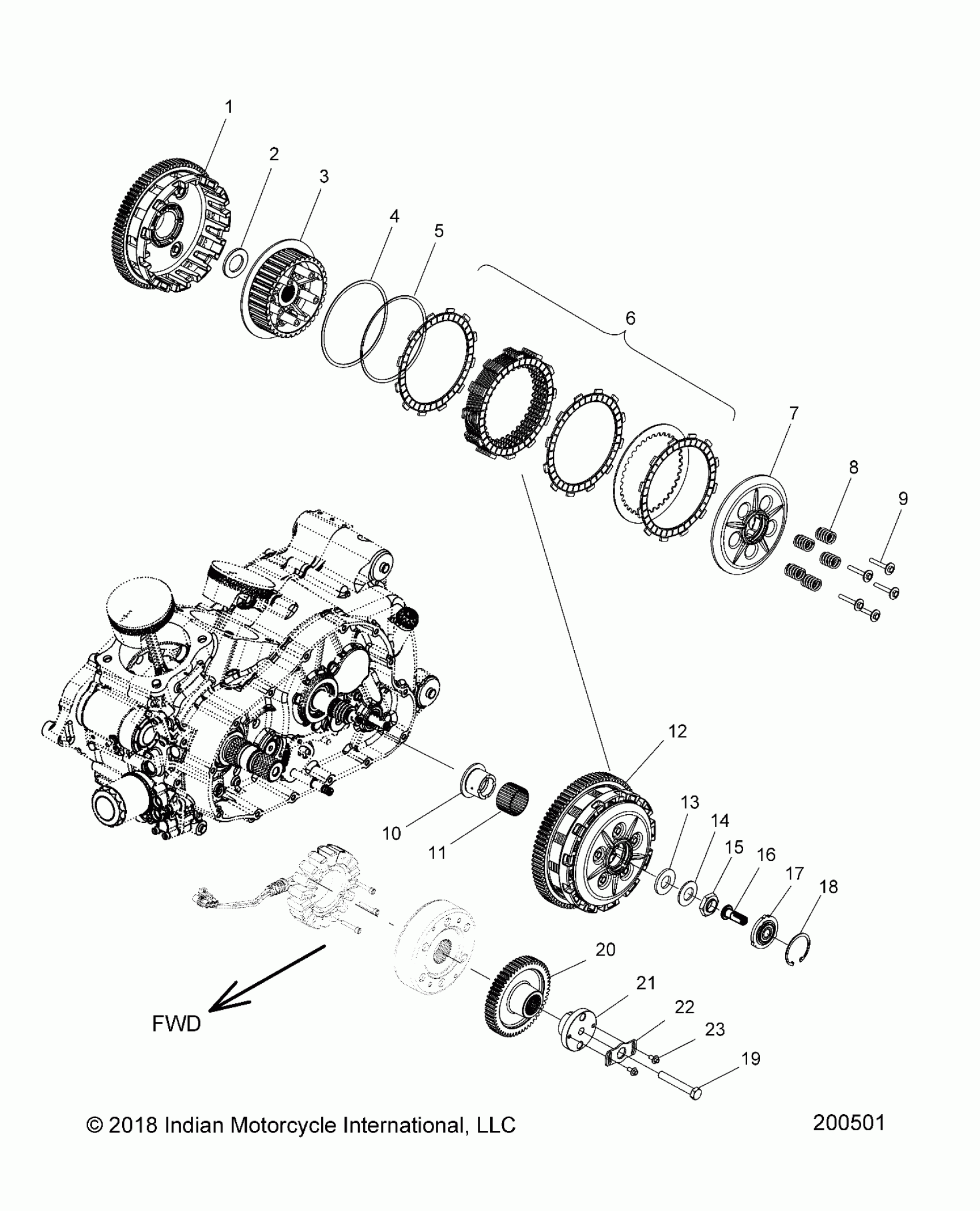

Polaris CHIEFTAIN DARK HORSE (R05) - N20TCDBBA7/B/H/T/B7/B/H/T/C7/B/H/T/E7/B/H/T DRIVE TRAIN, CLUTCH AND PRIMARY DRIVE - N20TCDBB ALL OPTIONS (200501) Diagram

ASM, BASKET, OUTER, CLUTCH

1333061

$869.99

WASHER, THRUST

7556747

$42.84

HUB, CLUTCH, INNER

5138090

$229.99

SEAT, JUDDER SPRING

5256848

$67.76

SPRING, JUDDER, CLUTCH

7043878

$48.56

KIT, CLUTCH PACK [INCL. ALL FRICTION AND SEPERATOR PLATES]

2205282

$369.99

PLATE, PRESSURE

5138284

$109.27

SPRING-CLUTCH,395N

7044826

$74.99

SCREW-HHSEMS-M6X1.0X45,8.8,ZPC

7519767

$4.76

COLLAR, BEARING

5138283

$125.86

BEARING, NEEDLE

3514791

$91.97

ASM., CLUTCH [INCL. 1-11]

1334067

$1,349.99

WASHER

7556518

$10.32

SPRING DISC

7556519

$32.37

NUT-HEX,M20X1.5,32 A/F,STAKING

7547477

Unavailable

CLUTCH, LIFT RACK

6230980

$59.99

ASM., CLUTCH LIFTER

1205702

$60.70

RING, RETAINING, INTERNAL

7710651

$1.59

SCREW-HXHD-M12X80,12.9,PO P80

7519819

$31.75

GEAR-PRIMARY DRIVE [ALSO ORDER 6230976]

6230978

$280.78

ADAPTER-COLD TEST,SPLINED [ALSO ORDER 6230978]

6230976

$106.49

PLATE-LOCK CRANK/COMP

5262886

$8.08

SCREW-HXFL-M6X1.0X12 10.9 ZPC

7517257

$9.52
