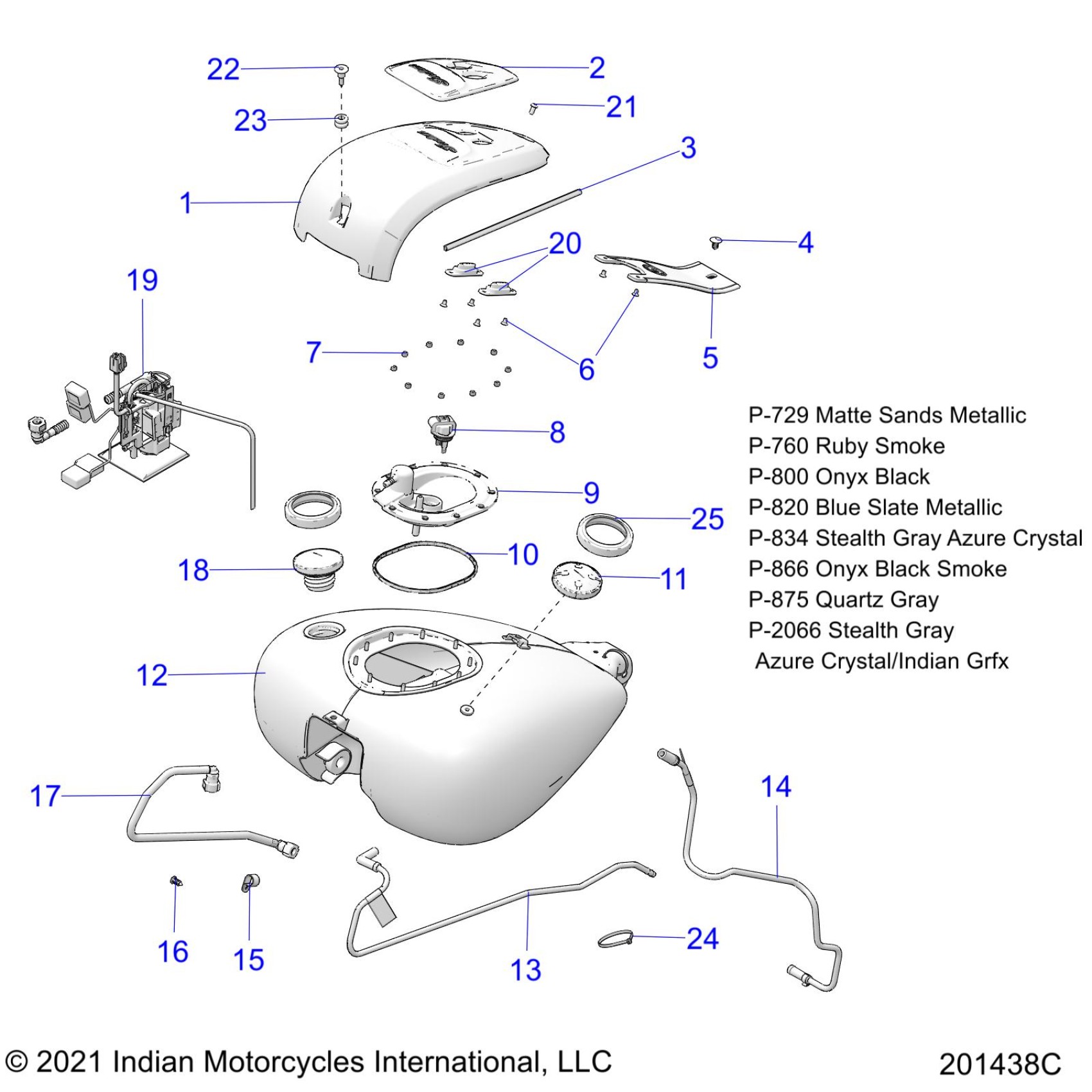

Polaris CHIEFTAIN DARK HORSE (R03) - N22TCDBBAH/J/K/L/M/N/BH/J/K/L/M/N/CH/J/K/L/M/N/EH/J/K/L/M/N FUEL SYSTEM, FUEL TANK ASM. - N22TCDBB ALL OPTIONS (201438C) Diagram

#

Description
Price

1

CONSOLE-OUTER,NOGAGE,AL,ONYXBK (ONYX BLACK)

5633653-800

$524.99

1

CONSOLE-OUTER, NO GAUGE, AL (RUBY SMOKE)

5633653-760

$524.99

1

CONSOLE-OUTER,NOGAGE,AL,QTZGRY (QUARTZ GRAY)

5633653-875

$489.99

1

CONSOLE-OUTER,NOGAGE,AL,DRTSMK (MATTE SANDS METALLIC)

5633653-729

$489.99

1

CONSOLE-OUTER,NOGAGE,AL,GRYAZ (STEALTH GRAY AZURE CRYSTAL)

5633653-834

$489.99

1

CONSOLE-OUTER,NO GAUGE,AL,BLSL (BLUE SLATE METALLIC)

5633653-820

$489.99

2

CONSOLE-INNER, NO GAUGE,DH

5262804-16

$119.99

3

TRIM-EDGE,CONSOLE,450MM

8360222

$28.32

4

CLIP-PLASTIC DART, NYLON

7670088

$1.59

5

STRAP, FUEL TANK, VINYL, BLK/BLK

2688986

$179.11

6

SCREW-FLHD-M5X.8X8.8 ZNC

7519876

$3.97

7

NUT-HXFL-M5X0.8 8 ZPC NYL

7547829

$3.17

8

CONNECTOR, FUEL PUMP

4014261

$39.68

9

ASM-FUEL ACCESS,PPA (INCL. 8)

2522275

$246.89

10

SEAL-FUEL,MOLDED

5414514

$43.65

11

CAP, FUEL, DUMMY, BLK

2522215-266

$101.65

12

ASM-TANK,FUEL,ONYXBLKSMK (ONYX BLACK SMOKE)

1025508-866

$2,399.99

12

ASM-TANK,FUEL,RUBYSMK (RUBY SMOKE)

1025508-760

$2,399.99

12

ASM-TANK,FUEL,QTZGRY (QUARTZ GRAY)

1025508-875

$2,399.99

12

ASM-TANK,FUEL,DRTTRSMK (MATTE SANDS METALLIC)

1025508-729

$2,399.99

12

ASM-TANK,FUEL,STLGRYAZGX (STEALTH GRAY AZURE CRYSTAL)

1025508-2066

$3,034.99

12

ASM-TANK,FUEL,BLSLT (BLUE SLATE METALLIC)

1025508-820

$3,224.99

13

LINE, VENT TO GROUND, UPPER

5439857

$96.81

14

LINE-FUEL,VENT TO GROUND,LWR

5456825

$114.99

15

CLAMP-CABLE, 9/16 I.D.

7080499

$5.56

16

CLIP-XMAS TREE,.70X.187 DIA

7661953

$1.19

17

LINE-FUEL,HWAC,IND

5417881

$121.02

18

CAP, FUEL, BLK

2522214-266

$125.86

18

CAP-FUEL,TETHER,BLK (CHINA)

2522281-266

$125.86

19

PUMP-FUEL

2522476

$449.99

19

K-SVC, FUEL FILTER

2207067

Unavailable

20

PLUG, SWITCH, CONSOLE, TALL

5453426

$9.70

21

SCREW-HXBH-M6X1.0X12 A2

7519000

$2.84

22

SCREW-SHLDR-M6X11.75X14

7519350

$13.49

23

ISOLATOR, RUBBER

5412201

$6.35

24

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

25

BUMPER-CAP,FUEL (CHINA)

5417339

$5.65
