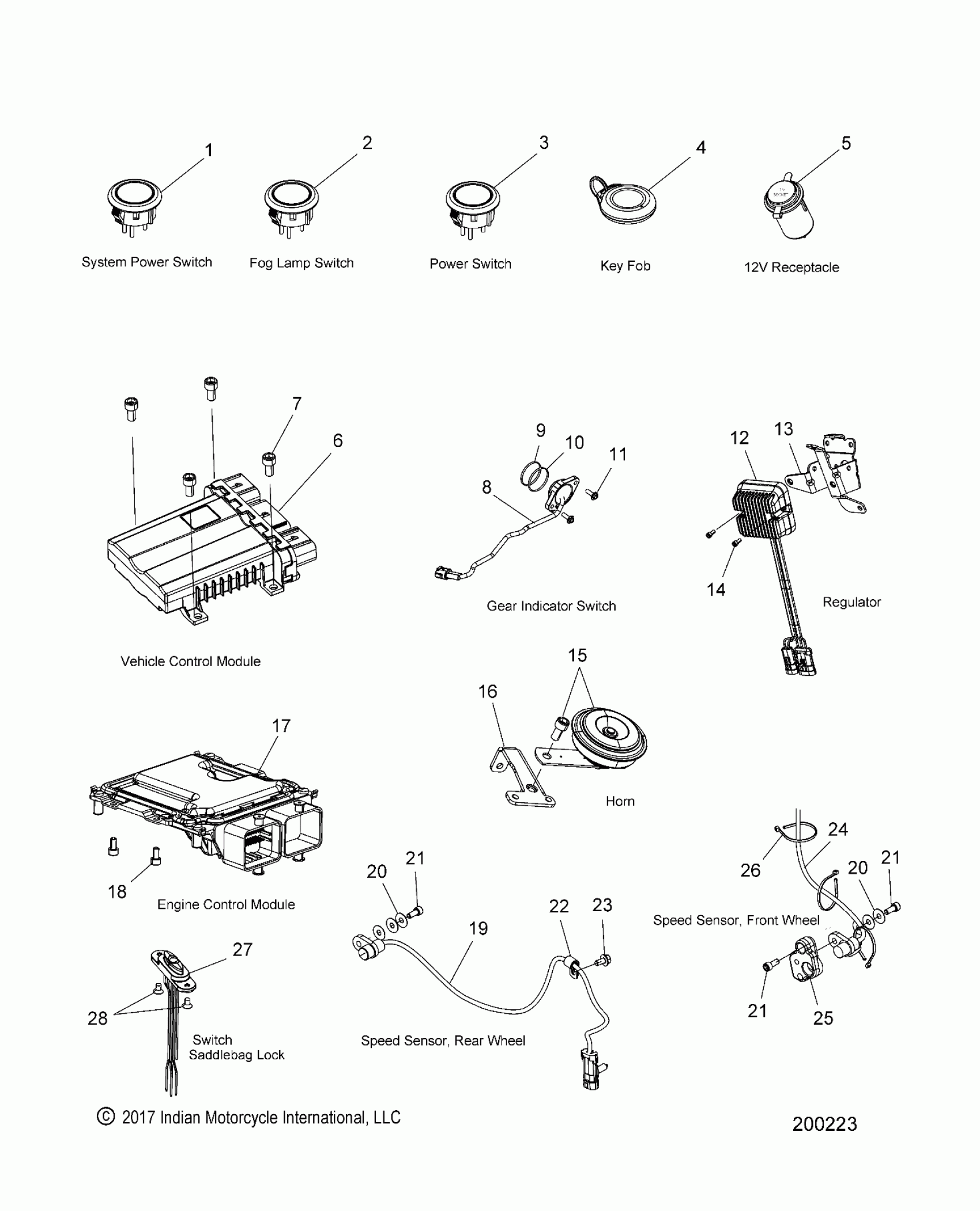

Polaris CHIEFTAIN DARK HORSE ALL OPTIONS (R05) - N18TCDAAAH/BH/CH/EH ELECTRICAL, COMPONENTS 1 - N18TCDAA ALL OPTIONS (200223) Diagram

#

Description
Price

1

SWITCH-POWER

4016998

$82.29

2

SWITCH, FOG, LONG, BLACK

4016999

$72.60

3

SWITCH-POWER, BLACK

4016998

$82.29

4

REMOTE CONTROL, FOB 2 BTN.

4014121

Unavailable

4

BATTERY, KEY FOB

4014675

$10.99

4

K-FOB HOUSING, 2 BTN [PLASTIC HOUSING ONLY]

2207317

$32.37

5

RECEPTACLE-POD MNT,12 VOLT

4012393

$36.41

6

ASM-VCM, PROGRAMMED, IND, 9X [SVC][DEALER INSTALL REQUIRED]

2414229

$789.99

7

SCREW-SH, M8x16

7517569

$4.76

8

SWITCH, GEAR, N-6, W/GROUND

4014718

$39.99

9

O-RING

5412530

$1.60

10

RING, PARBAK

5450958

$6.46

11

SCREW

7519986

$4.76

12

REGULATOR, VOLTAGE

4014300

Unavailable

13

BRKT., VOLTAGE REGULATOR

5257637

$97.13

14

SCREW

7517272

$7.84

15

SCREW

7517569

$4.76

15

HORN-DISC, LOW TONE, TVS

4017620

$87.13

16

BRKT-HORN MOUNT

5264799

$28.32

17

ECM, NO START, ME17 [SVC]

4014125

$749.99

18

SCREW

7519851

$3.17

19

SENSOR, WHEEL SPEED, REAR

4014216

Unavailable

20

SHIM

5255106

Unavailable

20

SHIM

5255106

Unavailable

21

SCREW

7517272

$7.84

21

SCREW

7517272

$7.84

21

SCREW

7517272

$7.84

22

CLAMP-REAR BRAKE

7080983

$4.35

23

SCREW

7517704

$7.84

24

SENSOR, WHEEL SPEED, FRONT

4013251

$242.05

25

MOUNT, SPEED SENSOR, ABS

5632575

$36.41

26

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

27

SWITCH-SADDLEBAG LOCK V2

4017110

$116.17

28

SCR-FLHD-M5X.8X8.8 ZNC

7519876

$3.97
