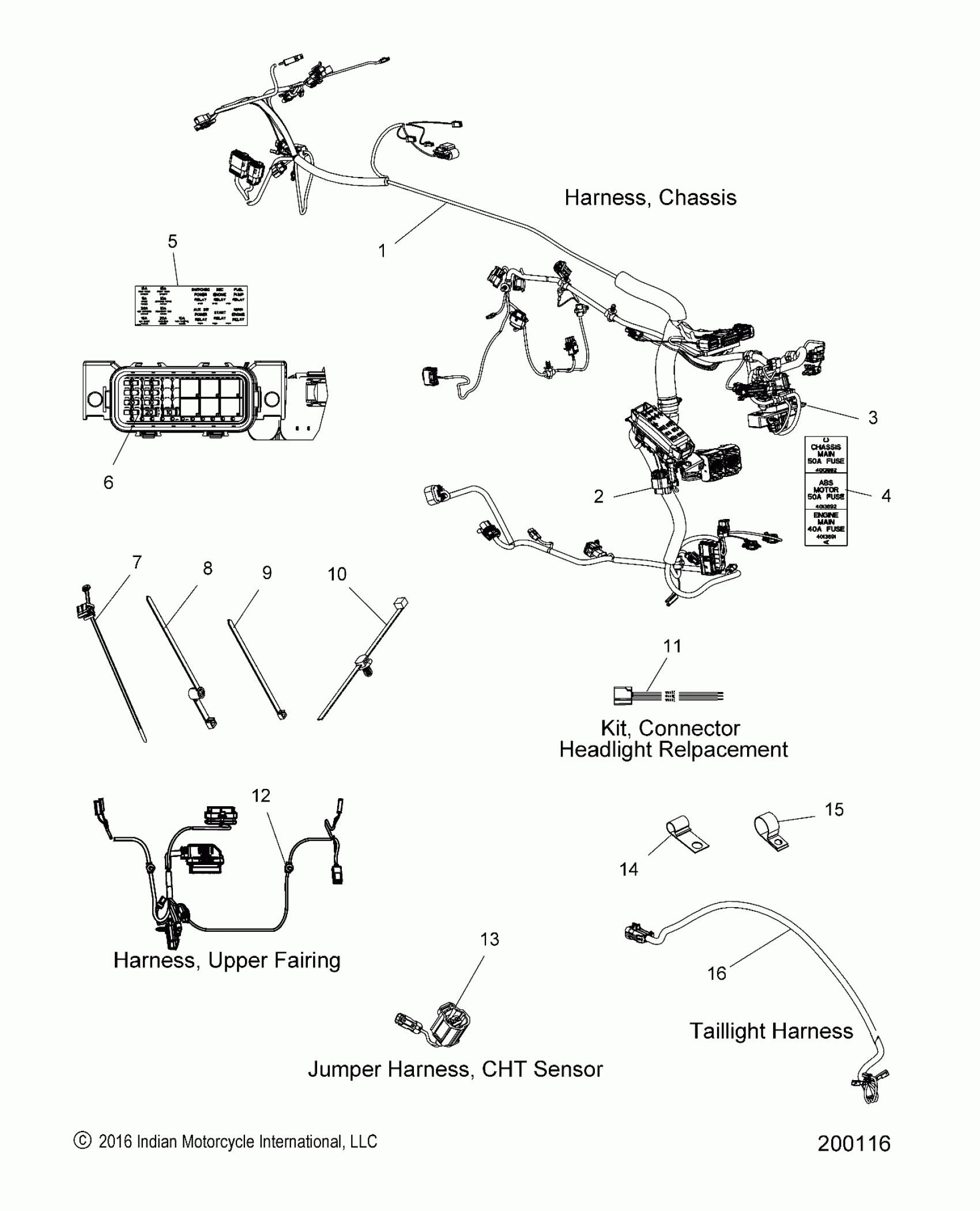

Polaris CHIEFTAIN DARK HORSE ALL OPTIONS (R03) - N17TCDAA ELECTRICAL, WIRE HARNESS - N17TCDAA ALL OPTIONS (200116) Diagram

#

Description
Price

1

HARNESS, CHASSIS

2412300

$1,609.99

2

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.89

3

COVER, FUSEBOX, JCASE

4013565

$62.92

3

FUSEBOX, JCASE

4013563

$77.44

4

DECAL, JCASE

7179952

$4.84

5

DECAL, FUSEBOX

7179551

Unavailable

6

FUSE-5A,MINI BLADE

4011652

$11.32

6

BREAKER-CIRCUIT,20 AMP

4011372

$44.51

6

RELAY-SPST,SERIES 303,SEALED

4011283

$36.41

6

FUSE-PARK,20 AMP

2434017

$8.08

6

FUSE-IGNITION,10 AMP

2434016

$5.65

6

FUSE-MINI BLADE,15 AMP

2410280

$8.08

6

Breaker, Circuit, 10 Amp

4011371

$15.87

6

FUSE, CARTRIDGE, 50A

4013892

$28.32

6

RELAY, SPST, 12V, 20A, SEALED, HFA

4016186

$36.41

6

FUSE-CARTRIDGE,40A

4013891

$39.98

6

SEAL, FUSE CENTER

5415598

$8.73

7

CLIP-EDGE, SIDE W/STRAP

7081876

$7.94

8

CLIP, STUD MOUNT, TIE

7081909

Unavailable

9

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

10

CLIP FIR-TREE,DIA6-33MM

7081496

$4.76

11

KIT, HEADLIGHT CONNECTOR REPLACEMENT

2205394

$71.41

12

HARNESS, UPPER FAIRING

2412301

Unavailable

13

HARNESS, JUMPER, CHT SENSOR

4014350

$43.56

14

Clip, J

7080884

$3.97

15

CLAMP-RUBBER COATED,.75" ID

7081116

$7.14

16

HARNESS, TAILLIGHT

2413674

$89.99

16

HARNESS, TAILLIGHT

2413674

$89.99
