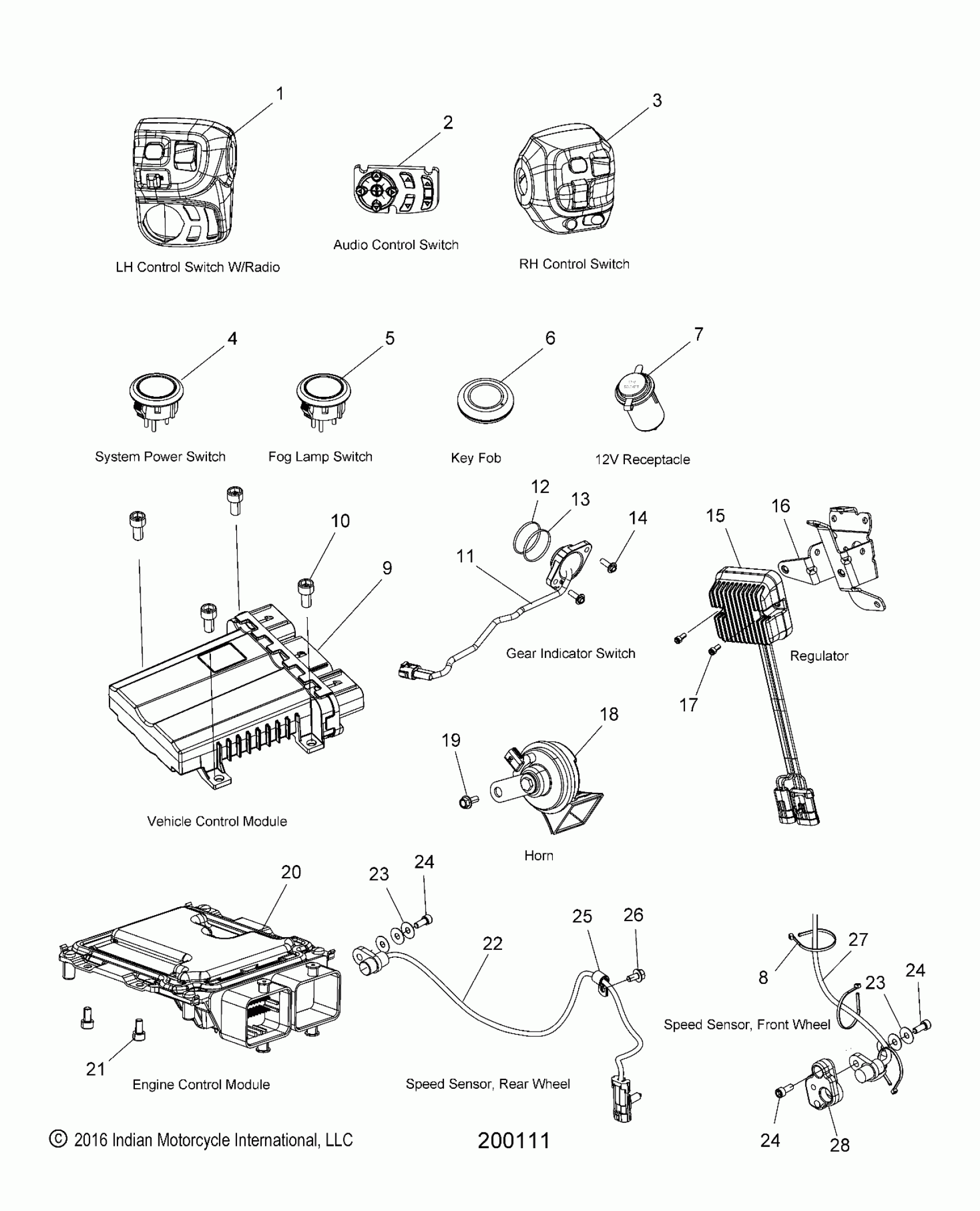

Polaris CHIEFTAIN DARK HORSE ALL OPTIONS (R03) - N17TCDAA ELECTRICAL, COMPONENTS 1 - N17TCDAA ALL OPTIONS (200111) Diagram

#

Description
Price

1

BUTTON-SWITCH, TURN SIGNAL

5453101

Unavailable

1

SWITCH, CONTROL, LH, TOUR, BLACK

4015197-067

Unavailable

2

SWITCH, AUDIO CONTROL [SWITCH ONLY]

4014694

Unavailable

2

BRKT.-AUDIO SWITCH

5258235

Unavailable

2

SCREW

7519913

Unavailable

3

ASM., ETC SWITCH CONTROL, BLACK

2413027-067

Unavailable

4

SWITCH, SYSTEM POWER

4016373

Unavailable

5

SWITCH, FOG, LONG

4016252

Unavailable

6

BATTERY, KEY FOB

4014675

Unavailable

6

REMOTE CONTROL, FOB

4014111

Unavailable

6

K-FOB HOUSING [PLASTIC HOUSING ONLY]

2206558

Unavailable

7

RECEPTACLE-POD MNT,12 VOLT

4012393

$31.99

8

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

9

MODULE, VEHICLE CONTROL [SVC][DEALER INSTALL REQUIRED]

4016189

Unavailable

10

SCREW

7517781

$3.19

11

SWITCH, GEAR, N-6, W/GROUND

4014718

Unavailable

12

O-RING

5412530

$1.59

13

RING, PARBAK

5450958

Unavailable

14

SCREW

7519986

Unavailable

15

REGULATOR, VOLTAGE

4014300

Unavailable

16

BRKT., VOLTAGE REGULATOR

5257637

Unavailable

17

SCREW

7517272

$7.19

18

HORN, TRUMPET, LOW TONE, TVS

4015908

Unavailable

19

SCREW

7520122

$4.79

20

ECM, NO START, ME17 [SVC]

4014125

$694.99

21

SCREW

7519851

Unavailable

22

SENSOR, WHEEL SPEED, REAR

4014216

Unavailable

23

SHIM

5255106

Unavailable

23

SHIM

5255106

Unavailable

24

SCREW

7517272

$7.19

24

SCREW

7517272

$7.19

24

SCREW

7517272

$7.19

25

CLAMP-REAR BRAKE

7080983

$3.99

26

SCREW

7517704

$7.19

27

SENSOR, WHEEL SPEED, FRONT

4013251

Unavailable

28

MOUNT, SPEED SENSOR, ABS

5632575

Unavailable
