- CHIEFTAIN DARK HORSE ALL OPTIONS (R03) - N17TCDAA
BODY, SADDLEBAG ASM. - N17TCDAA ALL OPTIONS (200107)

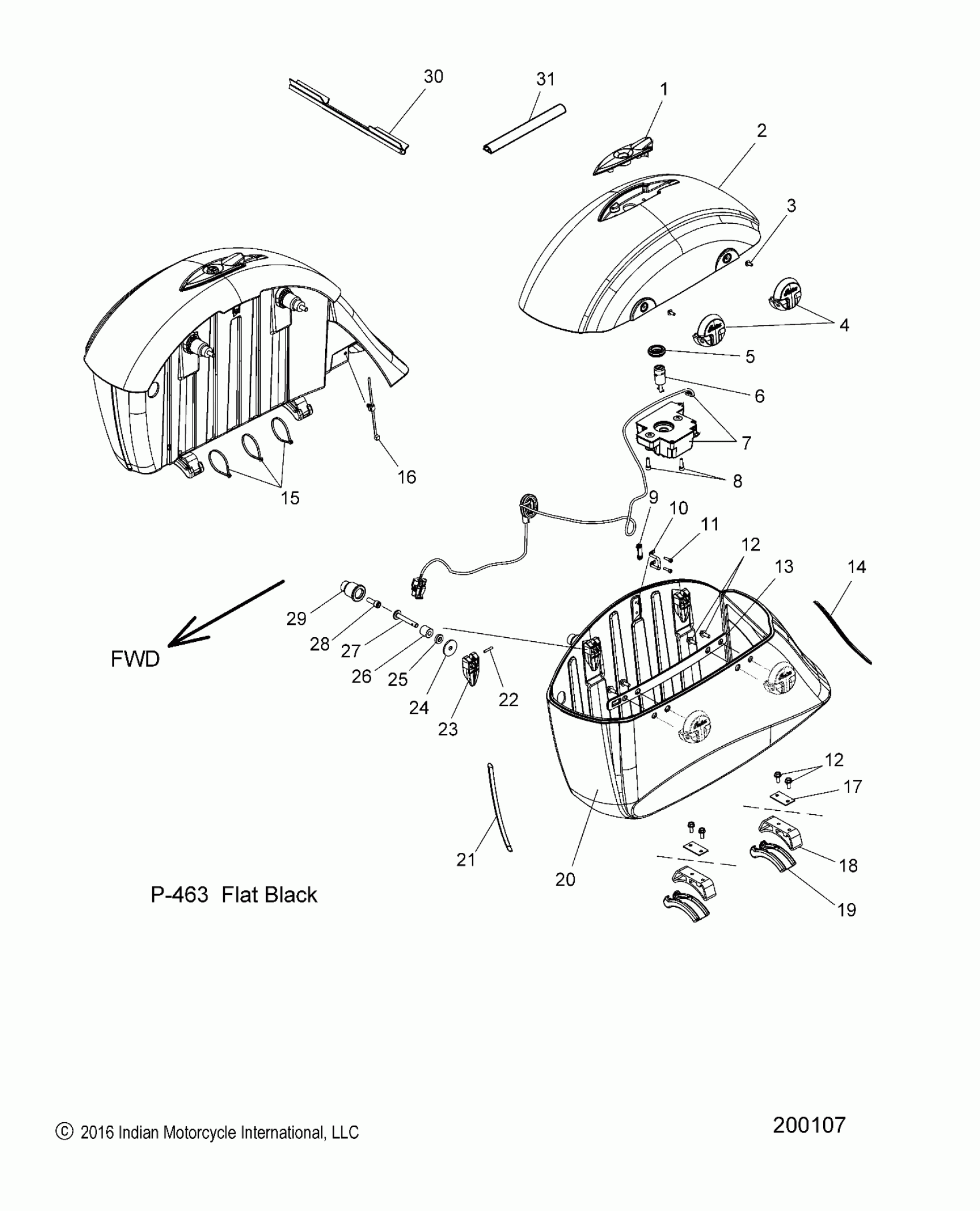

Polaris CHIEFTAIN DARK HORSE ALL OPTIONS (R03) - N17TCDAA BODY, SADDLEBAG ASM. - N17TCDAA ALL OPTIONS (200107) Diagram
#
1
BEZEL, LOCK, SADDLEBAG, CHROME
5450924-156
Unavailable
2
LID, SADDLEBAG, LH
5450213-463
Unavailable
2
LID, SADDLEBAG, RH
5450214-463
Unavailable
3
SCREW
7518338
$4.79
4
ASM., HINGE, SADDLEBAG, REAR, CHROME [FRONT ON RH SIDE, REAR ON LH SIDE]
2634925-156
Unavailable
4
ASM., HINGE, SADDLEBAG, FRONT, CHROME [FRONT ON LH SIDE, REAR ON RH SIDE]
2634898-156
Unavailable
5
SEAL-LOCK,SDLBG
5414686
Unavailable
6
KIT, LOCK, STEERING HEAD/SADDLEBAG [INCL. STEERING HEAD LOCK, SADDLEBAG LOCKS]
2205200
Unavailable
7
LOCK-ELECTRONIC, SADDLEBAG [WHEN PURCHASING LOCK, ALSO ORDER CORRESPONDING HARNESS]
4017838
Unavailable
7
HARNESS-LEFTSBAG
2413895
Unavailable
7
HARNESS-RIGHTSBAG
2413896
Unavailable
8
SCREW
7517305
$4.79
9
ASM., BRACKET, HOOP
1016590
Unavailable
10
HOOP, LATCH, STRIKER, LH
5338190
Unavailable
10
HOOP, LATCH, STRIKER, RH
5338191
Unavailable
11
SCREW
7518812
Unavailable
12
SCREW
7518591
$3.73
12
SCREW
7518591
$3.73
13
BRKT. HINGE, LH, FLAT BLACK
5138474-463
Unavailable
13
BRKT. HINGE, RH, FLAT BLACK
5138475-463
Unavailable
14
TRIM, SADDLEBAG, REAR, CHROME
5450222-156
Unavailable
15
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
16
CLIP FIR-TREE,DIA6-33MM
7081496
$4.79
17
PLATE, BACKUP, SADDLEBAG
5257409
Unavailable
18
BRKT. MOUNT, SADDLEBAG
5257139
Unavailable
19
PAD, MOUNT, SADDLEBAG
5414642
Unavailable
20
ASM., BIN, SADDLEBAG, LH
5451493-463
Unavailable
20
ASM., BIN, SADDLEBAG, RH
5451494-463
Unavailable
21
TRIM, SADDLEBAG, FRONT, CHROME
5450220-156
Unavailable
22
PIN, DOWEL
7661970
$1.59
23
CAM, LATCH
5450622
Unavailable
24
WASHER, RUBBER
5414770
Unavailable
25
SPACER, LATCH
5139225
Unavailable
26
BUSHING, ANCHOR, SADDLEBAG
5414757
Unavailable
27
PIN, ANCHOR
7662154
Unavailable
28
SCREW
7520170
Unavailable
29
SPOOL, SADDLEBAG
5139710
Unavailable
30
SEAL, SADDLEBAG, MECH.
5415263
Unavailable
31
COVER, WIRE
5522014
Unavailable
