- CHIEFTAIN CLASSIC ALL OPTIONS (R08) - N19TFAAAA4/A/G/N/P/Y/B4/A/G/N/P/Y/C4/A/G/N/P/Y/E4/A/G/N/P/Y
BODY, FAIRING ASM, WINDSHIELD MOUNT - N19TFAAA ALL OPTIONS (200340)

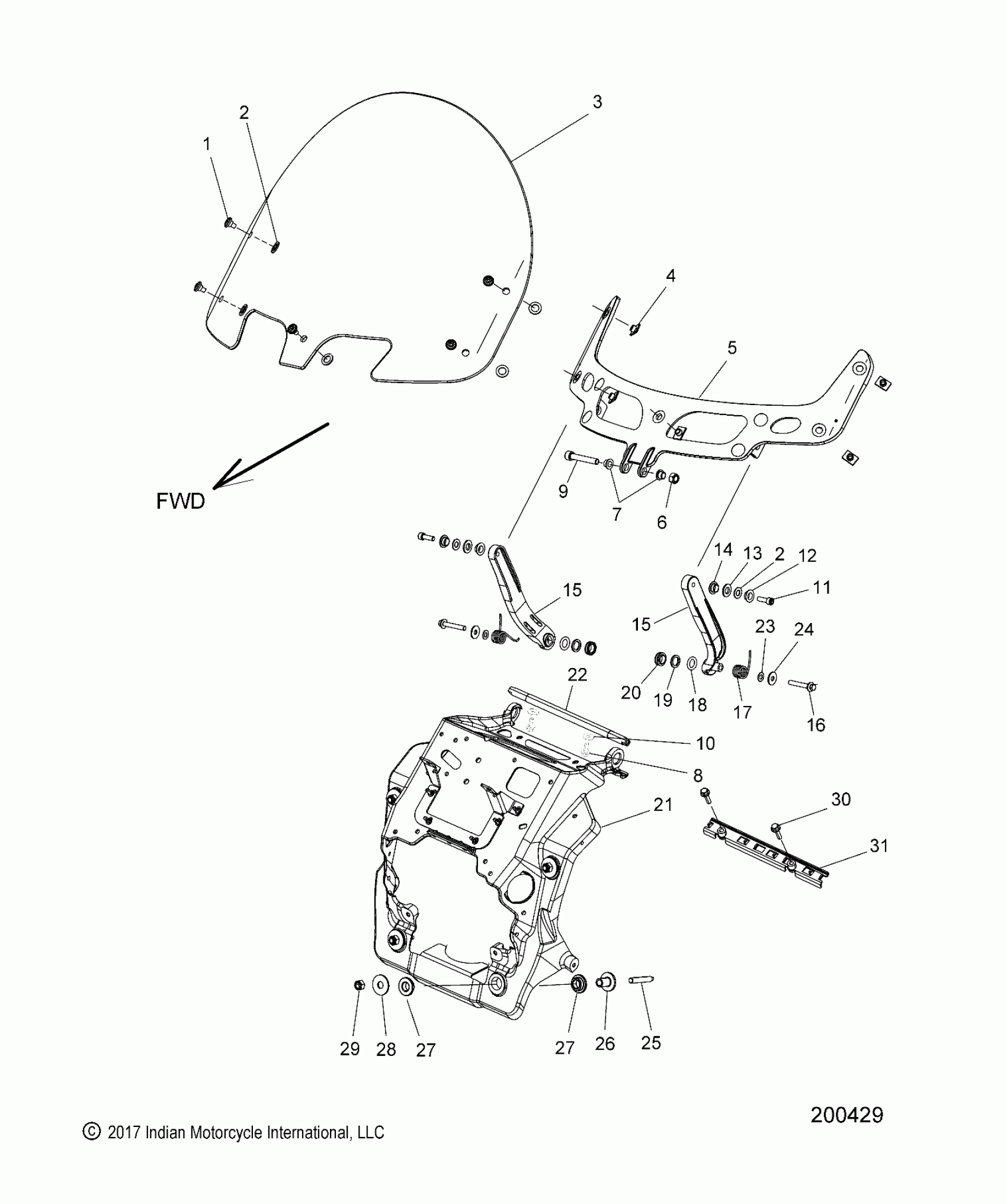

Polaris CHIEFTAIN CLASSIC ALL OPTIONS (R08) - N19TFAAAA4/A/G/N/P/Y/B4/A/G/N/P/Y/C4/A/G/N/P/Y/E4/A/G/N/P/Y BODY, FAIRING ASM, WINDSHIELD MOUNT - N19TFAAA ALL OPTIONS (200340) Diagram
#
Description
Price
1
SCR-SH-M6x1.0x7 302SS PSVTD [STAINLESS STEEL]
7518788
Unavailable
1
BOLT, SHOULDER,M6x1.0x7MM,9MM NITRIDE [BLK]
7520510
Unavailable
2
WSHR-FL,11X18X1.59MM
5813188
$1.19
2
WSHR-FL,11X18X1.59MM
5813188
$1.19
3
KIT, WINDSHIELD, TOURING
2881796
Unavailable
4
T-NUT
7547300
$1.59
5
SUPPORT, WINDSHIELD
5138467-626
Unavailable
6
NUT
7547454
Unavailable
7
BRG-FLANGE,8X10X7MM
3514565
Unavailable
8
SCREW, HXFL-M6
7518591
$3.73
9
SCREW
7518013
Unavailable
10
WSHR-6.4X18.0X1.6 ZPB
7556064
$5.22
11
SCREW
7517305
$4.79
12
BUSHING, FLANGE
5140871
Unavailable
13
WASHER, THRUST
7556832
Unavailable
14
FLANGE, BEARING
3514853
Unavailable
15
LINK, WINDSHIELD
5138909-626
Unavailable
15
LINK, WINDSHIELD
5138909-626
Unavailable
16
Screw
7517610
$1.59
17
Spring, Windshield, RH
7043356
Unavailable
17
Spring, Windshield, LH
7043355
Unavailable
18
O-Ring
5411356
$2.39
19
WASHER
7556113
$4.79
20
Bearing, Spherical
3514566
Unavailable
21
ASM., FAIRING BRACKET,E-COAT
1024169-329
Unavailable
22
ROD-PIVOT,WS
5138358
Unavailable
23
WASHER
7556121
$1.49
24
WSHR-6.4X18.0X1.6 ZPB
7556064
$5.22
25
STUD [SEE STEERING, UPPER AND LOWER CLAMPS]
-------
Unavailable
26
BUSHING, FLANGE
5136907
Unavailable
27
ISOLATOR, FAIRING
5416052
Unavailable
27
ISOLATOR, FAIRING
5416052
Unavailable
28
WASHER
7556260
Unavailable
29
NUT-NYLOCK M8X1.25-Y
7547144
$3.19
30
SCR-HXFL-M6X1.0X25 8.8 RIE
7518576
$3.19
31
BRKT-POWER SUPPLY,ECOAT
1024261-329
Unavailable
