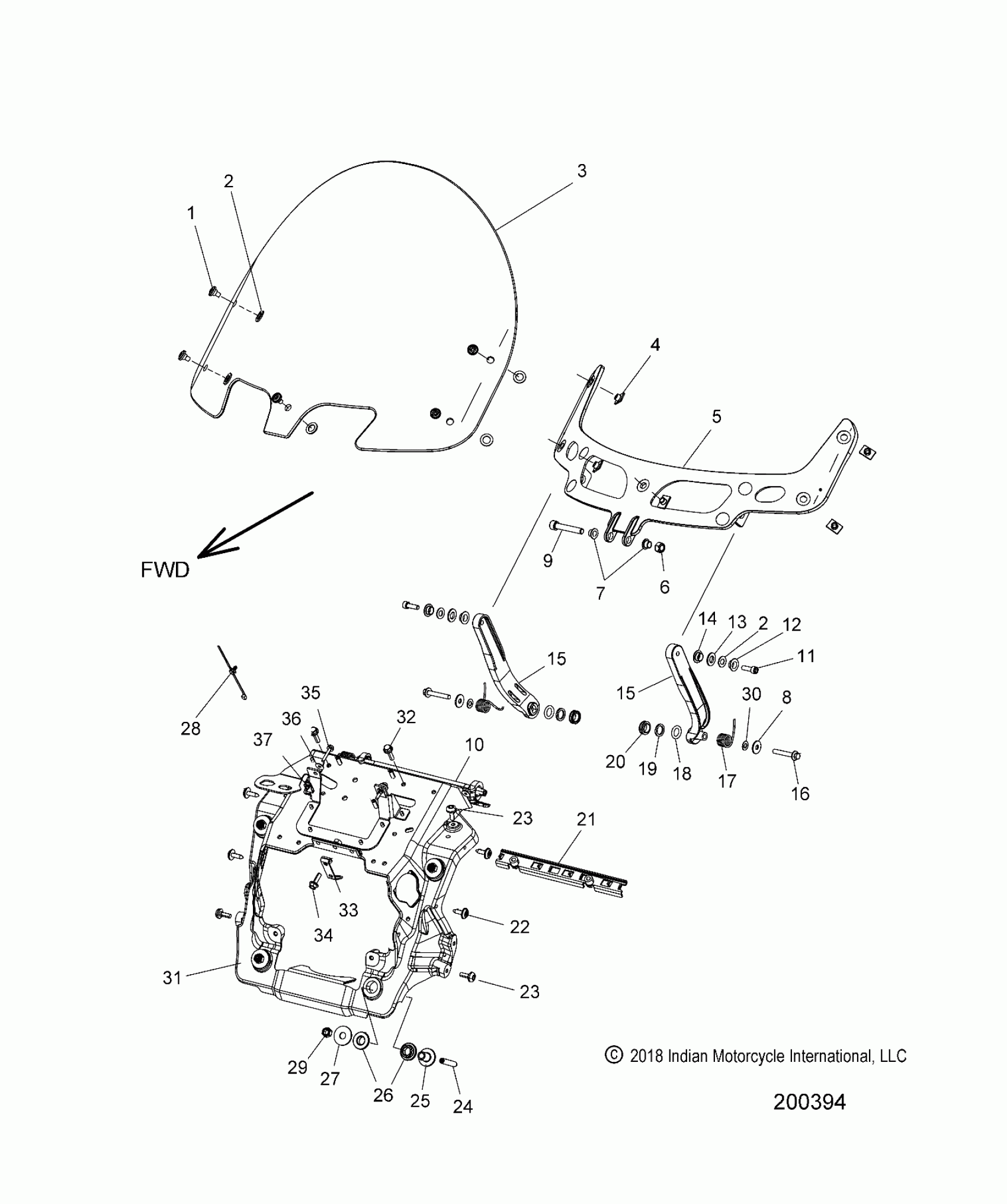

Polaris CHIEFTAIN/CHIEFTAIN LIMITED ALL OPTIONS (R08) - N19TCAAAA1/D/J/T/U/W/B1/DJ/T/U/W/C1/D/J/T/U/W/E1/D/J/T/U/W/BAAAX/BX/CX/EX BODY, FAIRING ASM, WINDSHIELD MOUNT - N19TCBAA/TCAAA ALL OPTIONS (200394) Diagram

#

Description
Price

1

BOLT, SHOULDER,M6x1.0x7MM,9MM NITRIDE [BLK]

7520510

$7.94

2

WSHR-FL,11X18X1.59MM

5813188

Unavailable

2

WSHR-FL,11X18X1.59MM

5813188

Unavailable

3

KIT, WINDSHIELD, SHORT TNTD

2881797-02

$174.99

4

T-NUT

7547300

$1.59

5

SUPPORT, WINDSHIELD

5138467-626

Unavailable

6

NUT

7547454

$2.38

7

BRG-FLANGE,8X10X7MM

3514565

$6.35

8

WSHR-6.4X18.0X1.6 ZPB

7556064

$5.22

9

SCREW

7518013

$6.35

10

ROD,PIVOT, WS

5138358

$48.40

11

SCREW

7517305

$5.22

12

BUSHING, FLANGE

5140871

$9.52

13

WASHER, THRUST

7556832

$7.14

14

FLANGE, BEARING

3514853

$6.35

15

LINK, WINDSHIELD, JTBLK

5138909-626

Unavailable

15

LINK, WINDSHIELD, JTBLK

5138909-626

Unavailable

16

Screw

7517610

$1.59

17

Spring, Windshield, RH

7043356

$8.08

17

Spring, Windshield, LH

7043355

$5.56

18

O-Ring

5411356

$2.41

19

WASHER

7556113

$4.76

20

Bearing, Spherical

3514566

$15.87

21

BRKT-POWER SUPPLY,ECOAT

1024261-329

$84.99

22

SCR-TXTH-M6X1.0X20 T40 ZPB

7519112

$3.17

23

SCR-HXBH,M6X1.0X15,8.8,ZB3

7519774

Unavailable

23

SCR-HXBH,M6X1.0X15,8.8,ZB3

7519774

Unavailable

24

STUD

5142297

$4.76

25

BUSHING, FLANGE

5136907

$9.52

26

BUSHING, RUBBER

5413596

$2.38

27

WASHER

7556260

$10.32

28

CLIP FIR-TREE,DIA6-33MM

7081496

$4.76

29

NUT-NYLOCK M8X1.25-Y

7547144

$3.17

30

WASHER

7556121

$1.19

31

ASM-FAIRING BRKT,E-COAT

1024169-329

$279.99

32

SCR-HXFL-M6X1.0X25 8.8 RIE

7518576

$3.17

33

BRKT-FAIRING HARNESS,ECOAT

5266316-329

$44.51

34

SCR-HXFL-M6X1.0X20 8.8 ZPC

7518141

$4.76

35

SCR-HXBH M4.2X1.4X25 8.8 ZOD

7519309

Unavailable

36

WSHR-4.3X14.0X0.8 ZB

7556477

Unavailable

37

NUT-CLIP,U SPEED,M4.2

7547386

$2.38
