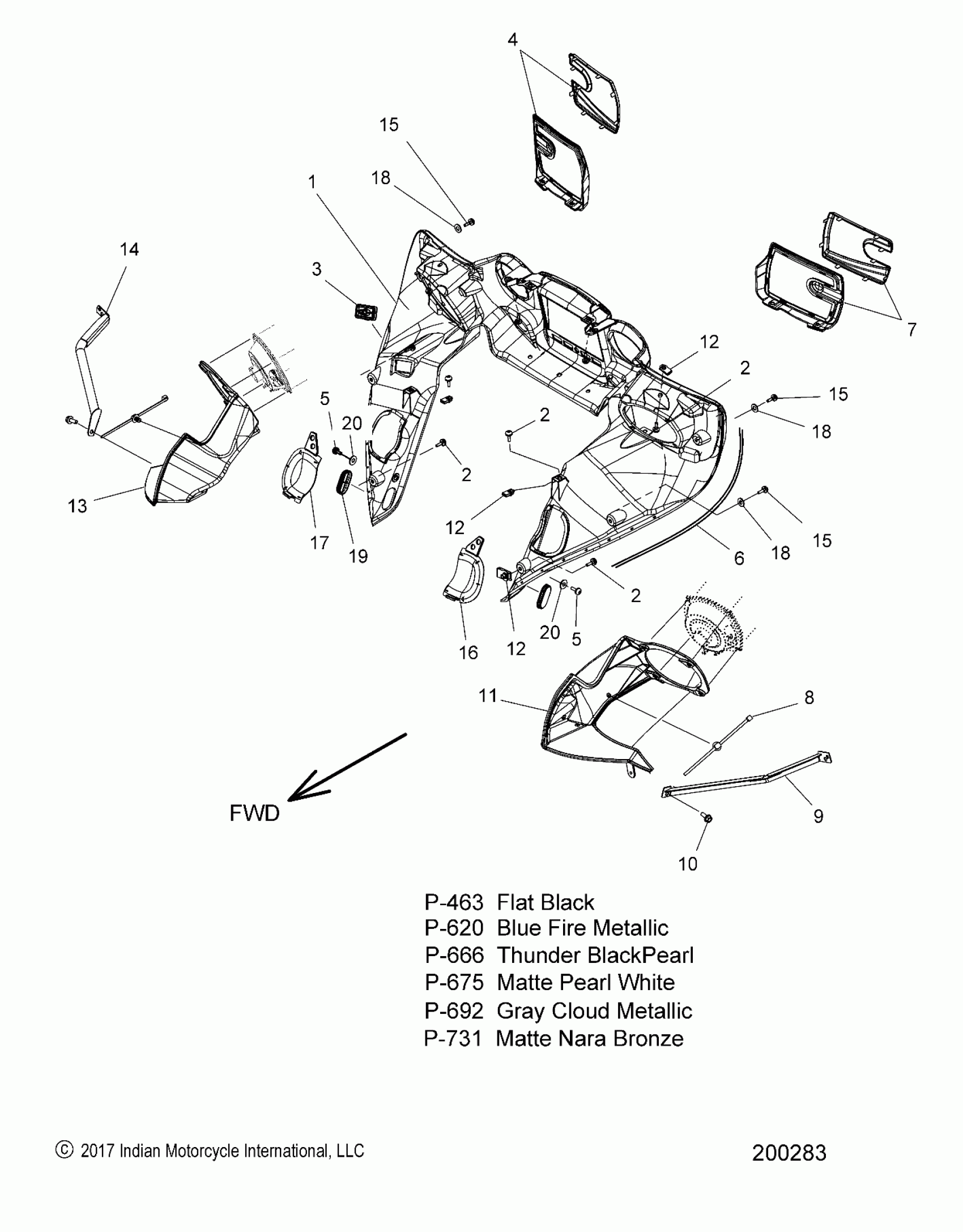

Polaris CHIEFTAIN/CHIEFTAIN LIMITED ALL OPTIONS (R05) - N18TCAAAA1/6/7/9/A/L/T/Z/B1/6/7/9/L/T/C1/6/7/9/L/T/E1/6/7/9/L/T/BAAAX/BX/CX/EX BODY, FAIRING ASM 3 - N18TCAA/TCBA ALL OPTIONS (200283) Diagram

#

Description
Price

1

DASH-TBLK PRL

5452568-666

$1,649.99

1

DASH-CLD GRAY

5452568-692

$1,649.99

1

DASH-WHT SMK

5452568-675

$1,649.99

1

DASH-MT NARA

5452568-731

$1,734.99

1

DASH-BLUFR MET

5452568-620

$1,734.99

2

SCREW

7518518

$1.59

2

SCREW

7518518

$1.59

2

SCREW

7518518

$1.59

2

SCREW

7518518

$1.59

3

PLUG-GARAGE OPENER

5452573

$4.03

4

ASM.-GRILL, SPEAKER, RH, CHROME [INCL. BEZEL AND SCREEN][STD ONLY]

2636061-156

$111.33

4

BEZEL-SPEAKER,RH, CHROME [STD ONLY]

5452572-156

$139.99

4

SCREEN-SPEAKER,RH,FLT BLK [ALL]

5261937-463

$58.08

4

BEZEL-SPEAKER,RH, BLK PRL

5453354-666

$229.99

4

BEZEL-SPEAKER,RH, PRL WHTSMK

5453354-675

$229.99

4

BEZEL-SPEAKER,RH, MT NARA

5453354-731

$194.99

4

BEZEL-SPEAKER,RH, BLUFR MET

5453354-620

$194.99

5

SCREW

7519774

Unavailable

5

SCREW

7519774

Unavailable

6

TRIM-EDGE, DASH

5522231

$32.37

7

ASM.-GRILL, SPEAKER, LH, CHROME [INCL. BEZEL AND SCREEN][STD ONLY]

2636060-156

$106.49

7

BEZEL-SPEAKER,LH, CHROME [STD ONLY]

5452571-156

$139.99

7

SCREEN-SPEAKER,LH,FLT BLK [ALL]

5261936-463

$58.08

7

BEZEL-SPEAKER,LH, PRL WHT SMK

5453353-675

$229.99

7

BEZEL-SPEAKER,LH, BLK PRL

5453353-666

$229.99

7

BEZEL-SPEAKER,LH, MT NARA

5453353-731

$194.99

7

FILM-PROTECTION, CLEAR [LH PAINTED SPEAKER BEZEL ONLY]

5814472

$6.46

7

BEZEL-SPEAKER,LH, BLUFR MET

5453353-620

$194.99

8

CLIP FIR-TREE,DIA6-33MM

7081496

$4.76

9

BRKT., SUPPORT, FAIRING, LH

5262620-329

$58.08

10

SCREW

7518591

$3.79

11

VOLUME, SPEAKER, LH

5451168

$87.13

12

NUT, CLIP, U SPEED

7547386

$2.38

12

NUT, CLIP, U SPEED

7547386

$2.38

12

NUT, CLIP, U SPEED

7547386

$2.38

13

VOLUME, SPEAKER, RH

5451169

$87.13

14

BRKT., SUPPORT, FAIRING, RH, BLK

5261480-329

$58.08

15

SCREW

7519309

Unavailable

15

SCREW

7519309

Unavailable

15

SCREW

7519309

Unavailable

16

COVER, DRIVING LIGHT, LH, TBLK PRL

5452784-666

$174.99

16

COVER, DRIVING LIGHT, LH, PRL WHTSMK

5452784-675

$174.99

16

COVER, DRIVING LIGHT, LH, CLD GRAY

5452784-692

$174.99

16

COVER, DRIVING LIGHT, LH, MT NARA

5452784-731

$174.99

16

COVER, DRIVING LIGHT, LH, BLUFR MET

5452784-620

$174.99

17

COVER, DRIVING LIGHT, RH, CLD GRAY

5452785-692

$174.99

17

COVER, DRIVING LIGHT, RH, TBLK PRL

5452785-666

$174.99

17

COVER, DRIVING LIGHT, RH, PRL WHTSMK

5452785-675

$174.99

17

COVER, DRIVING LIGHT, RH, MT NARA

5452785-731

$174.99

17

COVER, DRIVING LIGHT, RH, BLUFR MET

5452785-620

$164.99

18

WASHER

7556477

Unavailable

18

WASHER

7556477

Unavailable

18

WASHER

7556477

Unavailable

19

COVER-WIND DEFLECTOR

5452801

$1.59

20

WASHER

7556305

$1.19

20

WASHER

7556305

$1.19
