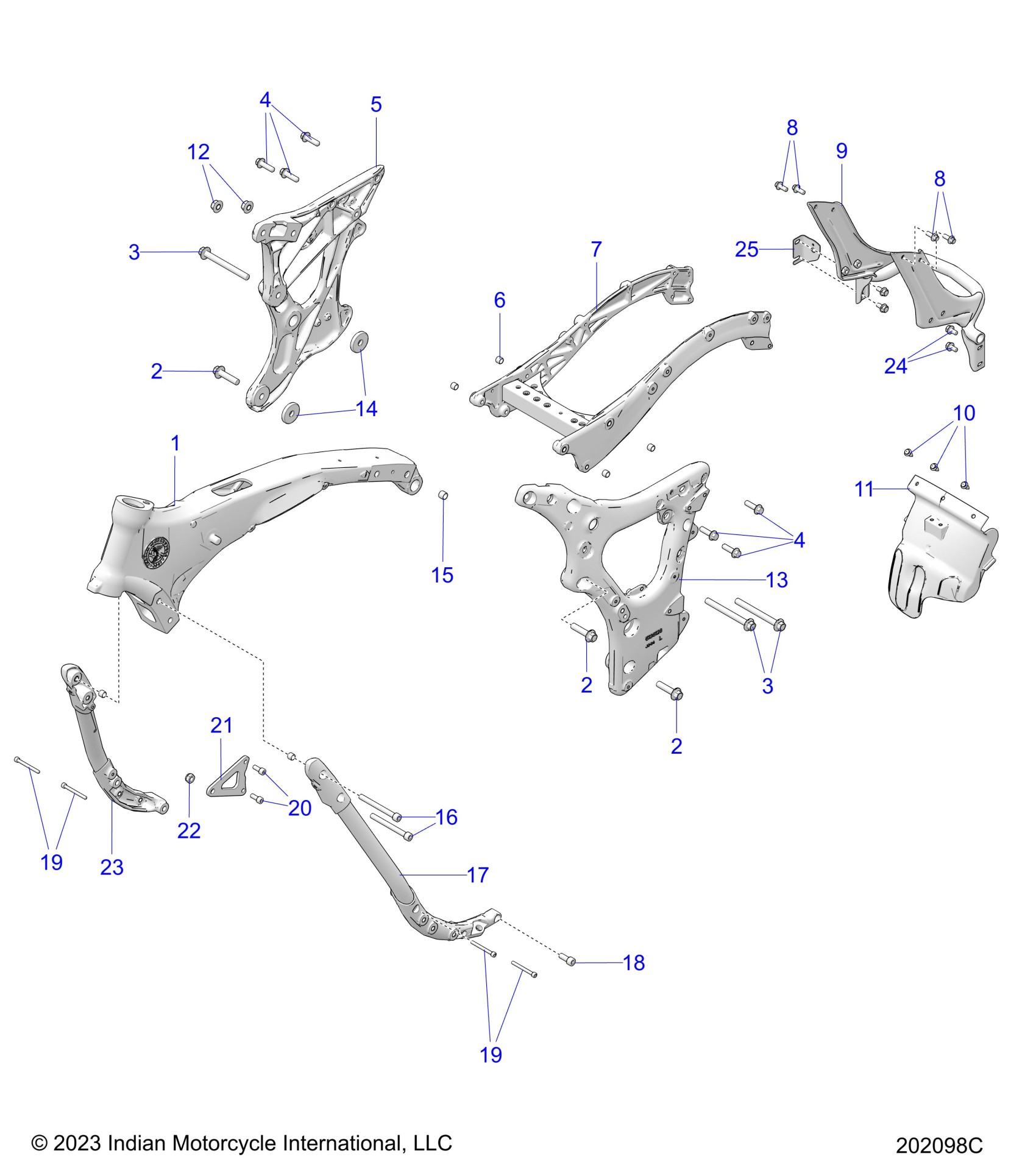

Polaris CHIEFTAIN 116 ALL OPTIONS (R01) - N24TCBBBEA CHASSIS, FRAME ASM. - N24TCBBB ALL OPTIONS (202098C) Diagram

#

Description
Price

1

MAINFRAME-FRT,TOUR,25DEG,JBLK

5143586-626

$1,459.99

2

SCR-HXFL-M12X1.75X50 10.9 ZFB

7521334-50

$6.35

2

SCR-HXFL-M12X1.75X50 10.9 ZFB

7521334-50

$6.35

2

SCR-HXFL-M12X1.75X50 10.9 ZFB

7521334-50

$6.35

3

SCREW-HXFL-M12X1.75X120

7519794

$28.49

3

SCREW-HXFL-M12X1.75X120

7519794

$28.49

4

SCREW-M10X1.50X35 HX/FL-Y/D

7518334

$4.76

4

SCREW-M10X1.50X35 HX/FL-Y/D

7518334

$4.76

5

CAST-FRAME,MID,RH,E-COAT�

5143588-329

$799.99

6

DWL-HOL,M13X10,0600089

7663008

$5.99

7

WELD-SUBFRAME,REAR

1024782

$904.99

8

SCR-HXFL-M8X1.25X20 10.9 ZPB

7517838

$4.35

8

SCR-HXFL-M8X1.25X20 10.9 ZPB

7517838

$4.35

9

FRAME,REAR,LOWER,E-COAT

1024636-329

$269.99

10

RIVET-TUFLOK,.315-.325X.787

7661855

$1.19

11

SHIELD, DEBRIS

5453702

$33.87

12

NUT-HXFL-M12X1.75,CL10,ZB

7547686

$4.76

13

CAST-FRAME,MID,LH,E-COAT

5143587-329

$839.99

14

SPACER, FRAME

5138436

$6.35

15

DOWEL-HOLLOW, M12

7662129

$10.32

16

SCR-SHCS-M10X1.5X100

7519793

$28.56

17

ASM.,TUBE FRAME,LH,BLACK

1026128-626

Unavailable

18

SCREW-SH-M10X1.5X25 8.8 ZPB

7519890

$4.76

19

SCR-SH-M10X1.5X60 10.9 ZPB

7528299

$3.97

19

SCR-SH-M10X1.5X60 10.9 ZPB

7528299

$3.97

20

SCREW-SH-M8X1.25X20 8.8 ZPB D204

7517410

$10.99

21

BRACKET, ENGINE

5257184

$36.41

22

NUT-HEX-M10X1.5 8 ZB3 NYL

7547658

$1.59

23

ASM., TUBE FRAME, RH, BLACK

1018970-626

$309.99

24

BRACKET, ANTENNA

5258057

$11.32

25

SCREW-HXFL-M8X1.25X16 8.8 ZPC

7519005

$3.97
