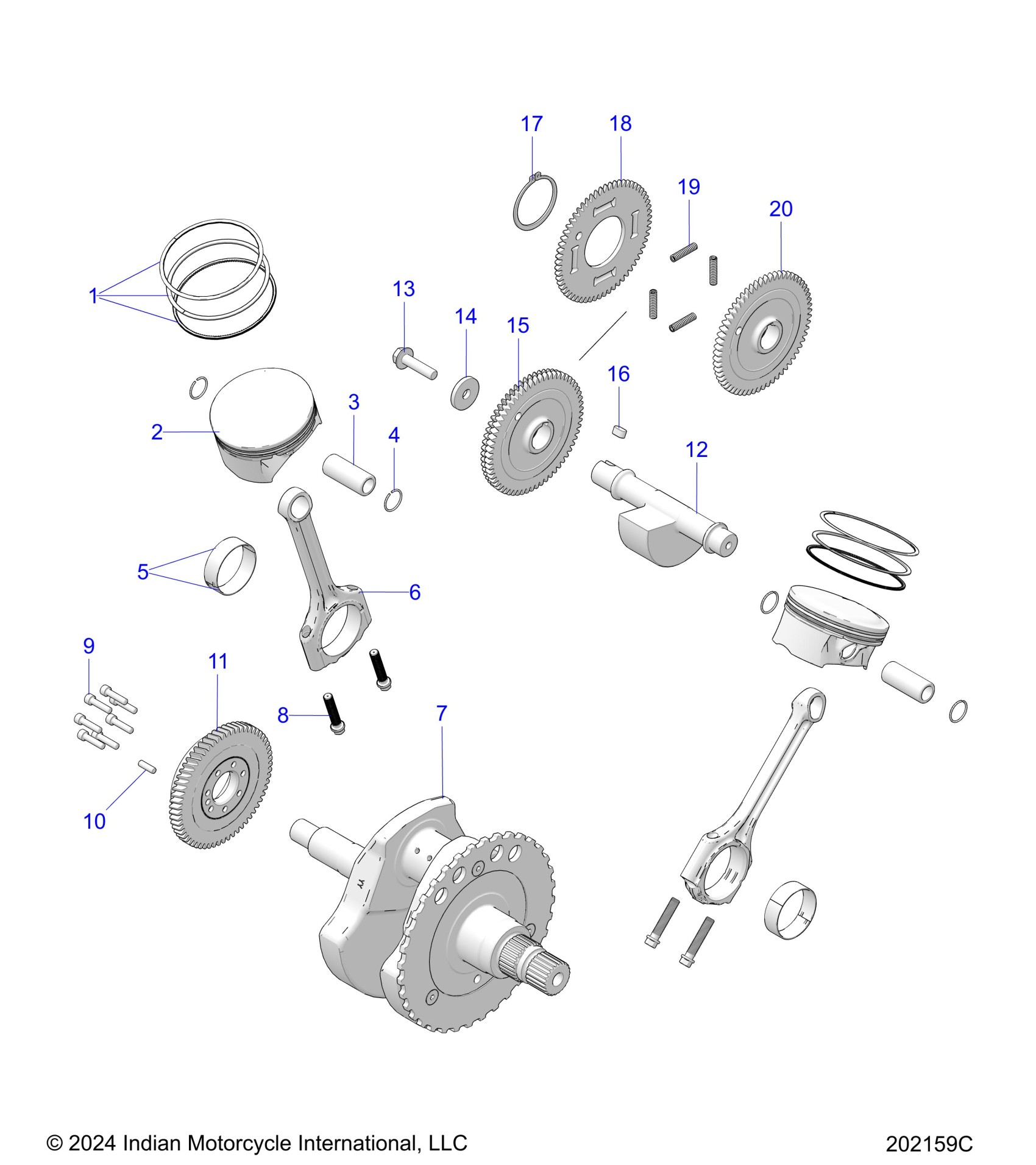

Polaris CHIEFTAIN 111 ALL OPTIONS (R02) - N25TCBAAAA/BA/CA ENGINE, PISTON and CRANKSHAFT - N25TCBAA ALL OPTIONS (202159C) Diagram

KIT, RINGS, PISTON [1 SET OF 3]

2203006

$66.65

ASM., PISTON [INCL. 1-4]

3023065

$183.32

PIN, PISTON,22MM

3023067

$44.99

RING-RTNG,RND,22.0X1.6,0600102

7710479

$7.14

BEARING, CONNECTING ROD, 52MM, BLK.

3515097-001

$23.81

BEARING, CONNECTING ROD, 52MM, ORG.

3515097-002

$23.81

BEARING, CONNECTING ROD, 52MM, BLU

3515097-003

$23.81

ASM., CONNECTING ROD,184MM [INCL. BOLTS]

3023483

$254.98

ASM-CRANKSHAFT,56.5MM [INCL. TIMING RING]

3024384

$1,329.99

RING-TIMING [TIMING RING ONLY]

3024387

$54.99

SCR-FLHD-M8X1.25X16 12.9 P&O [SCREW ONLY]

7527981

$3.17

BOLT-CONROD MJ9X1.0X44

7520356

$23.81

SCREW-SH-M6X1.0X25 10.9 ZPC D204

7518995

$5.56

PIN, DOWEL 6 X 20

3234330

$7.14

GEAR-BALANCER, DRIVE

6237721

$261.41

SHAFT-BALANCE,MACH

5144258

$104.99

SCREW-HXFLM10X1.5X40,10.9,P&OP80

7519763

$5.56

WASHER, CAM RETAINING

7556871

$7.14

ASM-GEAR,BALANCE SHAFT [INCL. 17-20]

1336998

$275.94

KEY

7710708

$6.46

RING, RETAINING

7710791

$2.38

GEAR, BLANCE SHAFT, BLASH

6230806

$164.99

SPRING, SPLIT GEAR [NOT AVAILABLE: MUST ORDER ASM 1333423]

----

Unavailable

GEAR, BALANCE SHAFT

6230805

$275.94
