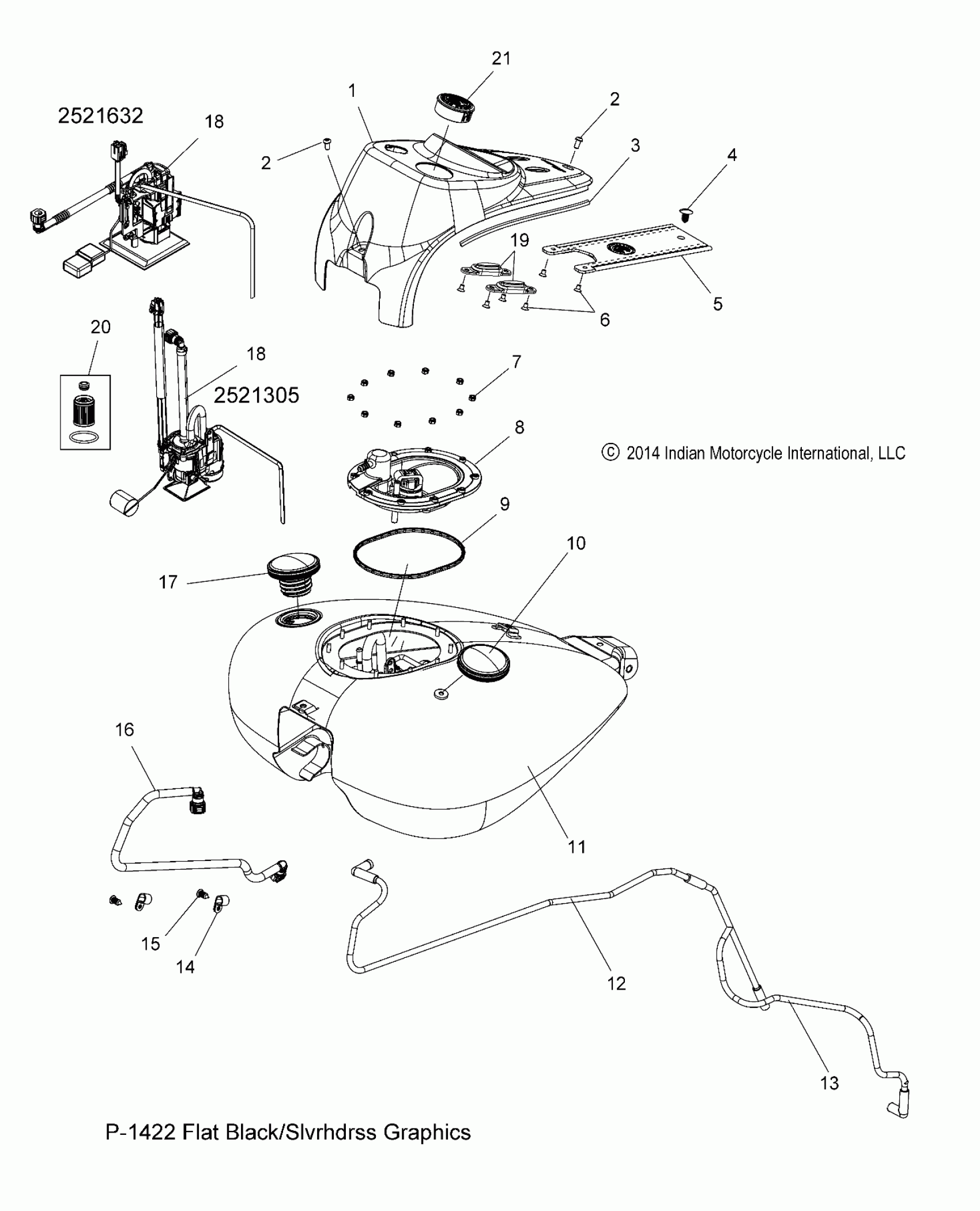

Polaris CHIEF DARK HORSE ALL OPTIONS (R02) - N16CCDAAAH/BH/CH/EH FUEL SYSTEM, FUEL TANK ASM. - N16CCDAA ALL OPTIONS (49INDIANFUELTANK16DH) Diagram

#

Description

Price

-

K-SVC GRAPHICS, TANK, SILVER HEADDRESS [WETSLIDE FOR UNPAINTED MODEL]

2206123

Unavailable

1

CONSOLE, TANK, NON FAIRING, JET BLACK [BUILT 4/10/15 AND AFTER]

5633355-626

Unavailable

1

CONSOLE, TANK, NON FAIRING, FLAT BLACK [BUILT 4/9/15 AND BEFORE]

5633355-463

Unavailable

2

SCREW

7519000

Unavailable

2

SCREW

7519000

Unavailable

3

TRIM, EDGE, CONSOLE, 472MM

8360134

Unavailable

3

TRIM, EDGE, CONSOLE, 450MM

8360133

Unavailable

4

CLIP-PLASTIC DART, NYLON

7670088

$1.59

5

STRAP, FUEL TANK, VINYL, BLACK

2686413

Unavailable

6

SCREW

7519876

Unavailable

7

NUT-M5X.8,HX NYL-Y

7546601

$1.49

8

ASM., FUEL ACCESS

2521374

Unavailable

9

SEAL, FUEL

5414514

Unavailable

10

CAP, FUEL, DUMMY, CHROME

5138538-156

Unavailable

11

TANK, FUEL

1018972-1422

Unavailable

12

LINE, VENT TO GROUND, UPPER

5439857

Unavailable

13

LINE, VENT TO GROUND, LOWER

5439858

Unavailable

14

CLAMP, CABLE

7081900

Unavailable

15

CLIP, XMAS TREE

7661953

$1.49

16

LINE, FUEL

5414515

Unavailable

17

CAP, FUEL, CHROME

5138508-156

Unavailable

18

ASM., FUEL PUMP, SENDER [VIN 56KTRAAA8G3333873 AND AFTER]

2521632

Unavailable

18

ASM., FUEL PUMP, SENDER [INCL. PUMP, FILTER, SENDER]

2521305

Unavailable

18

ASM., FUEL PUMP, SENDER [VIN 56KTRAAA8G3333873 AND AFTER]

2521632

Unavailable

18

ASM., FUEL PUMP, SENDER [INCL. PUMP, FILTER, SENDER]

2521305

Unavailable

19

PLUG, CONSOLE, BLACK

5451070-070

Unavailable

20

KIT, FUEL FILTER [INCL. FILTER, SEAL, O-RING][FOR 2521305 ONLY]

2205389

Unavailable

21

PLUG, FUEL GAUGE

5451840

Unavailable
