Partiron

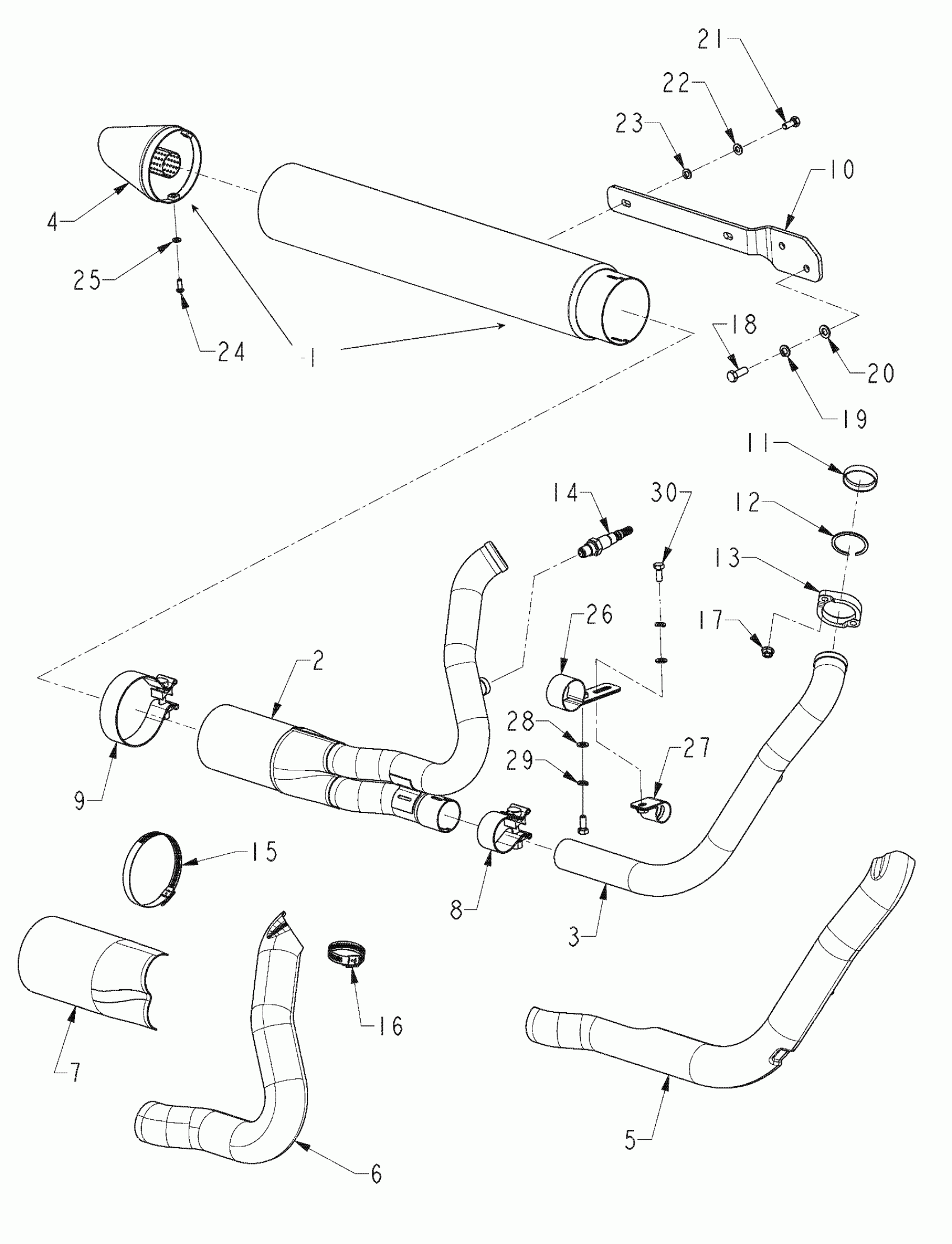

Polaris CHIEF CLASSIC/VINTAGE/DARK HORSE ALL OPTIONS - N121C/V/D ENGINE, EXHAUST SYSTEM - N121C/V/D ALL OPTIONS (INDIANEXHAUST12CC) Diagram

#

Description
Price

1

Asm., Muffler, w/Tip, Matte BLK [Dark Horse]

N50700043

$1,074.99

1

Asm., Muffler, w/Tip, CHR [Classic, Vintage]

N50700037

$3,164.99

2

Asm., Common Volume

N50700018

$609.51

3

Asm., Headpipe, Front

N50700027

$177.13

4

Asm., OE Muffler Tip, Matte Blk [Dark Horse]

N50700044

$275.22

4

Asm., OE Muffler Tip [Classic, Vintage]

N50700024

$337.30

5

Asm., Heat Shield, Front, Matte Blk [Dark Horse]

N50700041

$490.46

5

Asm., Heat Shield, Front [Classic, Vintage]

N50700028

$461.89

6

Asm., Heat Shield, Rear, Matte Blk [Dark Horse]

N50700047

$395.22

6

Asm., Heat Shield, Rear [Classic, Vintage]

N50700029

$454.99

7

Aam., Heat Shield, CV, Matte Blk [Dark Horse]

N50700048

$395.22

7

Asm., Heat Shield, CV [Classic, Vintage]

N50700020

$284.75

8

Clamp, Headpipe, Front, 48.5mm

N73137411

Unavailable

9

Clamp, Muffler, 100mm

N73137507

$38.71

10

Brkt., Muffler

N50737522

$58.08

11

Gasket, Exhaust

N50701319

$12.37

12

Ring, Snap, Exhaust

N50737164

$4.75

13

Flange, Exhaust

N50737026

Unavailable

14

SENSOR-LAMBDA,LSF 4.2

4011853

$140.38

15

Clamp, Worm Drive, 108mm

N73137512

Unavailable

16

Clamp, Worm Drive, 51mm

N50700003

Unavailable

17

Nut, Flange

N70300006

$0.94

18

Screw

N70196173

$4.75

19

Washer, Lock

N70496904

Unavailable

20

Washer, Flat, Type B-N

N70496895

Unavailable

21

Screw

N70100055

Unavailable

22

Washer

N70400009

Unavailable

23

Washer, Lock

N70400015

Unavailable

24

Screw

N70196231

Unavailable

24

Screw

N70100096

Unavailable

25

Washer, Chrome

N70400008

Unavailable

25

Washer, Z/B

N70400063

Unavailable

26

Brkt., Headpipe, Front

N50700034

$46.08

27

Brkt., Headpipe, Frame, Front

N50700035

$37.32

28

Washer

N70400009

Unavailable

29

Washer, Lock

N70400015

Unavailable

30

Screw

N70100055

Unavailable
