- CHIEF CLASSIC/CHIEF VINTAGE/CHIEFTAIN ALL OPTIONS - N14CCC/CCV/TCA
BODY, FAIRING ASM, WINDSHIELD MOUNT - N14TCA ALL OPTIONS (49INDIANWINDSHIELD14TOUR)

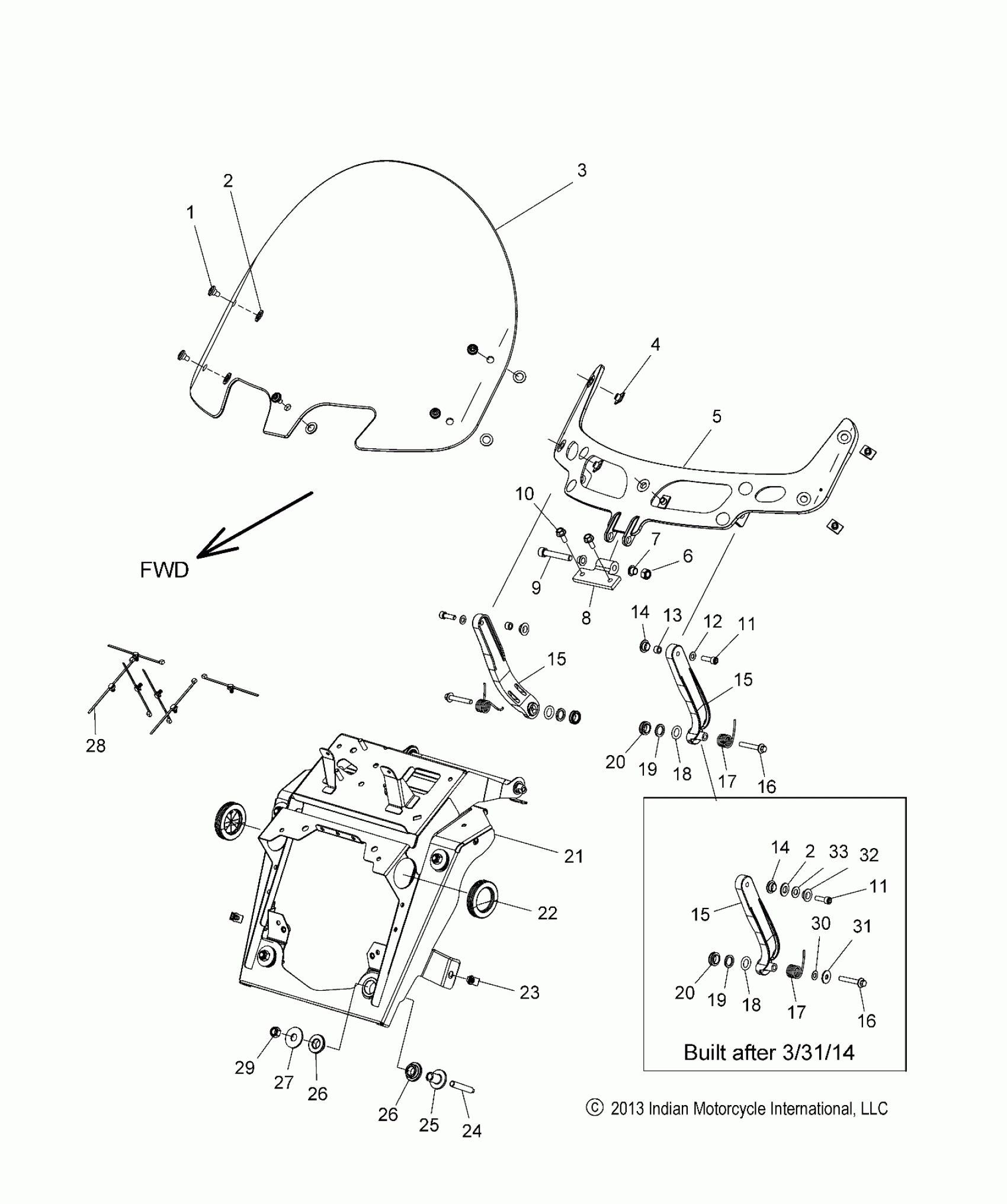

Polaris CHIEF CLASSIC/CHIEF VINTAGE/CHIEFTAIN ALL OPTIONS - N14CCC/CCV/TCA BODY, FAIRING ASM, WINDSHIELD MOUNT - N14TCA ALL OPTIONS (49INDIANWINDSHIELD14TOUR) Diagram
#
1
BOLT, SHOULDER
7518788
Unavailable
2
WSHR-FL,11X18X1.59MM
5813188
$1.19
2
WSHR-FL,11X18X1.59MM
5813188
$1.19
3
KIT, WINDSHIELD, MID
2879895
Unavailable
3
WINDSHIELD, FAIRING, MED.
5439903
Unavailable
4
T-NUT
7547300
$1.59
5
SUPPORT, WINDSHIELD
5138467-626
Unavailable
6
NUT
7547454
Unavailable
7
BRG-FLANGE,8X10X7MM
3514565
Unavailable
8
CLEVIS, WINDSHIELD
5138466
Unavailable
9
SCREW
7518013
Unavailable
10
SCREW
7518591
$3.73
11
SCREW
7517305
$4.79
11
SCREW
7517305
$4.79
12
WASHER
7556121
$1.49
13
SPACER
5138468
Unavailable
14
BEARING, FLANGE
3514853
Unavailable
14
BEARING, FLANGE
3514853
Unavailable
15
LINK, WINDSHIELD
5138909
Unavailable
15
LINK, WINDSHIELD
5138909
Unavailable
15
LINK, WINDSHIELD
5138909
Unavailable
16
Screw
7517610
$1.59
16
Screw
7517610
$1.59
17
Spring, Windshield, RH
7043356
Unavailable
17
Spring, Windshield, LH
7043355
Unavailable
17
Spring, Windshield, RH
7043356
Unavailable
17
Spring, Windshield, LH
7043355
Unavailable
18
O-Ring
5411356
$2.39
18
O-Ring
5411356
$2.39
19
WASHER
7556113
$4.79
19
WASHER
7556113
$4.79
20
Bearing, Spherical
3514566
Unavailable
20
Bearing, Spherical
3514566
Unavailable
21
ASM., SUPPORT, FAIRING
1020360
Unavailable
22
GROMMET-ELEC,CAB,SLIT
5415049
$3.99
23
CLIP-U SPEED NUT
7081305
$1.99
24
STUD
5137389
Unavailable
25
BUSHING, FLANGE
5136907
Unavailable
26
BUSHING, RUBBER
5413596
Unavailable
26
BUSHING, RUBBER
5413596
Unavailable
27
WASHER
7556260
Unavailable
28
CLIP FIR-TREE,DIA6-33MM
7081496
$4.79
29
NUT-NYLOCK M8X1.25-Y
7547144
$3.19
30
WASHER
7556121
$1.49
31
WSHR-6.4X18.0X1.6 ZPB
7556064
$5.22
32
BUSHING, FLANGE
5139391
Unavailable
33
WASHER, THRUST
7556832
Unavailable
