Partiron

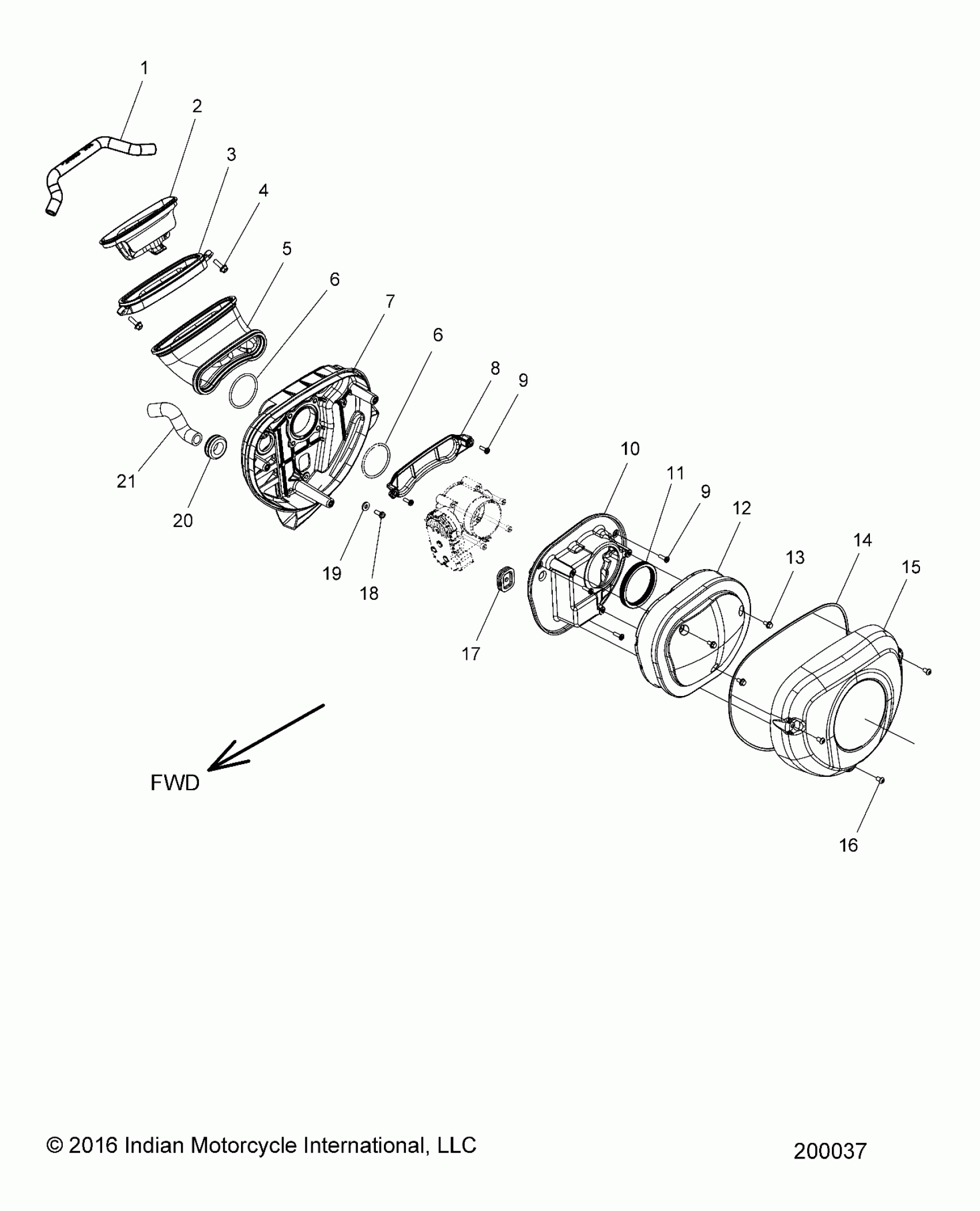

Polaris CHIEF CLASSIC/CHIEF VINTAGE ALL OPTIONS (R03) - N16CCC/CCV ENGINE, AIR INTAKE SYSTEM - N16CCC/CCV ALL OPTIONS (200037) Diagram

#

Description
Price

1

HOSE, BREATHER LINK

5414939

$64.75

2

INSERT, AIRBOX CONNECTOR

5450308

$20.22

3

CONNECTOR, AIR BOX, CAST

5632801

$38.71

4

SCREW

7518141

$4.76

5

CONNECTOR, AIR BOX

5414662

$67.76

6

GASKET, THROTTLE BODY

5813886

$5.56

6

GASKET, THROTTLE BODY

5813886

$5.56

7

BASE, AIRBOX

5415270

$129.99

8

RETAINER, AIR BOX CONNECTOR

1204747

$32.37

9

SCREW

7518238

$3.97

9

SCREW

7518238

$3.97

10

RETAINER PLATE, AIR FILTER

1204919

$97.13

11

SEAL, FILTER RETAINER PLATE

5414749

$15.87

12

AIR FILTER

5813976

$30.54

13

Screw

7517795

$4.76

14

SEAL, AIR BOX

5414783

$5.56

15

COVER, AIR BOX, CHROME

5257830-156

$387.29

16

SCREW

7517406

$4.76

17

GROMMET

5414802

$3.97

18

SCREW

7518548

$1.59

19

WASHER

7556485

$4.76

20

GROMMET

5414663

$4.76

21

BREATHER HOSE

5450006

$36.41
