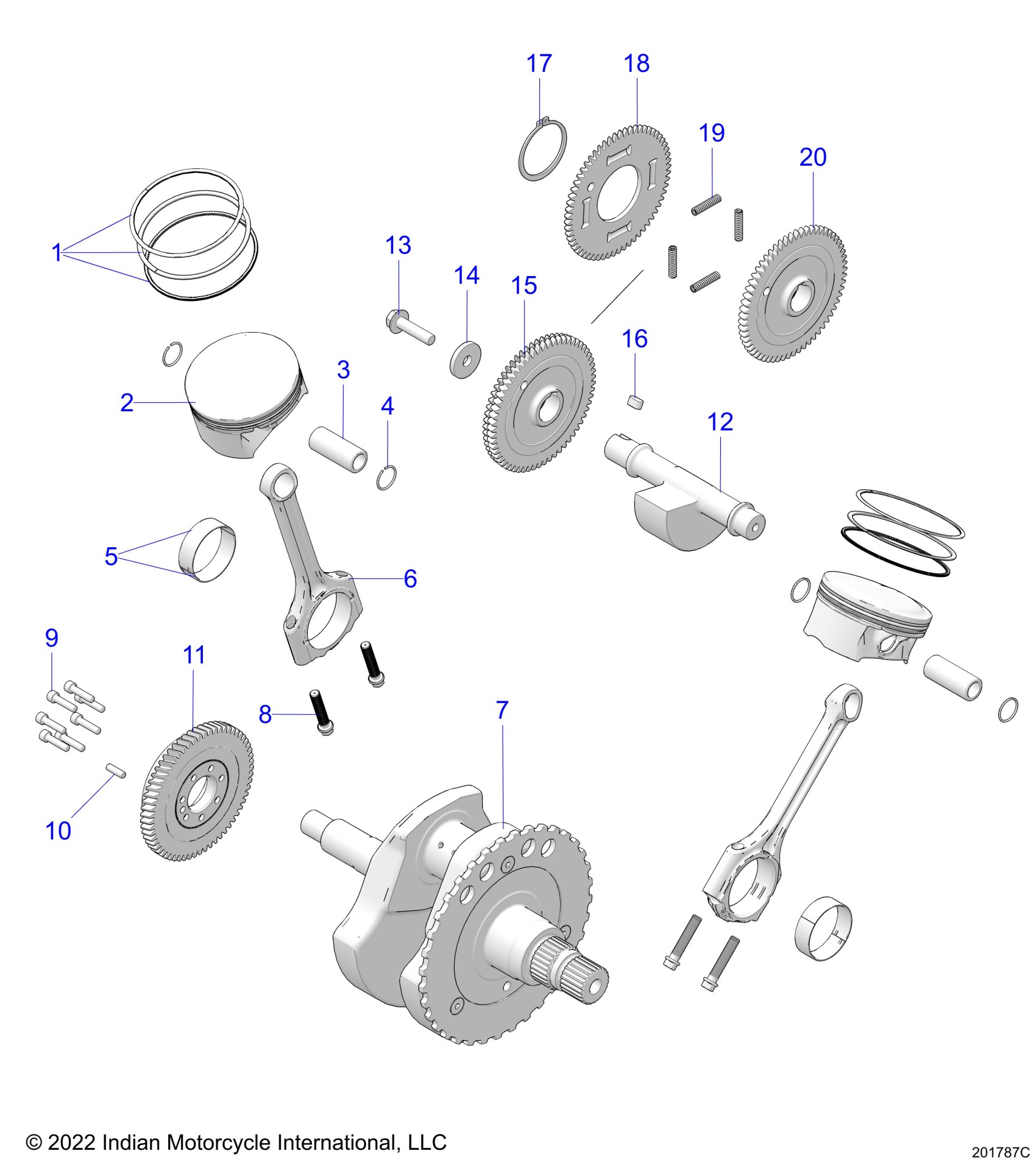

Polaris CHIEF BOBBER DARK HORSE 116 ALL OPTIONS (R01) - N24DLDBHAC/H/K/S/BC/H/K/S/CC/H/K/S/EC/H/K/S/JC/H/K/S/GBHPC/H/K/S ENGINE, PISTON and CRANKSHAFT - N24DLDBH/DLGBH ALL OPTIONS (201787C) Diagram

#

Description

Price

1

K-PISTON RINGS [1 SET OF 3]

2208507

Unavailable

2

ASM., PISTON [INCL. 1-4]

3023066

Unavailable

3

PIN-PISTON,22MM

3023324

Unavailable

4

RING-RTNG,RND,22.0X1.6,0600102

7710479

$7.19

5

BEARING, CONNECTING ROD, 52MM, BLK.

3515097-001

Unavailable

5

BEARING, CONNECTING ROD, 52MM, ORG.

3515097-002

Unavailable

5

BEARING, CONNECTING ROD, 52MM, BLU

3515097-003

Unavailable

6

ASM., CONNECTING ROD,184MM [INCL. BOLTS]

3023483

Unavailable

7

ASM-CRANKSHAFT,56.5MM [INCL. TIMING RING]

3024029

Unavailable

7

RING,TIMING [TIMING RING ONLY]

3024066

Unavailable

7

SCR-FLHD-M8X1.25X16 12.9 P&O [SCREWS ONLY]

7527981

Unavailable

8

BOLT-CONROD MJ9X1.0X44

7520356

$23.99

9

SCREW-SH-M6X1.0X25 10.9 ZPC D204

7518995

$5.59

10

PIN, DOWEL 6 X 20

3234330

$7.19

11

GEAR-BALANCER, DRIVE

6237721

Unavailable

12

SHAFT-BALANCE,MACH

5144258

Unavailable

13

SCREW-HXFLM10X1.5X40,10.9,P&OP80

7519763

Unavailable

14

WASHER, CAM RETAINING

7556871

Unavailable

15

ASM-GEAR,BALANCE SHAFT [INCL. 17-20]

1336998

Unavailable

16

KEY

7710708

Unavailable

17

RING-RTNG,EXT,55MM

7718426

Unavailable

18

GEAR-BAL SHAFT,BLASH [NOT AVAILABLE: MUST ORDER ASM 1336998]

-------

Unavailable

19

SPRING, SPLIT GEAR [NOT AVAILABLE: MUST ORDER ASM 1336998]

-------

Unavailable

20

GEAR-BALANCER SHAFT

6237714

Unavailable
