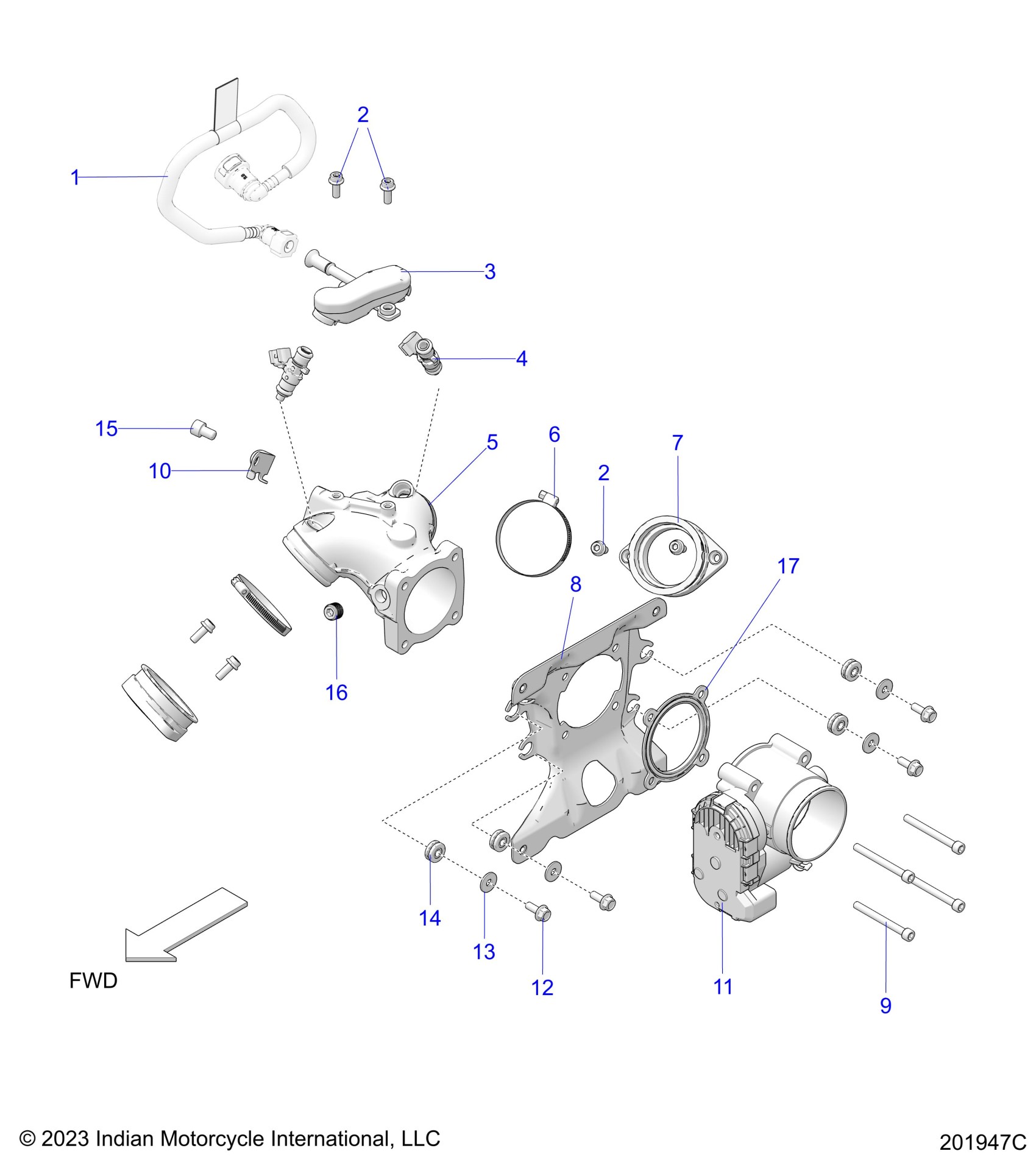

Polaris CHIEF BOBBER 111 ALL OPTIONS (R01) - N24DLBAGA6/A/J/B6/A/J/C6/A/J/CAGA6/A/J/B6/A/J/C6/A/J FUEL SYSTEM, FUEL CLAM SHELL/THROTTLE BODY - N24DLBAG/DLCAG ALL OPTIONS (201947C) Diagram

LINE-FUEL [SEE FUEL TANK ASM]

-------

Unavailable

SCREW-SOCFLGHD,M6X1.0X16

7518803

$3.99

SCREW-SOCFLGHD,M6X1.0X16

7518803

$3.99

ASM., CLAMSHELL, FUEL

2521767

Unavailable

O-RING, BOSCH, E10076 (1 PER INJECTOR)

5412891

$1.49

O-RING-BOSCH,EV-14,UPPER, BLUE (BLUE)(1 PER INJECTOR)

1500198

$11.99

INJECTOR, FUEL

2521332

Unavailable

MANIFOLD-INTAKE,MACH

5144051

Unavailable

CLAMP, NARROW

7082021

Unavailable

ADAPTOR, INTAKE MANIFOLD

1204709

Unavailable

BRKT,AIRBOX SUPPORT,E-COAT

5268465-329

Unavailable

SCREW-SH-M6X1.0X60 8.8 ZPC

7517270

$3.99

BRACKET-STAY,ELEC HRNS

5910682

Unavailable

ASM., THROTTLE BODY

1204685

Unavailable

SCREW-HXFL-M6X1.0X16 8.8 ZPB

7518591

$3.73

WSHR-6.4X18.0X1.6 ZPB

7556064

$5.22

ISOLATOR

5414603

Unavailable

SCREW-SH-M8X1.25X12 8.8 ZPB

7521050

Unavailable

PLUG-HEX SOCKET,1/4X18,SEALANT

7518835

$5.59

GASKET,AIRBOX

5634512

Unavailable
