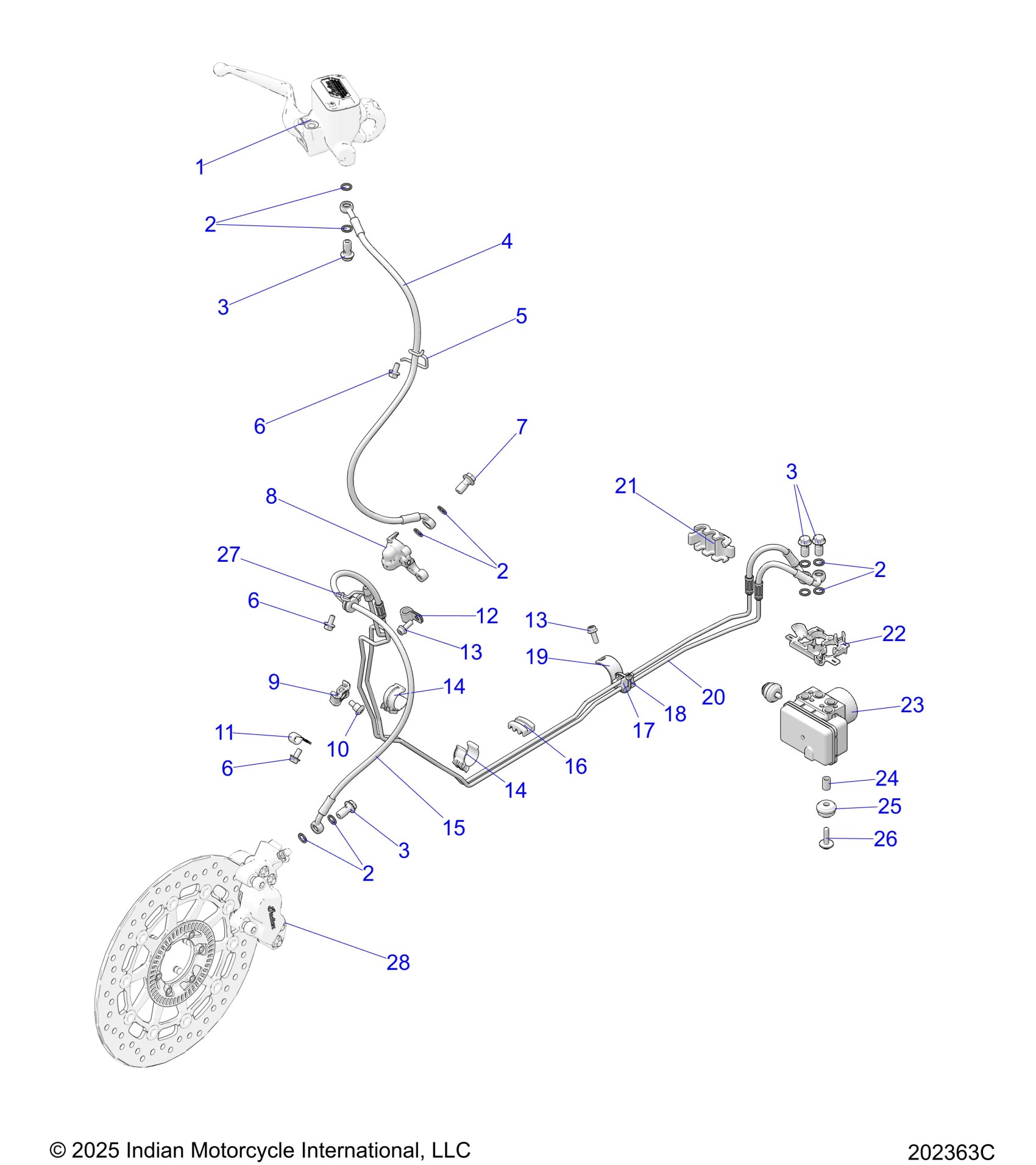

Polaris CHIEF 111 ALL OPTIONS (R01) - N26DMBAGAA/BA/CA BRAKES, FRONT ASM., W/ABS - N26DMBAG (202363C) Diagram

#

Description
Price

1

ASM.-MASTER CYL., FRONT [SEE BRAKES, MASTER CYLINDER, FRONT]

----

Unavailable

2

WASHER-CRUSH, RIB, M10

1913793

Unavailable

2

WASHER-CRUSH, RIB, M10

1913793

Unavailable

2

WASHER-CRUSH, RIB, M10

1913793

Unavailable

2

WASHER-CRUSH, RIB, M10

1913793

Unavailable

3

BOLT-BANJO, 10MM X 1.25-6G

1910958

$7.94

3

BOLT-BANJO, 10MM X 1.25-6G

1910958

$7.94

3

BOLT-BANJO, 10MM X 1.25-6G

1910958

$7.94

4

HOSE-BRAKE,HBMC,SHORT

1913624

$64.75

5

WIREFORM-GUIDE,ROUTING

5342696

$7.27

6

SCR-HXFL-M6X1.0X12 8.8 ZPB

7517704

$7.84

6

SCR-HXFL-M6X1.0X12 8.8 ZPB

7517704

$7.84

6

SCR-HXFL-M6X1.0X12 8.8 ZPB

7517704

$7.84

7

BOLT-BANJO,M10X1.25

1912827

$10.32

8

MANIFOLD-BRAKE,FRONT

5145722

$67.76

9

RETAINER-LINE,BRAKE,DOWN

5457188

$3.97

10

SCREW-M6X1.0X16 SHLD ZPB

7521068

$3.17

11

CLAMP-REAR BRAKE

7080983

$4.35

12

CLAMP-HOSE,.375DIA,VINYL COAT

7081472

$3.97

13

SCREW-SOCFLGHD,M6X1.0X16

7518803

$3.97

13

SCREW-SOCFLGHD,M6X1.0X16

7518803

$3.97

14

RETAINER-LINE,BRAKE,BOSS

5457189

$6.46

14

RETAINER-LINE,BRAKE,BOSS

5457189

$6.46

15

LINE-BRAKE,ABS-FRCAL

1913622

$145.70

16

CLIP, RETENTION

5450640

$23.81

17

CLIP-RETEN,REAR

5457404

$4.76

18

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

19

BRKT-BRKLIN,REAR

5269880

$84.99

20

LINE-BRAKE,ABS-MANIFOLD

1913623

$129.51

21

RETAINER,BRKLINE,ABS

5456482

$8.89

22

BRKT-ORIENTATION,ABS

5458218

$11.32

23

MODULE-ABS,MP9.3,WET [DEALER INSTALL REQUIRED]

1914738

$849.99

24

COLLAR-ABS,10 OD,7 ID,15 LONG

5136840

$2.38

25

GROMMET, MOUNT, ABS

5413711

$3.17

26

SCREW-HH-M6X1.0X25 8.8 ZPC SPC

7519089

$3.97

27

WIREFORM-BRAKELINE,FR

5345215

$8.89

28

BRAKE CALIPER, FRONT SEE BRAKES, CALIPER, FRONT

----

Unavailable
