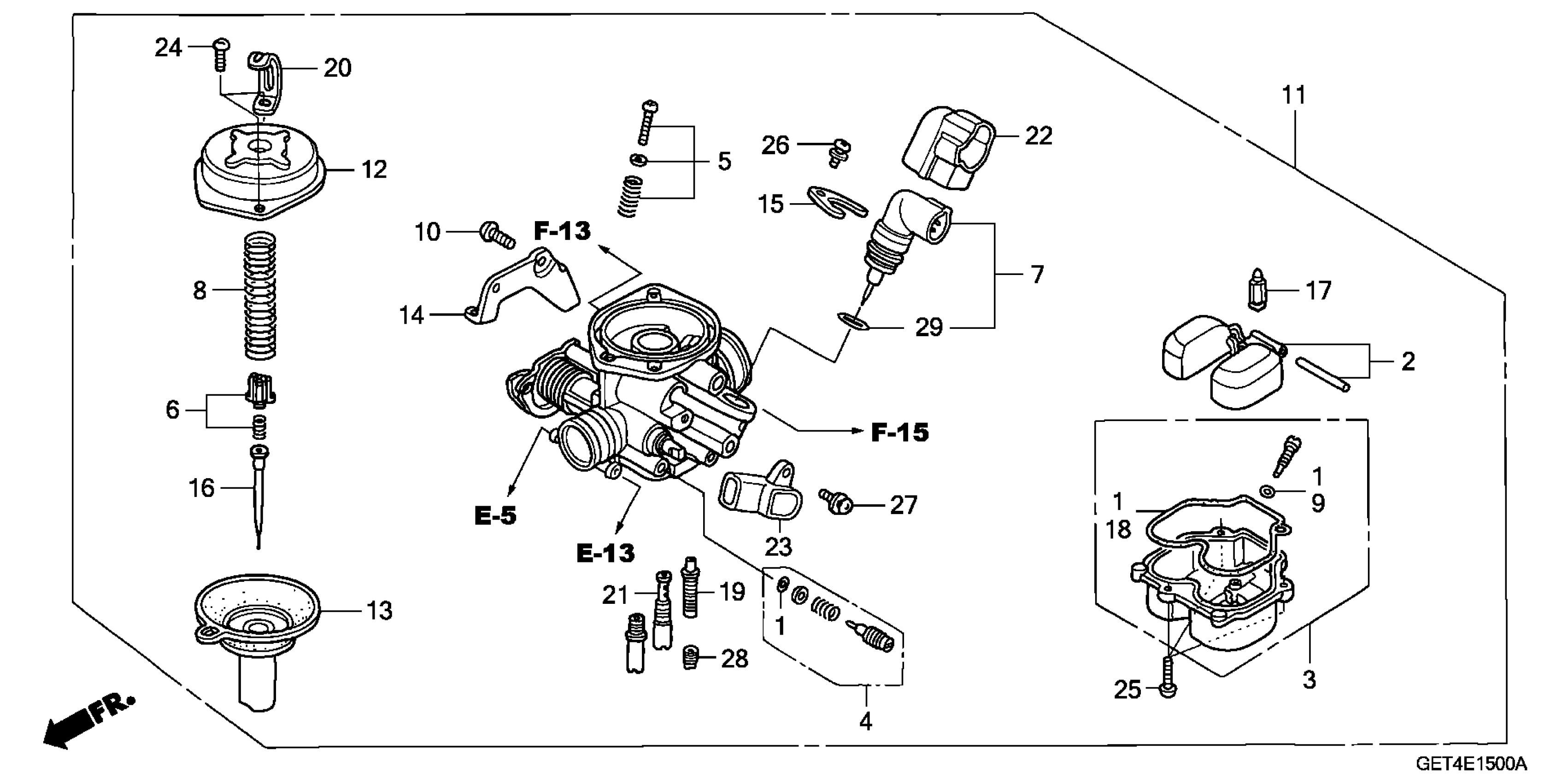

Honda CHF50SAS (05) METROPOLITAN SP, JPN, VIN# JH2AF606-5K100001 CARBURETOR Diagram

GASKET SET

16010-GET-003

$13.54

FLOAT SET

16013-GET-003

$52.85

CHAMBER SET, FLOAT

16015-GET-003

$94.64

SCREW SET A

16016-GEV-003

$14.62

SCREW SET B

16028-GEE-711

$11.58

PLATE SET, VALVE

16037-KFM-901

$9.79

BYSTARTER ASSY., AUTO

16046-GET-003

$76.68

SPRING, COMPRESSION COIL

16050-GET-671

Unavailable

O-RING (1.3X4.3)

16076-ND5-004

$2.56

SCREW, TRUSS (5X8)

16080-GET-003

$1.49

CARBURETOR ASSY. (NVK00E A) This part replaces 16100-GET-671.

16100-GET-673

Unavailable

CARBURETOR ASSY. (NVK00E A) This part replaces 16100-GET-672.

16100-GET-673

Unavailable

CARBURETOR ASSY. (NVK00E A)

16100-GET-673

Unavailable

TOP

16107-GET-003

$29.48

PISTON, VACUUM

16111-GET-003

Unavailable

STAY, WIRE

16119-GET-003

$5.77

PLATE, SETTING

16131-ZW9-801

$3.38

NEEDLE, JET

16151-GET-671

Unavailable

VALVE, FLOAT This part replaces 16155-KJ9-751.

16155-413-751

$32.50

VALVE, FLOAT

16155-413-751

$32.50

GASKET, FLOAT CHAMBER

16163-GET-003

$9.24

JET, NEEDLE

16166-GET-003

$15.09

CLIP, PLATE

16179-KM1-003

Unavailable

JET, SLOW (#35)

16180-GEE-003

$9.07

CAP, HOLDER

16190-GET-003

$5.28

SENSOR ASSY., THROTTLE

37890-GET-003

$43.38

SCREW, PAN (4X8)

93500-04008-0H

$1.49

SCREW, PAN (4X8) This part replaces 93500-04008-1H.

93500-04008-0H

$1.49

SCREW, PAN (4X12)

93500-04012-0H

$1.49

SCREW, PAN (4X12) This part replaces 93500-04012-1H.

93500-04012-0H

$1.49

SCREW-WASHER (4X8)

93892-04008-08

$1.49

SCREW-WASHER (4X8) This part replaces 93892-04008-18.

93892-04008-08

$1.49

SCREW-WASHER (5X16)

93893-05016-08

$1.49

SCREW-WASHER (5X16) This part replaces 93893-05016-18.

93893-05016-08

$1.49

JET, MAIN (#72)

99101-ZH7-0720

$7.69

O-RING, BYSTARTER

16077-KG8-901

$2.84
