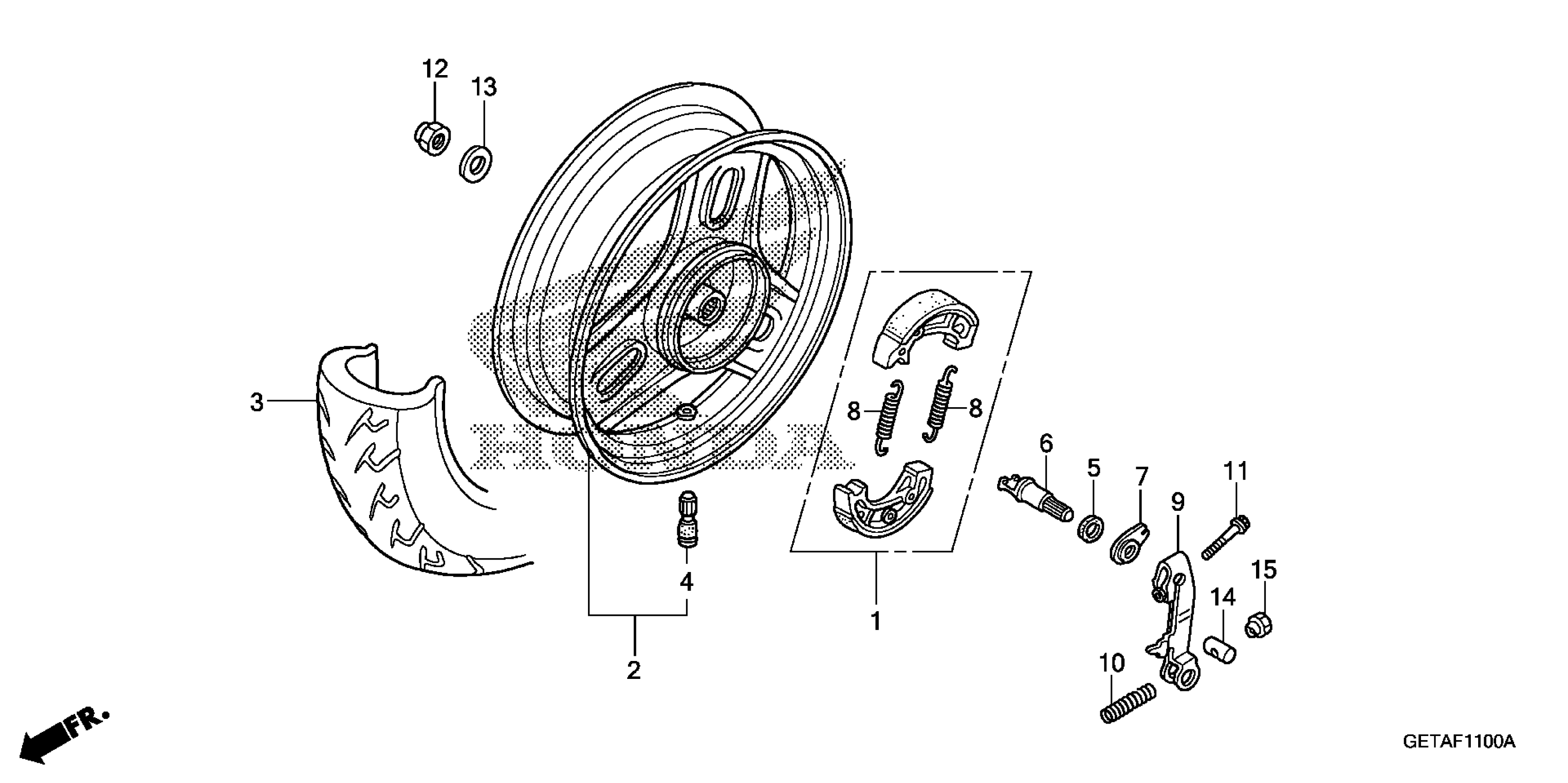

Honda CHF50SA (09) METROPOLITAN, JPN, VIN# JH2AF606-9K500001 REAR WHEEL Diagram

SHOE SET, BRAKE (ASK)

06430-GCW-000

$30.07

WHEEL SET, RR. *NH303M* (MAT AXIS GRAY METALLIC)

42650-GEV-000ZC

Unavailable

TIRE (90/90-10 50J) This part replaces 42711-GET-016.

42711-GET-026

$37.87

VALVE, RIM (IRC)

42753-GM9-743

$8.68

SEAL, BRAKE CAM

43134-196-000

$2.56

CAM, RR. BRAKE

43141-GBL-791

Unavailable

INDICATOR, RR. BRAKE

43145-GN2-000

$4.28

SPRING, BRAKE SHOE

43151-GC4-000

$4.76

ARM, RR. BRAKE

43410-GET-000

Unavailable

SPRING, RR. BRAKE ARM

43472-GET-010

$2.30

BOLT, FLANGE (5X25)

90112-GG2-900

$4.62

NUT, U (14MM)

90305-197-013

$6.14

WASHER (26X14X2.8)

90501-GAH-000

$6.63

JOINT A, BRAKE ARM

95015-31001

$1.53

NUT A, BRAKE ROD ADJUSTING

95015-41000

$1.49
