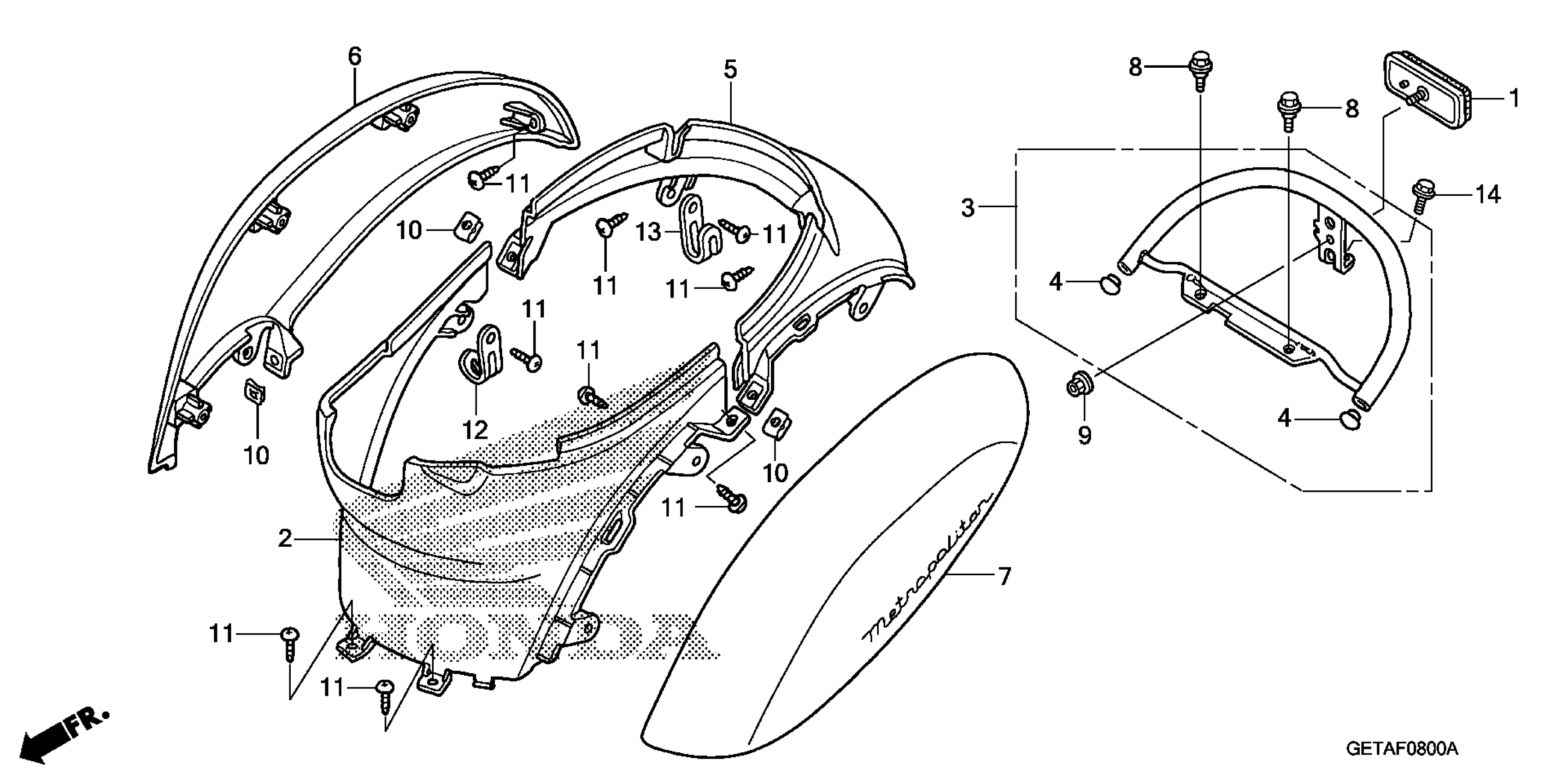

Honda CHF50SA (09) METROPOLITAN, JPN, VIN# JH2AF606-9K500001 BODY COVER Diagram

REFLECTOR, REFLEX (STANLEY)

33741-MS6-921

$13.93

COVER, CENTER *NHA15R* (PENGUIN GRAY) | Heavy gray metallic-u NH194MU;

80152-GET-000ZE

$50.48

COVER, CENTER *R257R* (PRIMARY RED) | Monza red R110;

80152-GET-000ZJ

Unavailable

GRIP ASSY., RR.

81200-GET-670

$65.18

CAP, RR. GRIP END

81201-GET-000

Unavailable

COVER, RR. CENTER *NHA15R* (PENGUIN GRAY) | Heavy gray metallic-u NH194MU;

83501-GET-010ZF

Unavailable

COVER, RR. CENTER *R257R* (PRIMARY RED) | Monza red R110;

83501-GET-010ZJ

Unavailable

COVER SET, R. BODY *R110* (WL) (MONZA RED)

83550-GET-A70ZC

Unavailable

COVER SET, R. BODY *NH194MU* (WL) (HEAVY GRAY METALLIC-U) | Heavy gray metallic-u NH194MU;

83550-GET-A70ZD

Unavailable

COVER SET, L. BODY *R110* (WL) (MONZA RED) | Monza red R110

83650-GET-A70ZC

$181.75

COVER SET, L. BODY *NH194MU* (WL) (HEAVY GRAY METALLIC-U) | Heavy gray metallic-u NH194MU;

83650-GET-A70ZD

$181.75

BOLT, FR. FENDER FIXING

90106-MM9-000

$2.97

NUT, FLANGE (5MM) (FUSE RASHI)

90301-MG8-000

$4.66

NUT, SPRING (4MM)

90302-SA4-003

$5.44

SCREW, TAPPING (4X12)

93903-34380

$2.18

CLIP (4X100) This part replaces 94591-21000.

94591-41000

$4.19

CLIP (4X100)

94591-41000

$4.19

CLIP (2X60)

94591-26000

$4.25

BOLT, FLANGE (6X25)

96001-06025-02

$1.49
