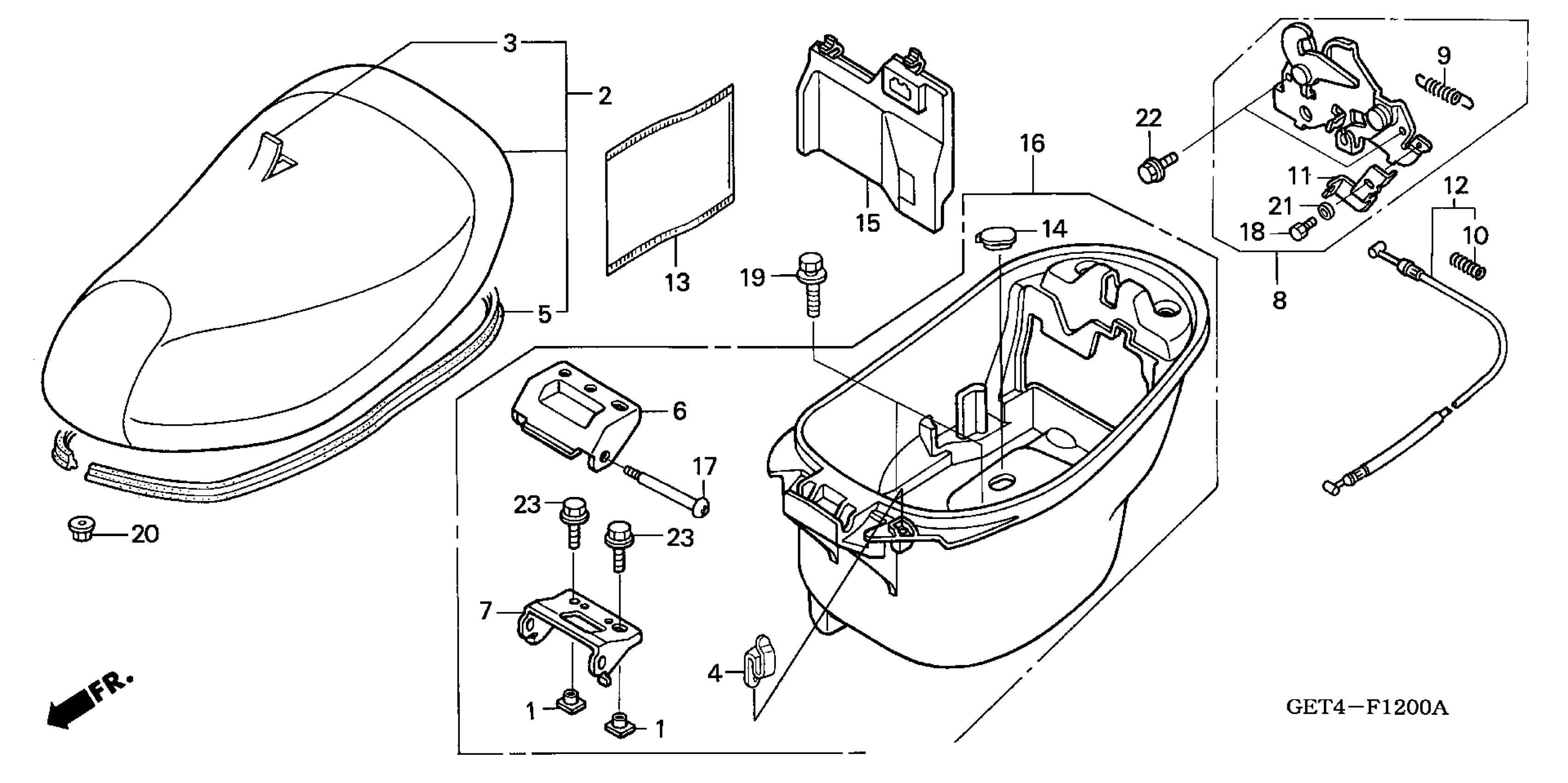

Honda CHF50PSAS (05) METROPOLITAN II SP, JPN, VIN# JH2AF60F-5K100001 SEAT + LUGGAGE BOX Diagram

NUT, SPECIAL (6X7)

61304-958-003

$3.24

SEAT, SINGLE (TYPE3)

77100-GET-000ZC

$171.44

LEATHER, SEAT (TYPE3) (NO LETTERS PRINTED)

77102-GET-000ZC

$56.23

HOOK, HELMET

77106-GAH-000

$2.92

RUBBER, SEAL

77115-GEV-000

Unavailable

HINGE, SEAT (A)

77201-GET-000

Unavailable

HINGE, SEAT (B)

77202-GET-000

Unavailable

CATCH, SEAT

77235-GET-701

Unavailable

SPRING, SEAT CATCH

77236-GET-000

$5.89

SPRING, CABLE RETURN

77237-GET-000

$3.69

ADJUSTER, CABLE

77238-GET-700

Unavailable

CABLE, SEAT LOCK

77241-GET-020

Unavailable

BAG, SERVICE BOOK

77251-GR1-000

$4.30

PLUG, RR. FENDER

80101-GN1-000

$2.92

COVER, BATTERY

81251-GET-000

$18.84

BOX ASSY., LUGGAGE

81260-GET-000

$150.64

PIN, HINGE

90106-GAH-000

$5.66

BOLT, HEX. (5X8)

92101-05008-0H

$1.49

BOLT-WASHER (6X20)

93404-06020-00

$1.55

NUT, FLANGE (6MM)

94050-06000

$1.49

WASHER, PLAIN (5MM)

94101-05800

$1.49

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (6X12)

95701-06012-08

$1.67
