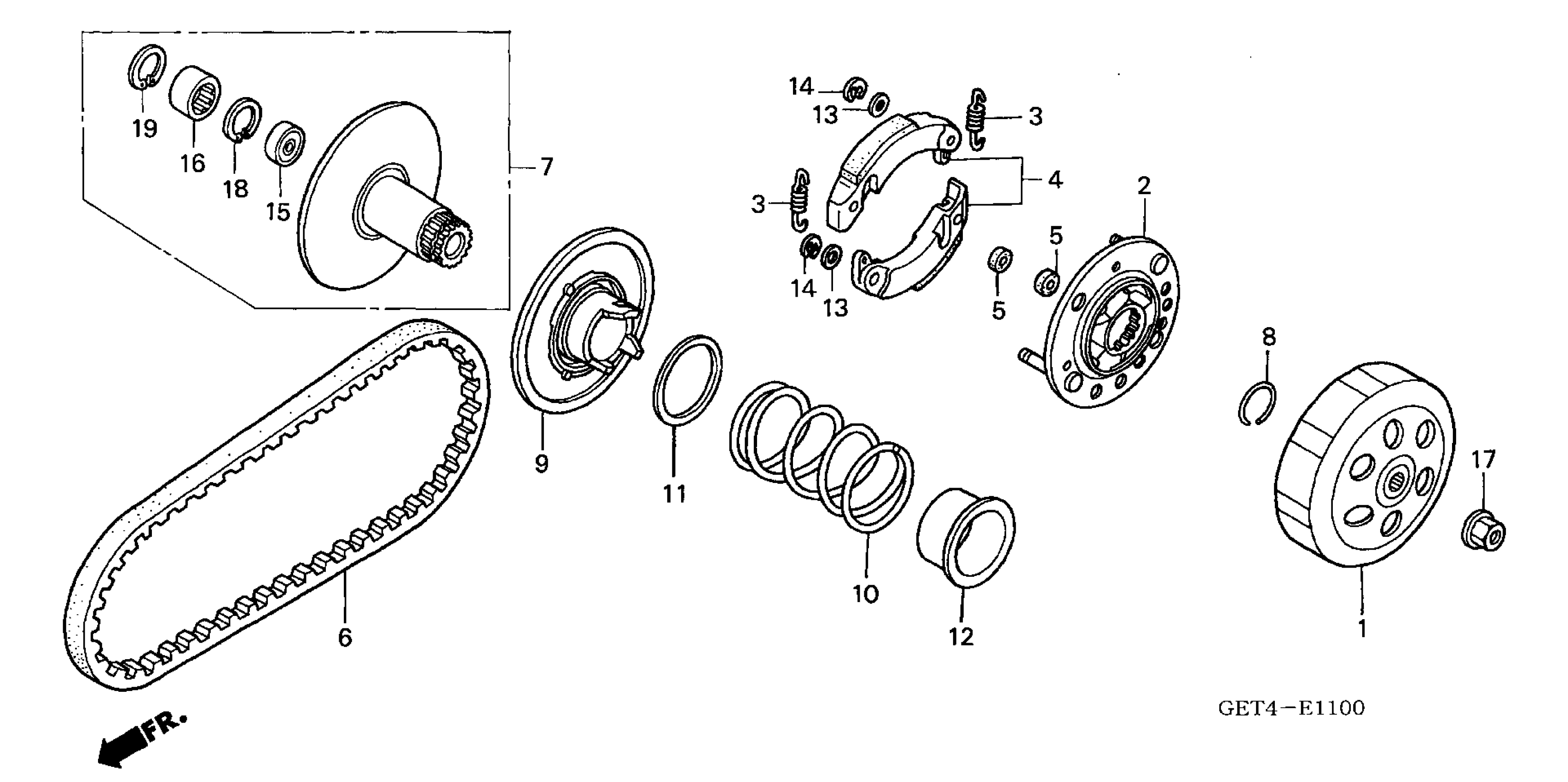

Honda CHF50PSAS (05) METROPOLITAN II SP, JPN, VIN# JH2AF60F-5K100001 DRIVEN FACE Diagram

CLUTCH OUTER

22100-GCH-000

$68.69

PLATE, DRIVE

22350-GBL-J21

$30.43

SPRING, CLUTCH

22401-GEE-710

$2.92

WEIGHT SET, CLUTCH

22535-GBL-305

$50.84

RUBBER, CLUTCH DAMPER

22804-148-000

$2.97

BELT, DRIVE

23100-GET-003

$29.63

FACE, DRIVEN

23210-GEE-711

$67.91

CLIP (OUTER) (30X2.0)

23215-GBL-J30

$1.95

FACE, MOVABLE DRIVEN

23220-GEE-711

$44.68

SPRING, DRIVEN FACE

23233-GEE-711

Unavailable

WASHER, DRIVEN FACE SPRING

23237-GCH-000

$3.39

COLLAR, SPRING

23238-GCH-000

$4.33

WASHER, THRUST (6MM)

90442-044-000

$2.21

CIRCLIP (6MM)

90454-GB2-000

$1.79

BEARING, RADIAL BALL (6901UU)

91001-KG8-901

$14.56

BEARING, NEEDLE (17X25X18WS) (NTN)

91103-GCH-003

$6.54

NUT, FLANGE (10MM)

94050-10000

$1.59

CIRCLIP (INNER) (24MM)

94520-24000

$1.49

CIRCLIP (INNER) (25MM)

94520-25000

$1.49
