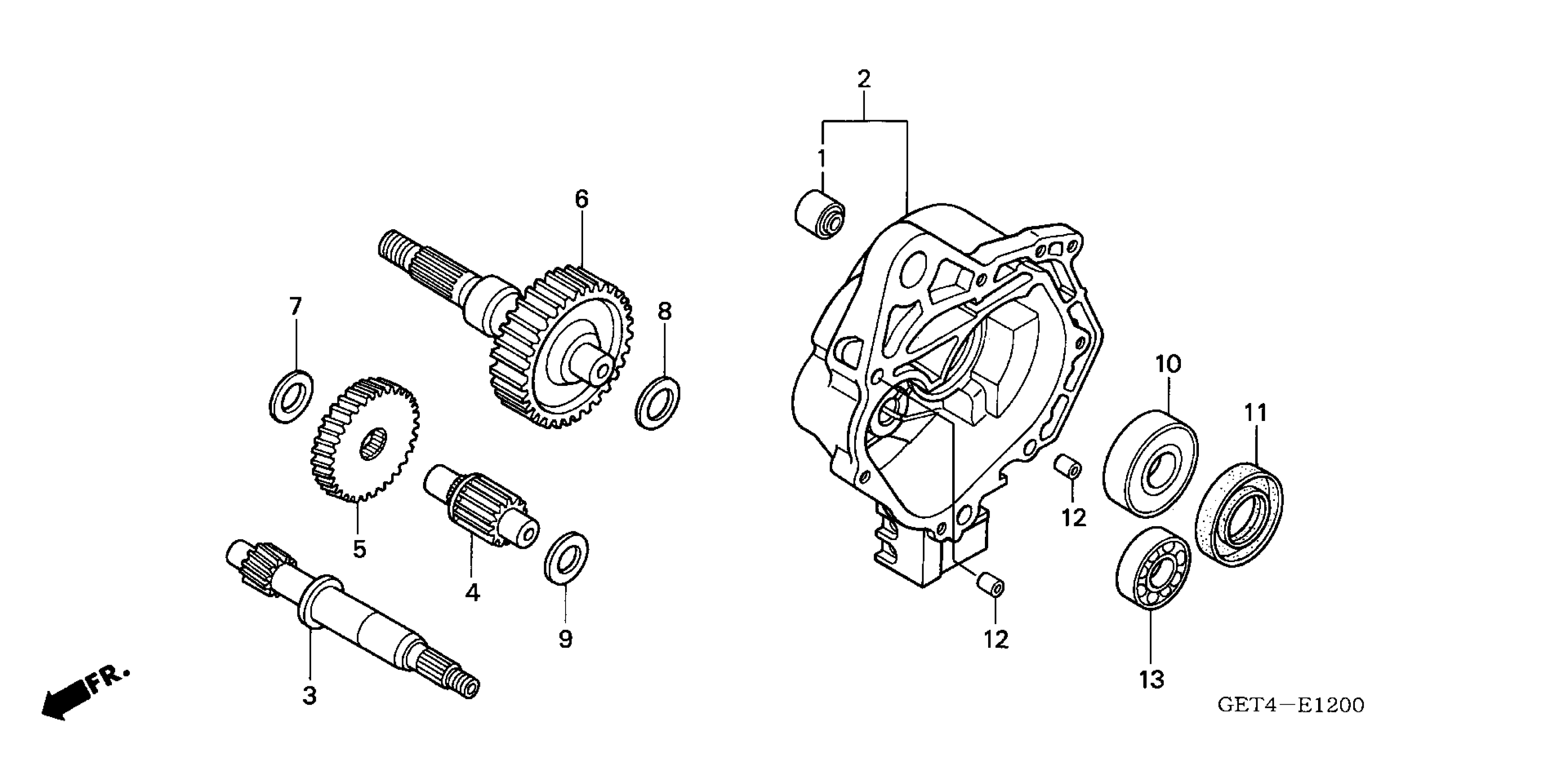

Honda CHF50PA (05) METROPOLITAN II, JPN, VIN# JH2AF604-5K300001 TRANSMISSION Diagram

#

Description

Price

1

BUSH, RR. CUSHION RUBBER (LOWER)

11203-GC7-300

$10.71

2

CASE, TRANSMISSION

21200-GET-000

Unavailable

3

SHAFT, DRIVE (12T)

23411-GEE-710

Unavailable

4

COUNTERSHAFT (12T)

23421-GEZ-000

$35.07

5

GEAR, COUNTER (42T)

23422-GEZ-000

$32.26

6

GEAR, FINAL (47T)

23430-GEZ-000

$105.56

7

WASHER, SIDE (14MM)

90429-GET-000

$2.21

8

WASHER, THRUST (17MM)

90454-KF0-000

$4.39

9

WASHER, THRUST (14MM)

90454-350-000

$3.74

10

BEARING, RADIAL BALL (6203) (NTN CORP.)

42630-GK4-003

$16.69

10

BEARING, RADIAL BALL (6203) (NTN CORP.) This part replaces 91028-GS7-900.

42630-GK4-003

$16.69

10

BEARING, RADIAL BALL (6203) (NTN CORP.) This part replaces 91053-MV1-003.

42630-GK4-003

$16.69

11

OIL SEAL (24X40X7)

91254-GE8-005

$9.24

12

PIN, DOWEL (8X14)

94301-08140

$2.25

13

BEARING, RADIAL BALL (6201)

96100-62013-00

$9.33
