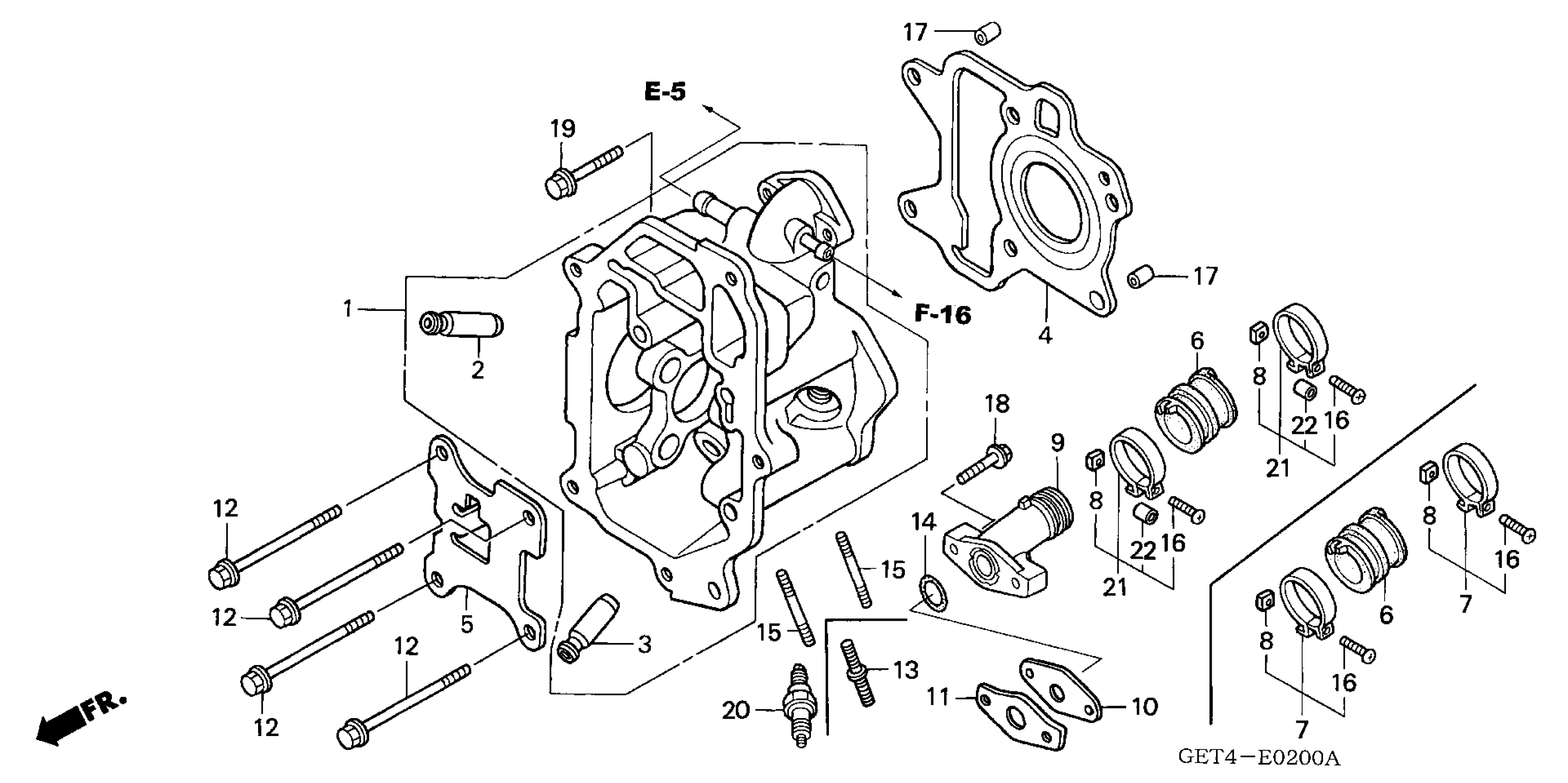

Honda CHF50PA (05) METROPOLITAN II, JPN, VIN# JH2AF604-5K300001 CYLINDER HEAD Diagram

CYLINDER HEAD

12200-GET-000

Unavailable

GUIDE, VALVE (OVER SIZE)

12204-GEE-305

$14.10

GUIDE, EX. VALVE (OVER SIZE)

12205-GEE-305

$14.10

GASKET, CYLINDER HEAD

12251-GET-003

$8.80

PLATE, CAMSHAFT STOPPER

12321-GET-000

$6.84

INSULATOR, CARBURETOR

16211-GEE-000

$29.04

NUT, SQUARE (5MM)

16222-MV4-300

$2.15

PIPE, INLET

17111-GET-010

$23.48

PLATE, IN. PIPE

17112-GET-770

Unavailable

GASKET, IN. PIPE This part replaces 17115-GET-770.

17115-GET-772

$7.11

BOLT, FLANGE (6X119)

90001-GET-000

$2.70

BOLT, SPECIAL (6MM)

90012-GS7-980

Unavailable

BOLT, STUD (6X16)

92900-06016-0E

$1.89

SCREW, PAN (5X25)

93500-05025-0H

$1.49

PIN, DOWEL (8X14)

94301-08140

$2.25

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

BOLT, FLANGE (6X32)

95701-06032-00

$1.89

SPARK PLUG (CR8EH9) (NGK)

98059-58916

$8.09

BAND, INSULATOR

16217-GEE-010

$4.87

COLLAR

16223-GEE-300

$1.49
