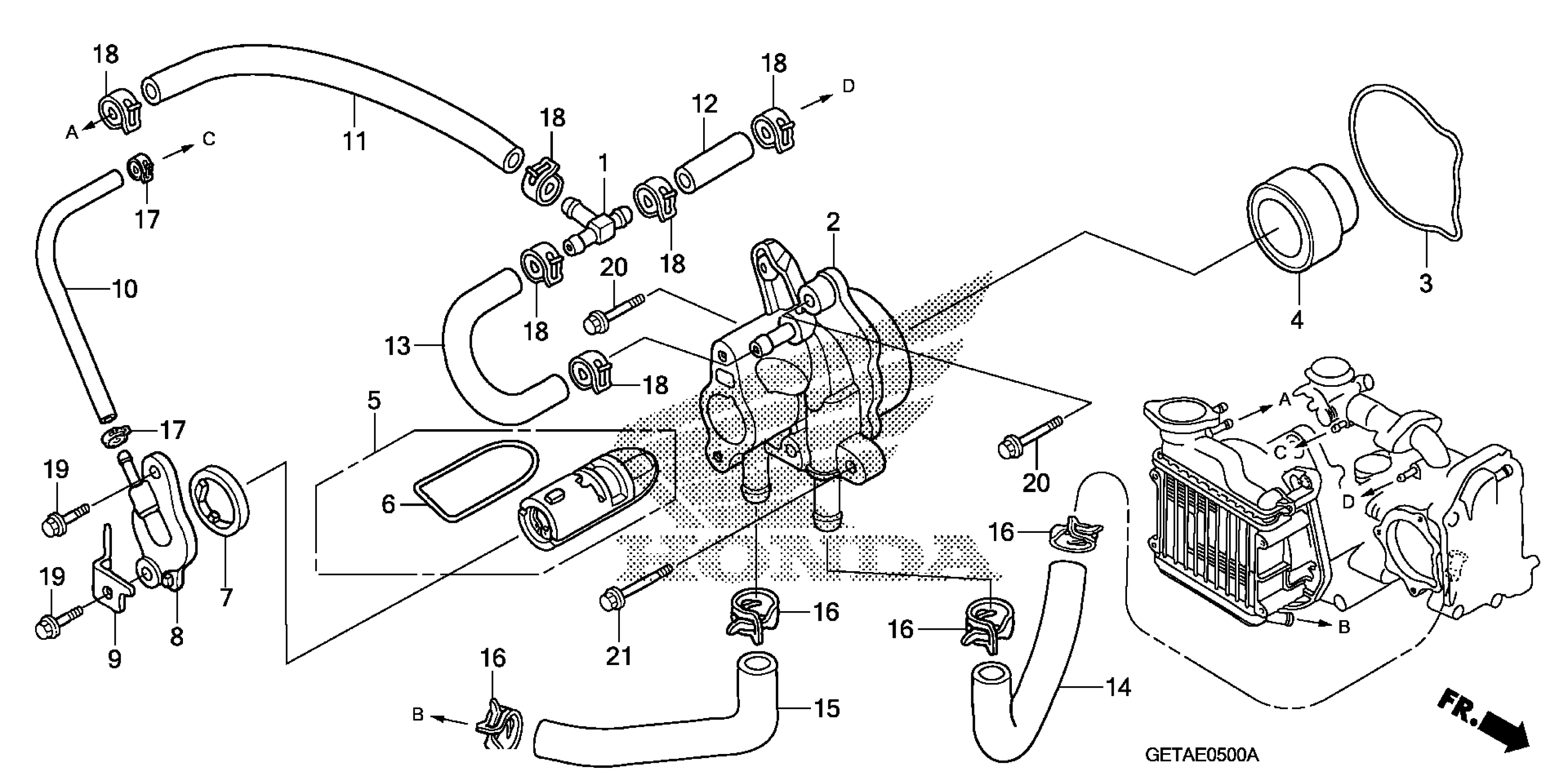

Honda CHF50A (09) METROPOLITAN, JPN, VIN# JH2AF600-9K700001 WATER PUMP Diagram

Description

Price

JOINT, THREE WAY

16961-MCT-010

$11.72

WATER PUMP

19210-GET-003

$92.92

GASKET, WATER PUMP BODY

19216-GET-000

$5.28

MAGNET (OUTER)

19230-GET-003

$33.72

THERMOSTAT ASSY.

19300-GET-013

$31.43

O-RING

19301-GET-000

$2.48

RUBBER, SEAL

19305-GET-013

$4.17

COVER, THERMOSTAT

19315-GET-010

$12.89

STAY, HARNESS CLIP

19317-GET-000

$3.21

TUBE A

19320-GET-000

$5.60

TUBE C, AIR BREATHER

19330-GET-000

$9.33

TUBE D, AIR BREATHER

19331-GET-000

$2.61

TUBE E, AIR BREATHER

19332-GET-000

$6.16

HOSE A, WATER

19501-GET-000

$8.18

HOSE B, WATER

19502-GET-000

$8.18

CLAMP, WATER HOSE (21MM)

90701-MF5-003

$5.66

CLAMP, TUBE (D8.5)

95002-40850-08

$2.34

CLAMP, TUBE (D10.5)

95002-41050-08

$2.34

BOLT, FLANGE (6X20)

96001-06020-00

$1.49

BOLT, FLANGE (6X22)

96001-06022-00

$1.49

BOLT, FLANGE (6X35)

96001-06035-00

$1.49
