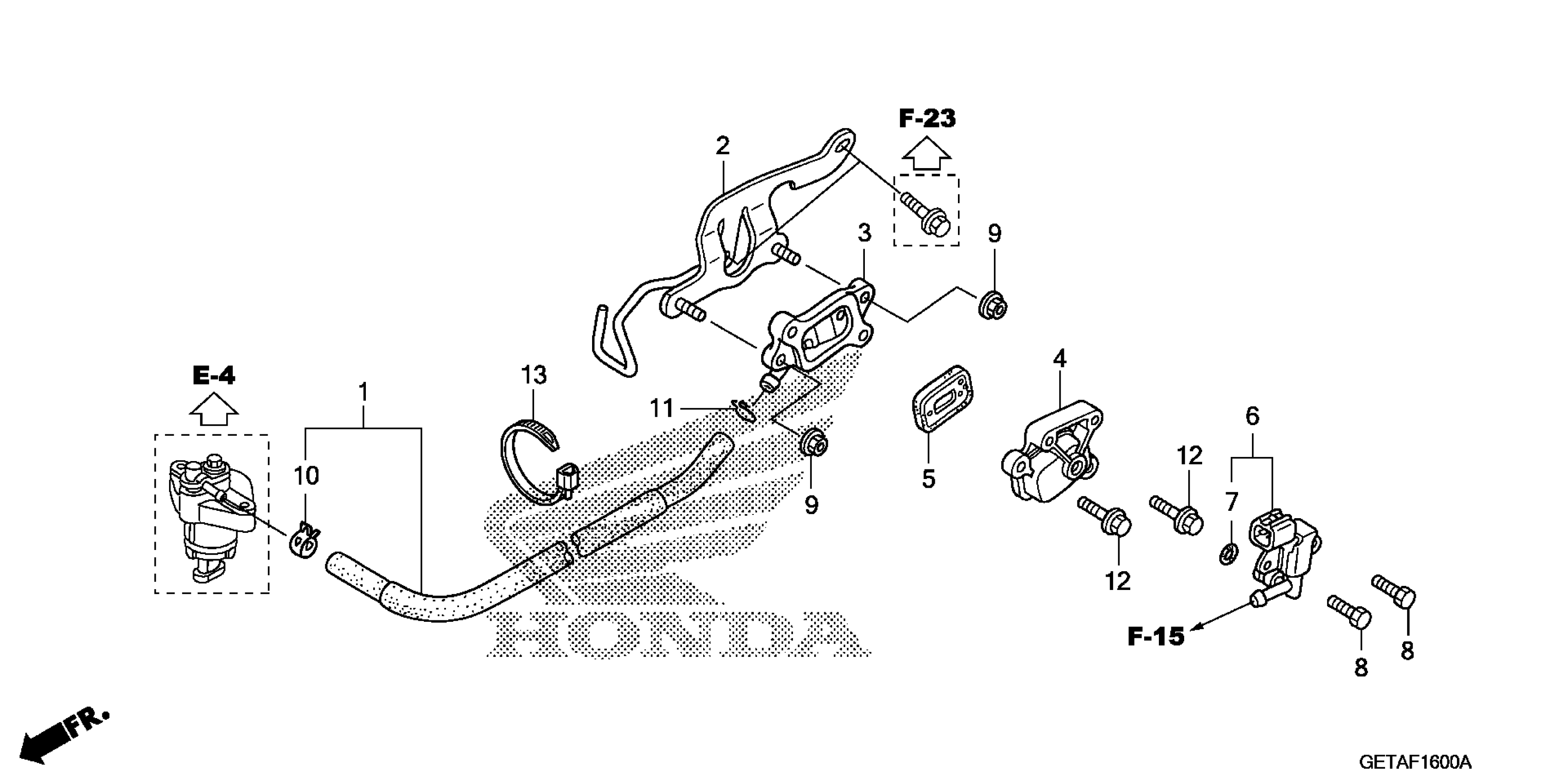

Honda CHF50A (09) METROPOLITAN, JPN, VIN# JH2AF600-9K700001 VENTILATION VALVE Diagram

#

Description
Price

1

TUBE A, PCV

14531-GET-A20

Unavailable

2

STAY, PCV

17350-GET-A20

Unavailable

3

CASE, REED VALVE

17431-GEZ-610

$16.51

4

COVER, REED VALVE

17432-GEZ-610

$26.46

5

VALVE, REED (NOK)

18601-GEE-711

$17.75

6

VALVE, PCV CONTROL SOLENOID

36162-GEZ-611

$45.18

7

O-RING

36221-PNC-005

$3.45

8

BOLT, HEX. (5X12)

93301-05012-0A

$1.49

9

NUT, FLANGE (6MM)

94050-06000

$1.49

10

CLAMP, TUBE (D10)

95002-41000-04

$2.52

11

CLIP, TUBE (C11)

95002-70000

$1.56

12

BOLT, FLANGE (6X22)

96001-06022-00

$1.49

13

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$2.92
