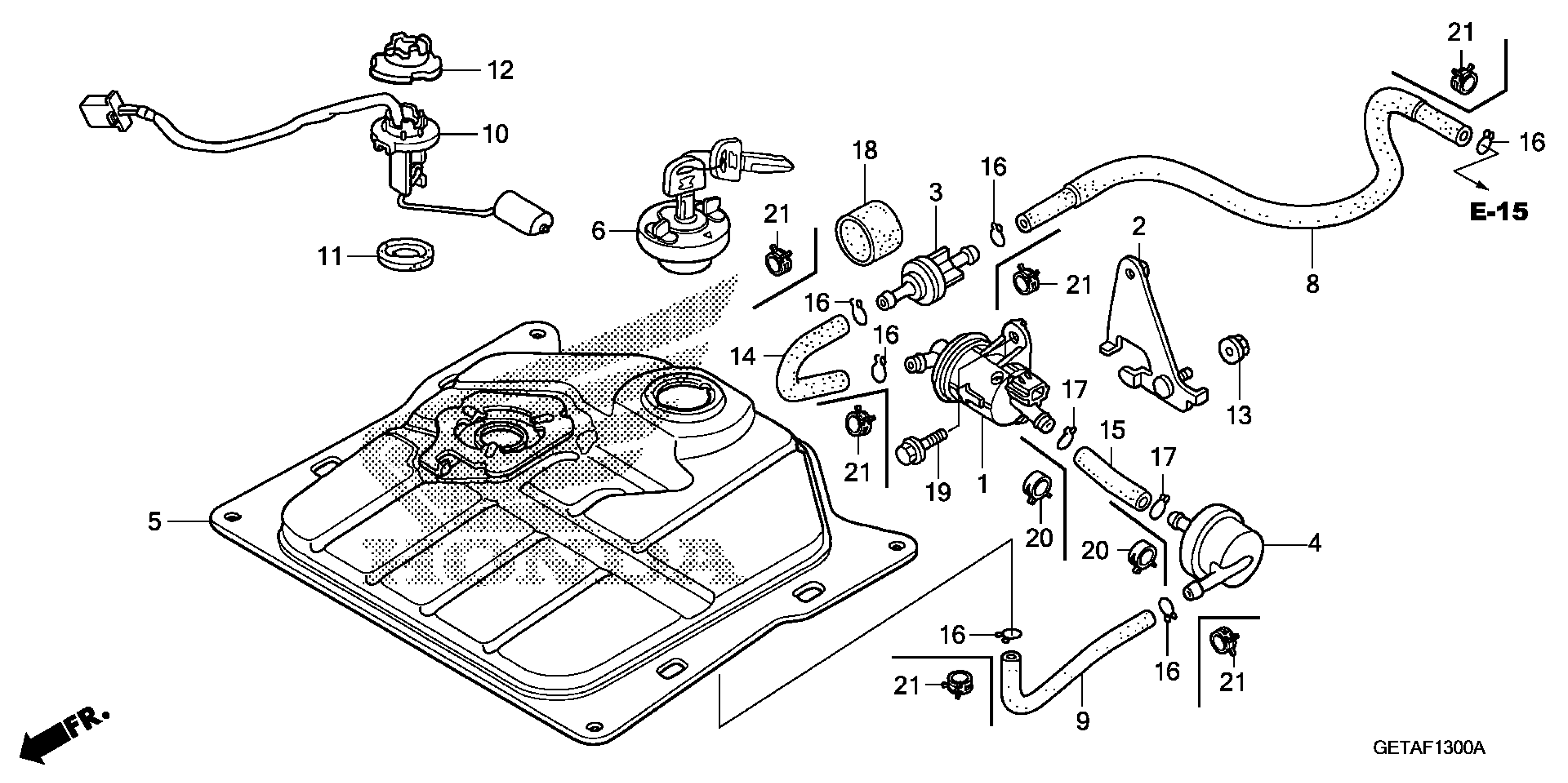

Honda CHF50A (07) METROPOLITAN, JPN, VIN# JH2AF600-7K500001 TO JH2AF600-7K599999 FUEL TANK Diagram

PUMP ASSY., FUEL (MSDS)

16710-GET-013

$95.40

STAY, FUEL PUMP

16715-GET-000

$6.92

VALVE, CHECK

16800-GET-831

$18.74

FILTER, FUEL

16900-GET-003

$16.75

TANK, FUEL This part replaces 17500-GET-000.

17500-GET-010

$173.01

TANK, FUEL

17500-GET-010

$173.01

CAP, FUEL FILLER This part replaces 17620-GEV-761.

17620-GEV-762

$57.05

TUBE, FUEL (4.5X425)

17682-GET-000

$9.48

TUBE A, FUEL This part replaces 17683-GET-000.

17683-GET-010

$4.45

TUBE A, FUEL

17683-GET-010

$4.45

FUEL UNIT

37800-GET-003

$66.48

GASKET, BASE

37801-GA7-700

$5.17

RETAINER, FUEL UNIT

37802-GA7-700

$5.17

NUT, FLANGE (6MM)

94050-06080

$1.49

BULK HOSE, FUEL (4.5X3000) (4.5X45)

95001-45003-60M

$36.67

BULK HOSE, FUEL (5.5X3000) (5.3X40)

95001-55003-60M

$47.32

CLIP, TUBE (B8)

95002-02080

$1.80

CLIP, TUBE (B10)

95002-02100

$1.90

BULK HOSE, VACUUM (17X1000) (17X23X15)

95005-17001-50M

$24.15

BOLT, FLANGE (6X12)

95701-06012-08

$1.67
