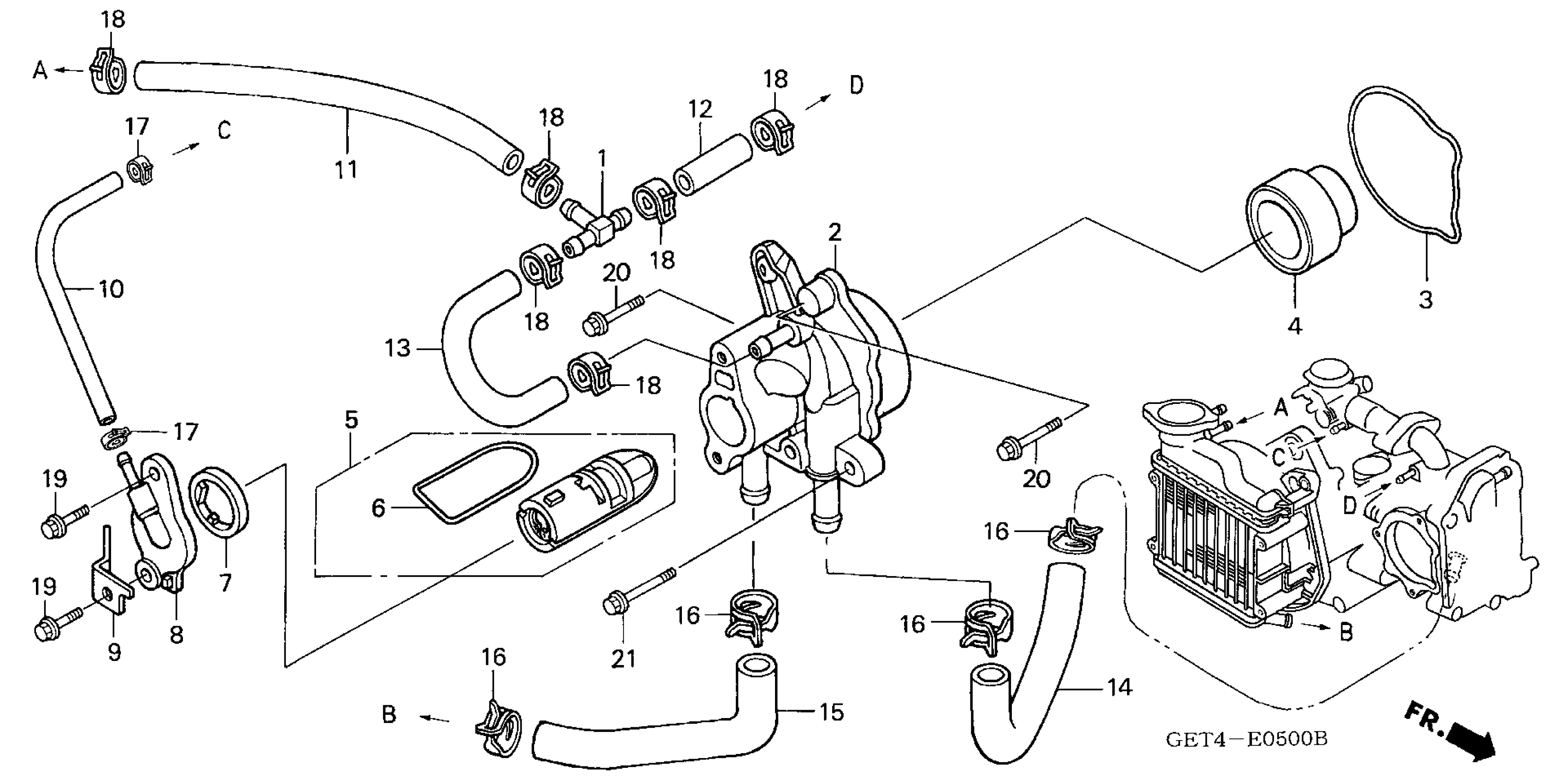

Honda CHF50A (05) METROPOLITAN, JPN, VIN# JH2AF600-5K300001 WATER PUMP Diagram

Description

Price

JOINT, THREE WAY

16961-MCT-010

$11.37

WATER PUMP

19210-GET-003

$91.07

GASKET, WATER PUMP BODY

19216-GET-000

$5.04

MAGNET (OUTER)

19230-GET-003

$31.15

THERMOSTAT ASSY.

19300-GET-013

$28.86

O-RING

19301-GET-000

$2.29

RUBBER, SEAL

19305-GET-013

$3.98

COVER, THERMOSTAT

19315-GET-010

$11.91

STAY, HARNESS CLIP

19317-GET-000

$2.97

TUBE A

19320-GET-000

$5.35

TUBE C, AIR BREATHER

19330-GET-000

$8.09

TUBE D, AIR BREATHER

19331-GET-000

$2.41

TUBE E, AIR BREATHER

19332-GET-000

$5.69

HOSE A, WATER

19501-GET-000

$7.81

HOSE B, WATER

19502-GET-000

$7.81

CLAMP, WATER HOSE (21MM)

90701-MF5-003

$5.22

CLAMP, TUBE (D8.5)

95002-40850-08

$2.31

CLAMP, TUBE (D10.5)

95002-41050-08

$2.31

BOLT, FLANGE (6X20)

96001-06020-00

$1.15

BOLT, FLANGE (6X22)

96001-06022-00

$1.15

BOLT, FLANGE (6X35)

96001-06035-00

$1.29
