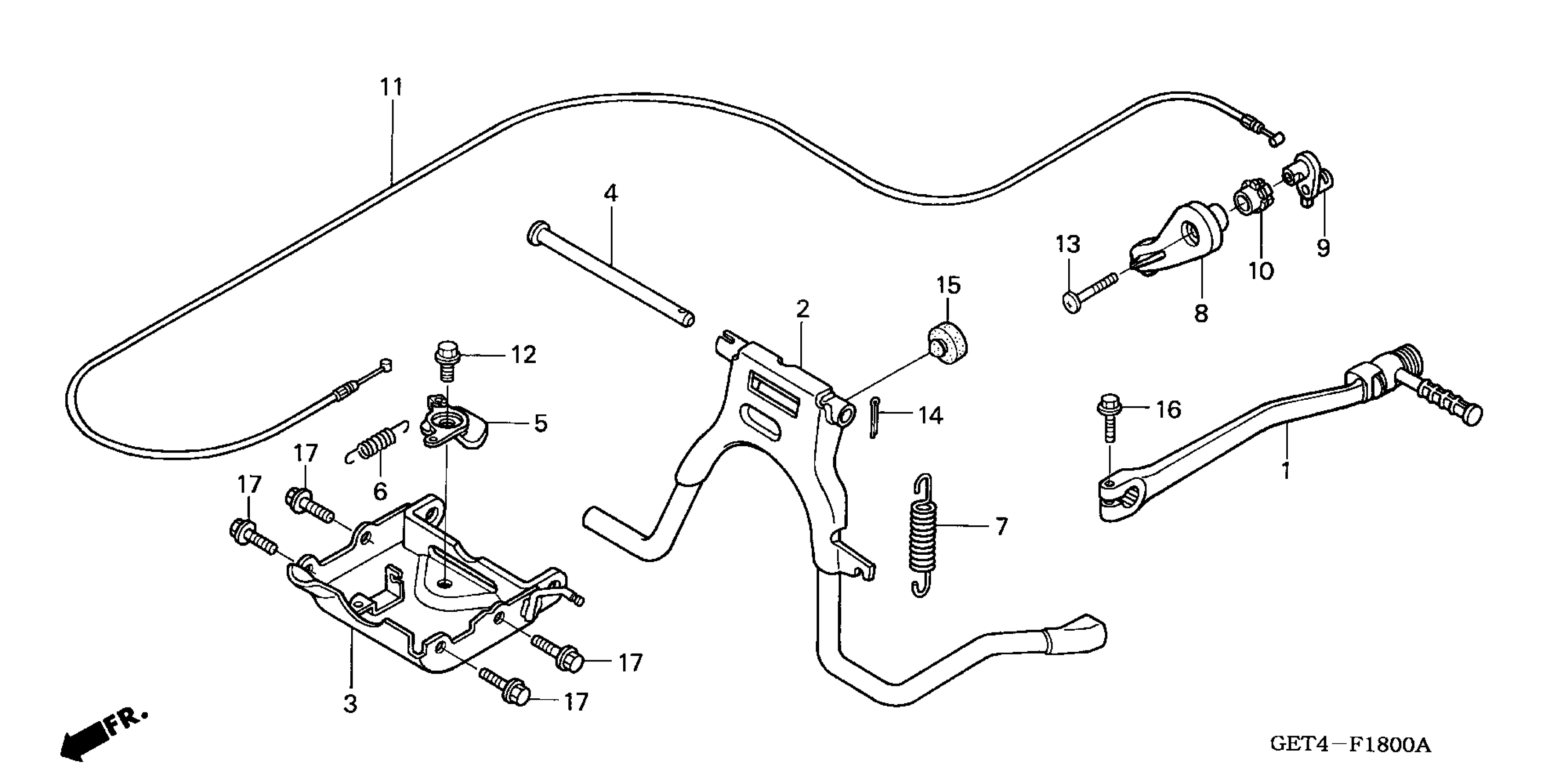

Honda CHF50A (05) METROPOLITAN, JPN, VIN# JH2AF600-5K300001 STAND + KICK PEDAL Diagram

ARM ASSY., KICK STARTER

28300-GET-010

$73.84

ARM ASSY., KICK STARTER This part replaces 28300-GET-305.

28300-GET-010

$73.84

STAND, MAIN

50500-GEE-710

$76.18

BRACKET, MAIN STAND

50501-GET-000

$35.59

SHAFT, MAIN STAND

50503-GBL-000

$4.17

CAM

50512-GCH-000

Unavailable

SPRING

50513-GEE-000

Unavailable

SPRING, MAIN STAND

50520-GW2-000

$4.06

HANDLE, STAND LOCK

50521-GBL-730

$4.13

LEVER, STAND LOCK

50522-GBL-010

$4.38

BEARING, STAND LOCK

50523-GBL-010

$3.62

CABLE, STAND LOCK

50524-GET-000

Unavailable

BOLT, MAIN STAND LOCK

90105-GBL-870

$1.70

SCREW, SPECIAL (5X30)

90132-GBL-000

$1.49

PIN, SPLIT (2.5X30) This part replaces 94201-25200.

94201-25300

$1.49

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$1.49

PIN, SPLIT (2.5X30)

94201-25300

$1.49

RUBBER, STAND STOPPER

50505-GA7-730

$2.13

BOLT, FLANGE (6X22)

95701-06022-07

$1.49

BOLT, FLANGE (8X20)

95701-08020-07

$1.87
