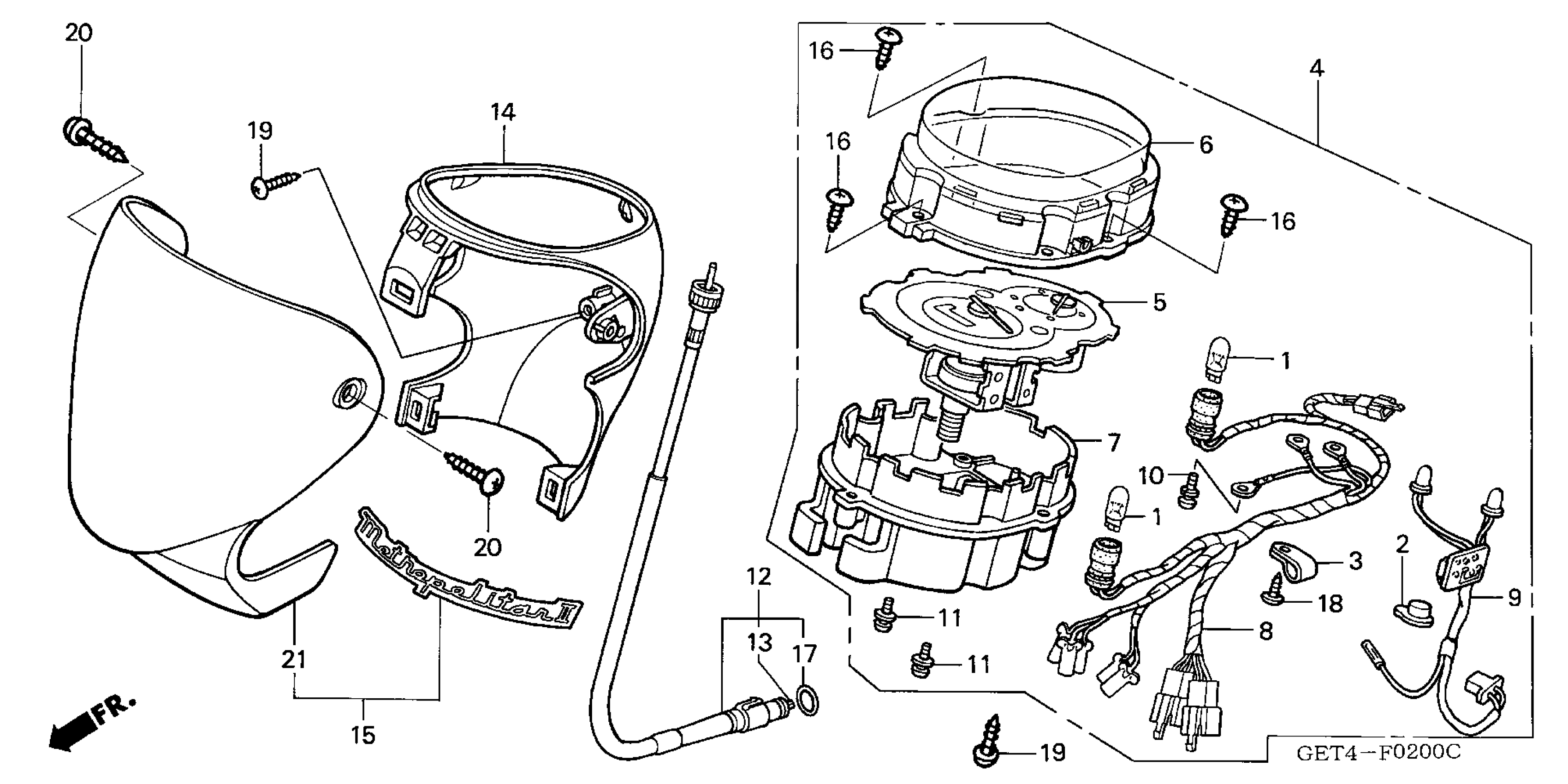

Honda CHF50A (05) METROPOLITAN, JPN, VIN# JH2AF600-5K300001 SPEEDOMETER Diagram

BULB, WEDGE BASE (12V 1.7W) (NIPPON SEIKI)

34909-GET-003

$2.28

CAP

37113-ML7-008

$3.23

CLAMP

37121-ML7-671

$2.89

METER ASSY., COMBINATION

37200-GET-671

Unavailable

SPEEDOMETER

37210-GET-671

$193.61

LENS

37211-GET-003

$22.13

CASE

37212-GET-671

Unavailable

SOCKET

37224-GET-671

Unavailable

INDICATOR, LED

37230-GET-671

Unavailable

SCREW-WASHER (3X22)

37305-KE5-008

$2.75

SCREW-WASHER (4X12)

37305-MAW-621

$1.49

CABLE ASSY., SPEEDOMETER

44830-GEV-711

$18.79

CABLE (INNER)

44831-GEV-711

Unavailable

COVER B, SPEEDOMETER *NH388R* (CLASSICAL WHITE-R)

53206-GET-000ZA

$40.64

COVER SET A, SPEEDOMETER *PB317R* (WL) (DENIM BLUE)

53250-GET-670ZA

Unavailable

COVER SET A, SPEEDOMETER *R165R* (WL) (JOLLY RED)

53250-GET-670ZD

$21.11

COVER SET A, SPEEDOMETER *Y106* (WL) (CLIPPER YELLOW)

53250-GET-670ZE

Unavailable

COVER SET A, SPEEDOMETER *G185R* (WL) (LIME GREEN)

53250-GET-670ZF

Unavailable

SCREW, TAPPING (3X14)

90101-KY6-008

$2.61

O-RING (8.5X1.5)

91312-PH7-000

Unavailable

O-RING (8.5X1.5) This part replaces 91352-671-003.

91312-PH7-000

Unavailable

O-RING (8.5X1.5) This part replaces 91352-671-004.

91312-PH7-000

Unavailable

SCREW, TAPPING (4X12)

93903-24320

$1.49

SCREW, TAPPING (5X12)

93903-25220

$1.49

SCREW, TAPPING (5X10)

93903-35110

$1.49

COVER A, SPEEDOMETER *R165R* (JOLLY RED)

53205-GET-000ZD

$18.39

COVER A, SPEEDOMETER *G185R* (LIME GREEN)

53205-GET-000ZH

$16.05
