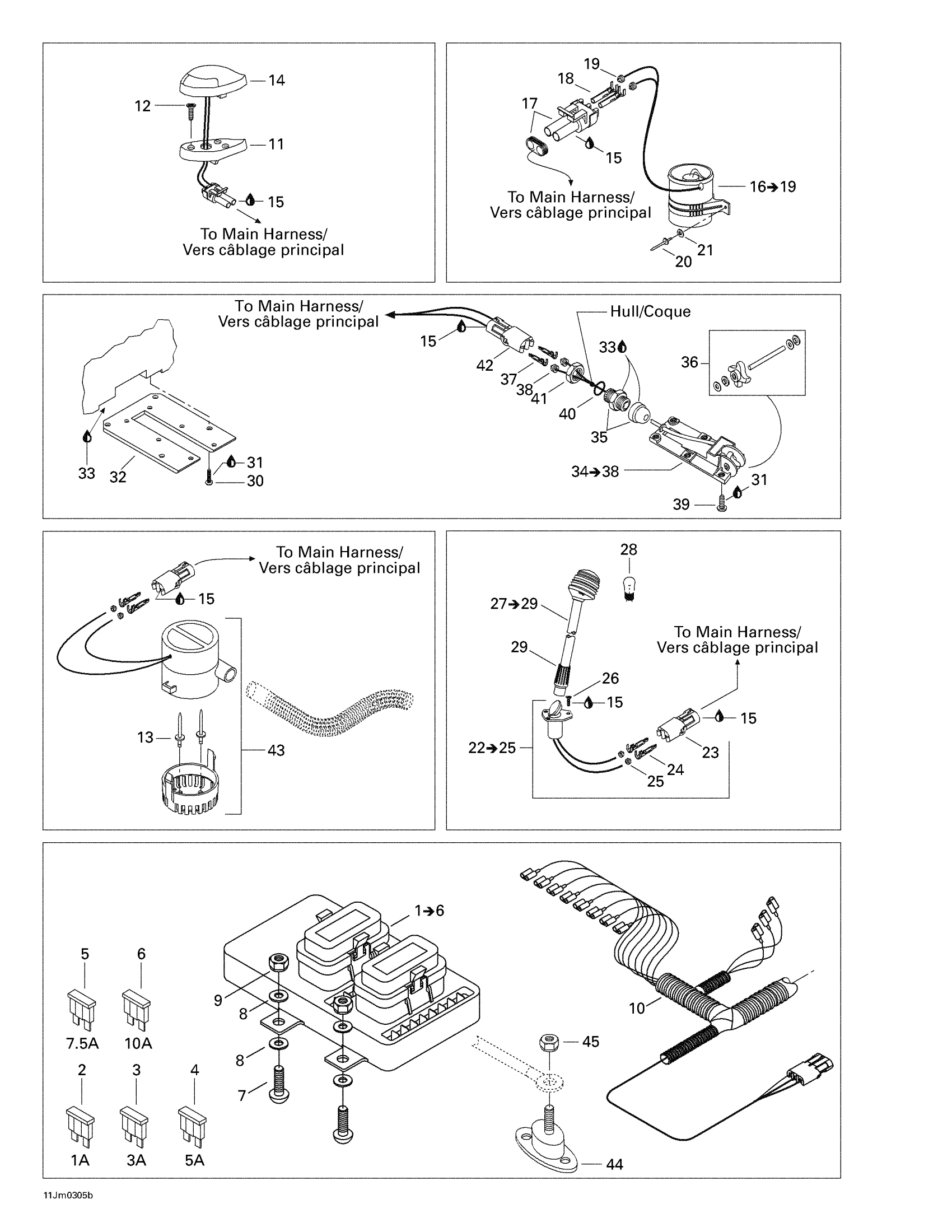

Sea-doo Challenger X, 5778/5779, 2003 10- Electrical Accessories 2 Diagram

#

Description
Price

1

FUSE BLOCK - Call your local BRP dealership

204470815

Unavailable

2

FUSE, 1 AMPERE - Call your local BRP dealership

409012800

Unavailable

3

FUSE, 3 AMPERES - Call your local BRP dealership | CE

278001196

Unavailable

4

Fuse, 5 Amperes | CE

278000344

$3.28

5

FUSE, 7.5 AMPERES - Call your local BRP dealership | CE

278000704

Unavailable

6

Fuse, 10 Amperes | North America

278001197

$2.21

7

PHILLIPS SCREW M6 X 25 - Call your local BRP dealership

208662560

Unavailable

8

Flat Washer M6, Stainless

234062600

$0.77

9

Hex. Elastic Stop Nut M6

232561600

$1.15

10

Accessories Harness

204470835

Unavailable

11

FRONT LAMP SUPPORT - Call your local BRP dealership

204470072

Unavailable

12

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable

13

RIVET_POP 5/32 - Call your local BRP dealership

293150029

Unavailable

14

Front Lamp

204470311

Unavailable

15

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

16

Fan Ass'y | Includes 44 to 47

204470108

$144.99

17

Male Connector, 2 Circuits

278000220

$15.49

18

Female Terminal

278000223

$3.19

19

Wire Seal

278000218

$4.39

20

Pop Rivet 3/16"

293150008

$0.50

21

Flat Washer 5 mm, Stainless

234052600

$0.77

22

Rear Light Base Ass'y | Includes 33 to 36

278000674

Unavailable

23

Female Housing, 2 Circuits

278000217

$9.59

24

Male Terminal | XT Models

278000222

$3.19

25

Wire Seal

278000218

$4.39

26

Phillips Tapping Screw M4.2 X 32

209943260

$1.47

27

Rear Lamp Pole | Includes 17 to 19, Models Without Tower

204470022

Unavailable

28

Bulb

204470053

Unavailable

29

COLLAR - Call your local BRP dealership

204470350

Unavailable

30

Phillips Screw M6 X 35 | W/O Weedless System

208563560

$2.00

31

Loctite 243, 10 ml

293800060

$21.49

32

Sensor Support

204470538

Unavailable

33

Silicone Sealant 51388, 300 ml

296000309

$36.99

34

SENSOR-SPEED - Call your local BRP dealership | Includes 36 To 37 This part replaces 278000970.

278001998

Unavailable

35

ELECTRIC CONNECTION - Call your local BRP dealership

293710031

Unavailable

36

Paddle Wheel Kit

295500108

Unavailable

37

Male Terminal | XT Models

278000222

$3.19

38

Wire Seal

278000218

$4.39

39

PHILLIPS SCREW M5 X 10 - Call your local BRP dealership

208551060

Unavailable

40

SEAL WASHER - Call your local BRP dealership

278000416

Unavailable

41

LOCKING NUT - Call your local BRP dealership

293710032

Unavailable

42

Female Housing, 2 Circuits

278000217

$9.59

43

Bilge Pump

204471431

Unavailable

44

Ground Post

204470715

Unavailable

45

HEX. ELASTIC NUT 3/8 - Call your local BRP dealership

204100032

Unavailable
