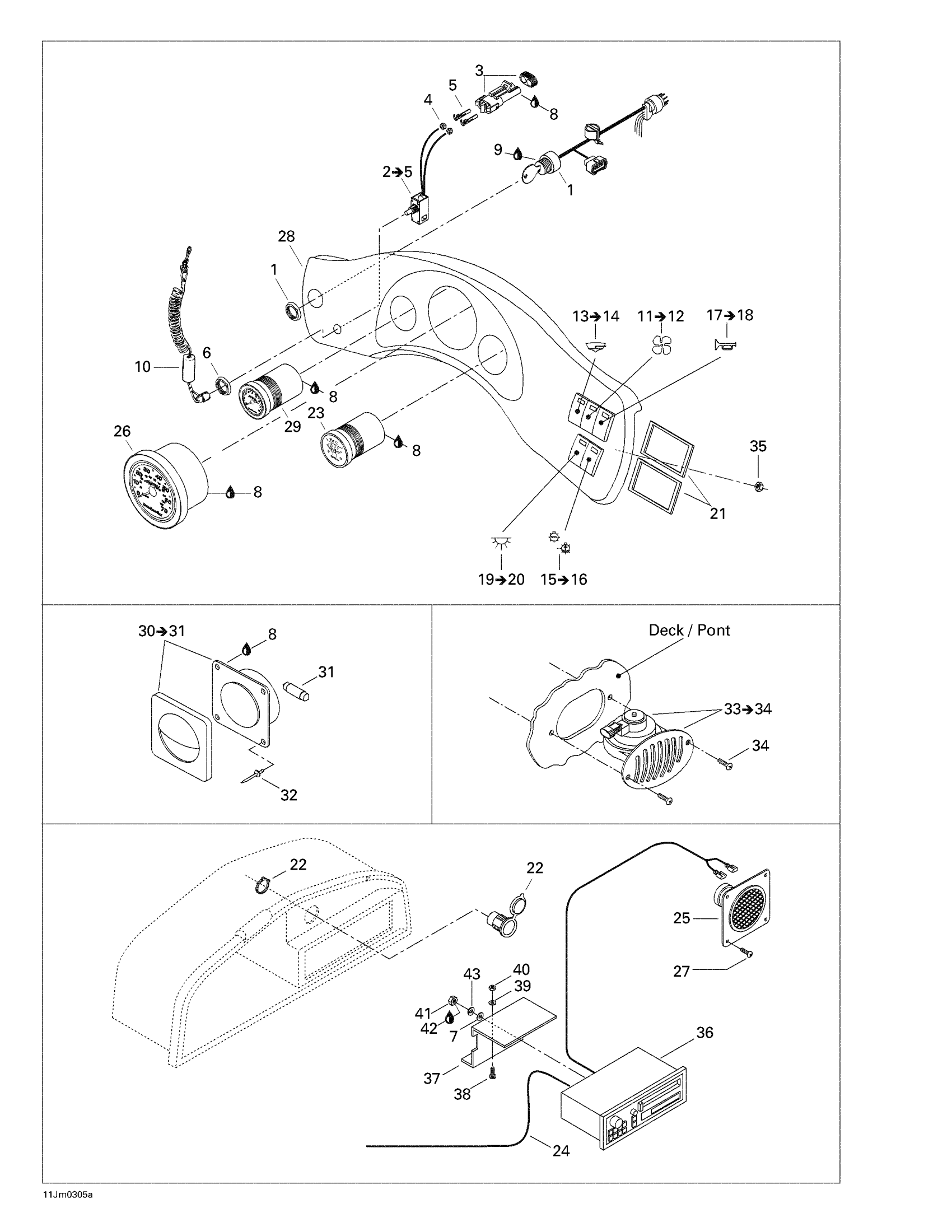

Sea-doo Challenger X, 5778/5779, 2003 10- Electrical Accessories 1 Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Safety Switch | Includes 17 - 20.

204470463

Unavailable

3

Male Connector, 2 Circuits

278000220

$15.49

4

Wire Seal

278000218

$4.39

5

Female Terminal

278000223

$3.19

6

Safety Switch Nut

278000099

Unavailable

7

Flat Washer 5 mm, Stainless

234052600

$0.77

8

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

9

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

$54.99

10

Safety Lanyard

278001431

$47.49

11

VENTILATION SWITCH ASS'Y - Call your local BRP dealership

204470011

Unavailable

12

Gasket

204470132

Unavailable

13

BILGE PUMP SWITCH ASS'Y - Call your local BRP dealership

204470099

Unavailable

14

Gasket

204470132

Unavailable

15

LIGHT SWITCH ASS'Y - Call your local BRP dealership

204470100

Unavailable

16

Gasket

204470132

Unavailable

17

HORN SWITCH ASS'Y - Call your local BRP dealership

204470101

$49.99

18

Gasket

204470132

Unavailable

19

COURTESY LIGHT SWITCH ASS'Y - Call your local BRP dealership

204470102

Unavailable

20

Gasket

204470132

Unavailable

21

LOCKING PLATE - Call your local BRP dealership

204470343

Unavailable

22

DC Outlet

710001248

$37.99

23

Oil/Fuel Gauge

204470806

Unavailable

24

Antenna

204470380

Unavailable

25

Speaker

204470378

Unavailable

26

Speedometer Gauge

204470805

Unavailable

27

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable

28

Facia

204470736

Unavailable

29

Tachometer Gauge

204470807

Unavailable

30

Courtesy Light Ass'y | Includes 29 to 30

204470026

$47.49

31

BULB - Call your local BRP dealership

204470081

Unavailable

32

RIVET_POP 1/8 X ,487 - Call your local BRP dealership

293150032

Unavailable

33

HORN - Call your local BRP dealership

204470801

Unavailable

34

Phillips Screw

209934260

Unavailable

35

Hex. Elastic Nut M8

232581600

$1.48

36

Compact Disc Radio

204470682

Unavailable

37

Radio Support

204470688

Unavailable

38

PHILLIPS SCREW M6 X 20 - Call your local BRP dealership

208462060

Unavailable

39

Flat Washer M6, Stainless

234062600

$0.77

40

Hex. Elastic Stop Nut M6

232561600

$1.15

41

Hex. Nut M5

232051600

$1.15

42

Loctite 243, 10 ml

293800060

$21.49

43

Helical Lock Washer M5

234151601

$1.15
