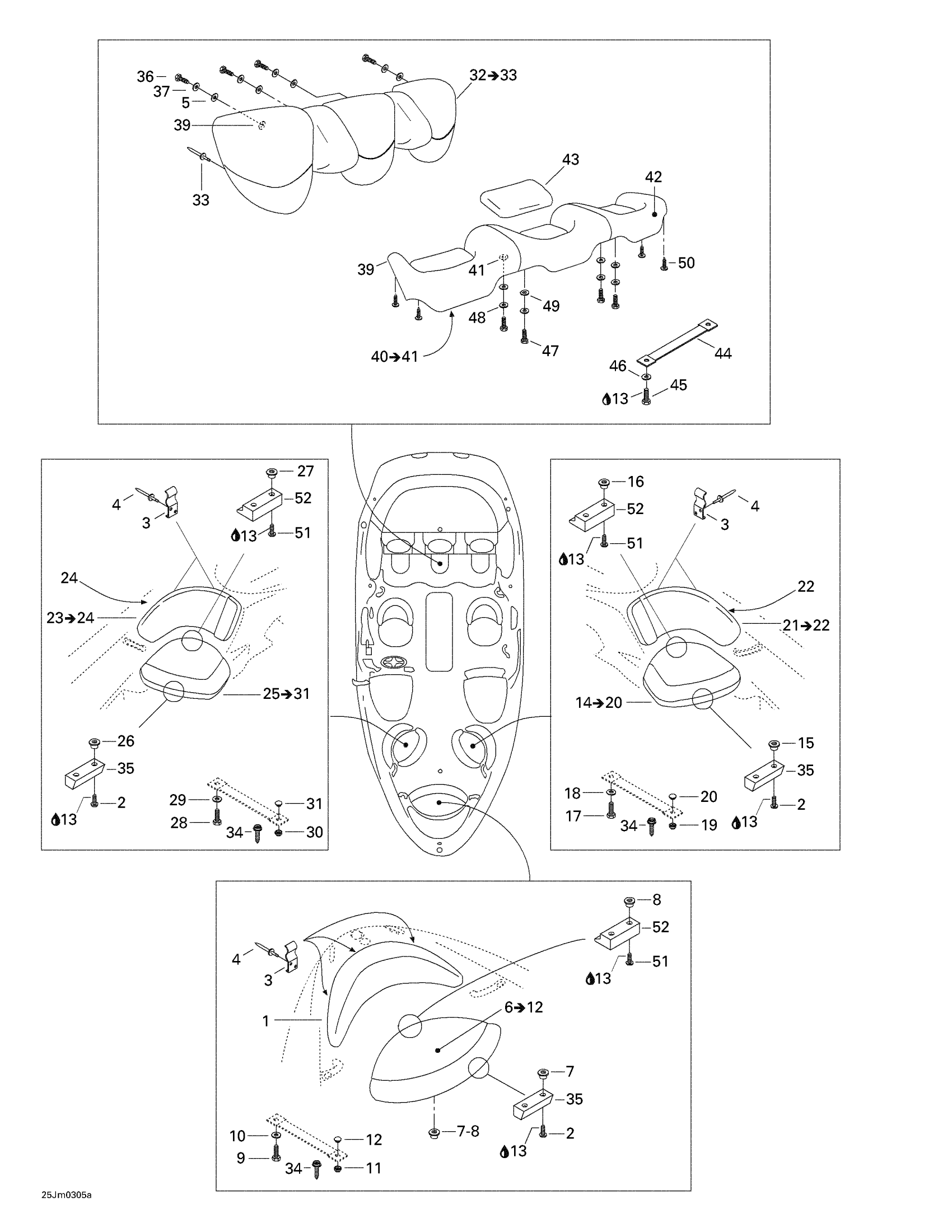

Sea-doo Challenger X, 5778/5779, 2003 09- Seat (front And Rear) Diagram

#

Description
Price

1

Front Backrest Ass’y

204612118

Unavailable

2

Screw 10-32 X 1-1/4”

204100075

Unavailable

3

SEAT SUPPORT - Call your local BRP dealership

269000388

Unavailable

4

Pop Rivet 3/16"

293150043

$2.09

5

Flat Washer 8 mm, Stainless

234082600

$2.43

6

Front Seat Ass’y | Includes 9 to 15

204612121

Unavailable

7

TEE-NUT #10-32 - Call your local BRP dealership

204100044

Unavailable

8

TEE-NUT 1/4?- 20 - Call your local BRP dealership

204100021

Unavailable

9

SCREW 8 X 3/4? - Call your local BRP dealership

204100054

Unavailable

10

Flat Washer 4 mm, Stainless

234042600

$1.15

11

SNAP BASE - Call your local BRP dealership | SE

204000083

Unavailable

12

SNAP COVER - Call your local BRP dealership

204000085

Unavailable

13

Loctite 243, 10 ml

293800060

$21.49

14

LH Seat Ass’Y | Includes 17 to 23

204612123

Unavailable

15

TEE-NUT #10-32 - Call your local BRP dealership

204100044

Unavailable

16

TEE-NUT 1/4?- 20 - Call your local BRP dealership

204100021

Unavailable

17

SCREW 8 X 3/4? - Call your local BRP dealership

204100054

Unavailable

18

Flat Washer 4 mm, Stainless

234042600

$1.15

19

SNAP BASE - Call your local BRP dealership | SE

204000083

Unavailable

20

SNAP COVER - Call your local BRP dealership

204000085

Unavailable

21

LH Backrest Ass'y | Includes 24 to 25

204612125

Unavailable

22

Was 293200017 Neoprene Seal

219704365

$149.99

23

RH Backrest Ass'y | Includes 26 to 27

204612136

Unavailable

24

Was 293200017 Neoprene Seal

219704365

$149.99

25

RH Seat Ass’Y | Includes 28 to 34

204612143

Unavailable

26

TEE-NUT #10-32 - Call your local BRP dealership

204100044

Unavailable

27

TEE-NUT 1/4?- 20 - Call your local BRP dealership

204100021

Unavailable

28

SCREW 8 X 3/4? - Call your local BRP dealership

204100054

Unavailable

29

Flat Washer 4 mm, Stainless

234042600

$1.15

30

SNAP BASE - Call your local BRP dealership | SE

204000083

Unavailable

31

SNAP COVER - Call your local BRP dealership

204000085

Unavailable

32

Rear Backrest Ass’y | Includes 35 to 36

204612144

Unavailable

33

Anchor Washer

204100005

Unavailable

34

Threaded Stud 5/8”

204100046

Unavailable

35

LATCH - Call your local BRP dealership

204611805

Unavailable

36

Hex. Screw M6 X 40, Scotch Grip

207364060

Unavailable

37

Flat Washer M6, Stainless

234062600

$0.77

38

RIVET - Call your local BRP dealership

293150065

Unavailable

39

Rear Seat Ass’y | Includes 41 to 47

204612269

Unavailable

40

Rear Seat Base | Includes 35 - 36.

204610303

Unavailable

41

Anchor Washer

204100005

Unavailable

42

Rear Seat Cover

204612242

Unavailable

43

Rear Seat Cushing

204612243

Unavailable

44

Rear Seat Strap

204612245

Unavailable

45

Hex. Screw M6 X 16

207161660

$1.59

46

Flat Washer M6, Stainless

234062600

$0.77

47

Hex. Screw M6 X 40, Scotch Grip

207364060

Unavailable

48

Flat Washer M6, Stainless

234062600

$0.77

49

WASHER-FENDER/S.S. - Call your local BRP dealership

204100139

Unavailable

50

Dart

293730021

$7.79

51

SCREW 1/4?-20 X 2? - Call your local BRP dealership

204100039

Unavailable

52

SEAT LATCH - Call your local BRP dealership

204611940

Unavailable
