- Challenger X, 5778/5779, 2003
09- Body And Accessories 3

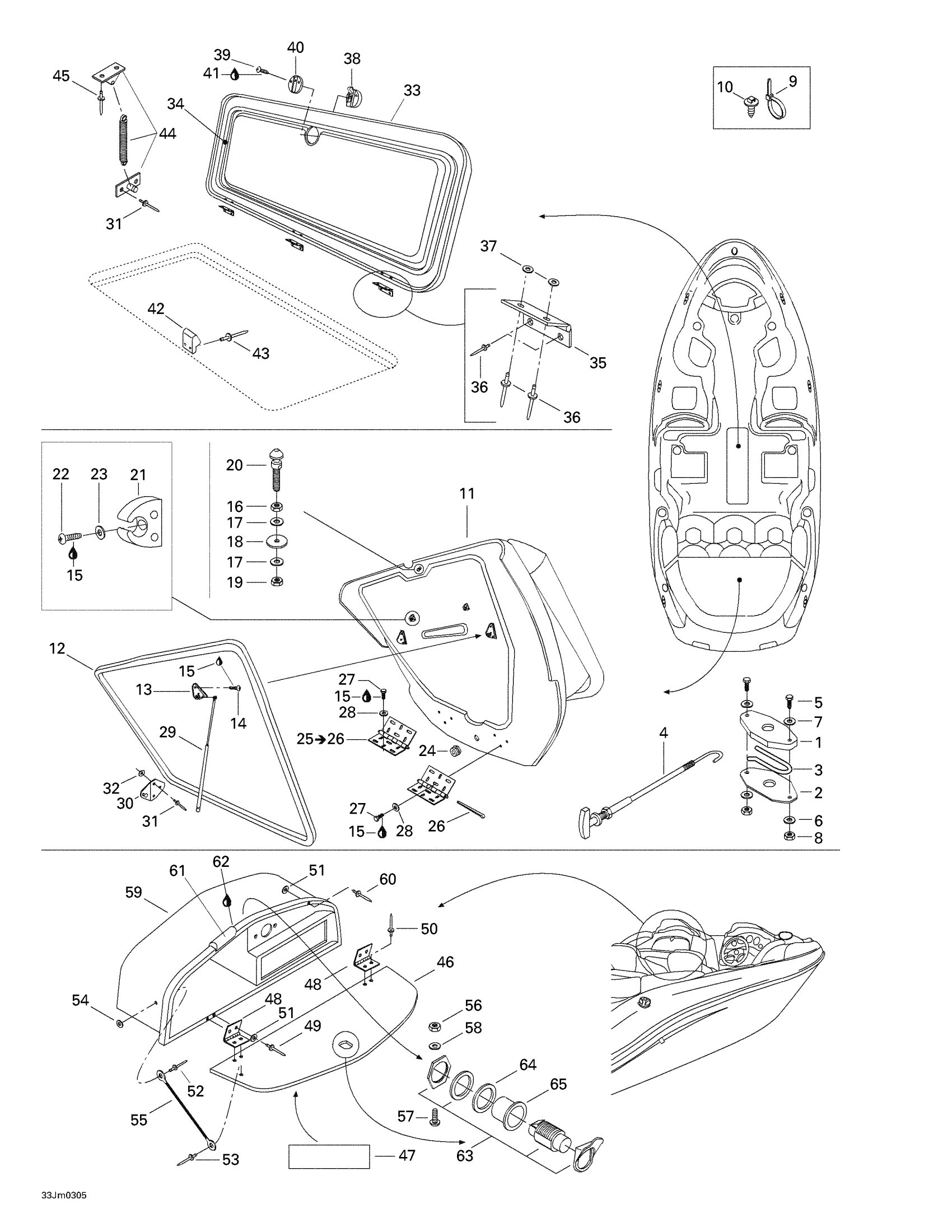

Sea-doo Challenger X, 5778/5779, 2003 09- Body And Accessories 3 Diagram
#
1
LATCH BASE - Call your local BRP dealership
204070037
Unavailable
2
LATCH COVER - Call your local BRP dealership
204070036
Unavailable
3
SPRING - Call your local BRP dealership
204070038
Unavailable
4
LATCH CABLE - Call your local BRP dealership
204070049
Unavailable
5
Hex. Screw M6 X 35
207163560
$1.49
6
Flat Washer M6, Stainless
234062600
$0.77
7
Stainless Flat Washer M6
234061600
$0.33
8
Hex. Elastic Stop Nut M6
232561600
$1.15
9
Tie Wrap 368 mm
293750008
$1.04
Tie-Rap 180 mm
414115200
$0.11
10
Mount Dart
293730040
$1.04
11
Engine Cover
204071226
Unavailable
Engine Cover
204071594
Unavailable
12
Was 293200017 Neoprene Seal
219704365
$149.99
13
Shock Bracket
204073074
$27.99
14
Hex. Screw M4 X 16 | Europe
207141660
$1.47
15
Loctite 243, 10 ml
293800060
$21.49
16
Hex. Jam Nut M10
232100600
$2.22
17
Flat Washer 10 mm, Stainless
234002600
$2.22
18
RUBBER WASHER - Call your local BRP dealership
291000628
Unavailable
19
HEX. ELASTIC NUT M10 - Call your local BRP dealership
232501600
Unavailable
20
Latch Stud
204100065
Unavailable
21
Pole Support
291000642
Unavailable
22
PHILLIPS SCREW M4 X 25 - Call your local BRP dealership
208642560
Unavailable
23
Flat Washer 4 mm
234040600
$0.55
24
GROMMET - Call your local BRP dealership
293720017
Unavailable
25
HINGE ASS'Y - Call your local BRP dealership | Includes 19 to 21
204070127
Unavailable
26
Cotter Pin M2.5 X 12
204070205
Unavailable
27
Hex. Screw M6 X 25
207162560
$1.47
28
Stainless Flat Washer M6
234061600
$0.33
LH RETAINER CYLINDER - Call your local BRP dealership
204071071
Unavailable
RH RETAINER CYLINDER - Call your local BRP dealership
204071052
Unavailable
30
SHOCK BRACKET - Call your local BRP dealership
204070065
Unavailable
31
Pop Rivet 3/16"
293150043
$2.09
32
Flat Washer M5, Stainless
234051600
$0.77
33
CENTER COVER - Call your local BRP dealership
204073144
Unavailable
34
TRAY SEAL, METER - Call your local BRP dealership
293200032
Unavailable
35
HINGE - Call your local BRP dealership
204072601
Unavailable
36
Pop Rivet 3/16"
293150088
$0.99
37
Flat Washer M5, Stainless
234051600
$0.77
38
LATCH, WHITE - Call your local BRP dealership
204070120
Unavailable
39
SCREW M5 X 16 - Call your local BRP dealership
208651660
Unavailable
40
CUP BRACKET - Call your local BRP dealership
204070958
Unavailable
41
ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership
219704457
$54.99
42
LATCH BRACKET - Call your local BRP dealership
204070050
Unavailable
43
RIVET_POP 5/32 - Call your local BRP dealership
293150029
Unavailable
44
SPRING SEAT - Call your local BRP dealership
204000071
Unavailable
45
Pop Rivet 3/16"
204000081
$1.49
46
Tray Door
204071293
Unavailable
47
Emblem «X-20»
204901285
Unavailable
48
HINGE - Call your local BRP dealership
204071462
Unavailable
49
RIVET_POP 1/8 X ,625 - Call your local BRP dealership
293150023
Unavailable
50
Pop Rivet 1/8”
293150063
Unavailable
51
Flat Washer M3, Stainless
234032600
$0.55
52
Pop Rivet 3/16"
293150008
$0.50
53
Pop Rivet 3/16"
293150043
$2.09
54
Flat Washer 5 mm, Stainless
234052600
$0.77
55
RETAINER CABLE - Call your local BRP dealership
204071498
Unavailable
56
Elastic Stop Nut M4
232541600
$1.15
57
Phillips Screw M4 X 12
208641260
$1.03
58
Flat Washer 4 mm
234040600
$0.55
59
Glove Box
204070392
Unavailable
60
RIVET_POP 1/8 X ,750 - Call your local BRP dealership
293150036
Unavailable
61
Neoprene, Meter
204070115
Unavailable
62
Était Was 413705800 Loctite 414 , 29.5 c.c
219704463
$27.99
63
LATCHES KIT, 3 SUB-ASSEMBLIES - Call your local BRP dealership
204070122
Unavailable
64
COMPENSATION GASKET - Call your local BRP dealership
204620045
Unavailable
65
LATCH INSERT - Call your local BRP dealership
204620007
Unavailable
