- Challenger X, 5778/5779, 2003
09- Body And Accessories 2

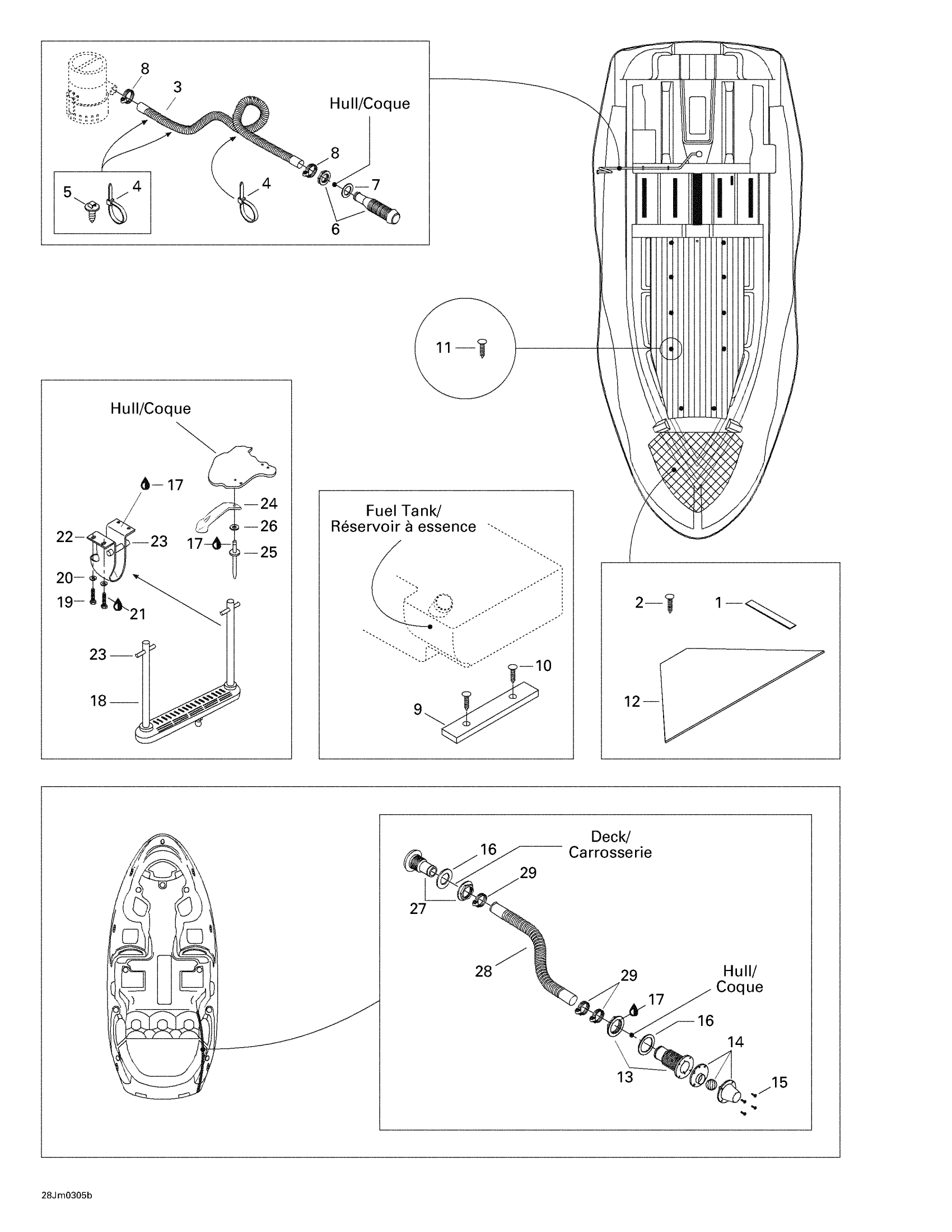

Sea-doo Challenger X, 5778/5779, 2003 09- Body And Accessories 2 Diagram
#
Description
Price
1
Trim Anchor Storage
204050234
Unavailable
2
Black, Dart
293730006
$0.99
3
BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership
291001206
Unavailable
4
Tie-Rap 180 mm
414115200
$0.11
5
Mount Dart
293730040
$1.04
6
Fitting
293710162
$13.49
7
GASKET - Call your local BRP dealership This part replaces 293250251.
293250006
Unavailable
8
Tridon Clamp
293650016
$10.99
9
Rubber Pad
204060701
Unavailable
10
Black, Dart
293730006
$0.99
11
Black, Dart
293730006
$0.99
12
Anchor Storage, Black
204060707
Unavailable
13
THRU HULL FITTING - Call your local BRP dealership
204060071
Unavailable
14
SCUPPER VALVE - Call your local BRP dealership
204060188
Unavailable
15
PHILLIPS SCREW #8 X 1/2, PLASTITE - Call your local BRP dealership | Not Shown
211000180
Unavailable
16
GASKET - Call your local BRP dealership
292800106
Unavailable
17
Silicone Sealant 51388, 300 ml
296000309
$36.99
18
LADDER - Call your local BRP dealership
204060187
Unavailable
19
Hex. Screw M6 X 35
207163560
$1.49
20
Lock Washer Helical M6
234161601
$1.15
21
Loctite 243, 10 ml
293800060
$21.49
22
U-BRACKET - Call your local BRP dealership
204060141
Unavailable
23
ROLL PIN M8 X 55 - Call your local BRP dealership
211300021
Unavailable
24
Hood Latch
570027100
$13.49
25
Pop Rivet 3/16"
293150013
$1.37
26
Flat Washer 5 mm, Stainless
234052600
$0.77
27
FITTING - Call your local BRP dealership
293710060
Unavailable
28
HOSE BILGEFLEX 1-1/2?, METER - Call your local BRP dealership
204070560
Unavailable
29
Norma Clamp
293650074
$17.05
30
Ballast Sack
204060664
Unavailable
31
Ballast Sack Pump
204470658
Unavailable
