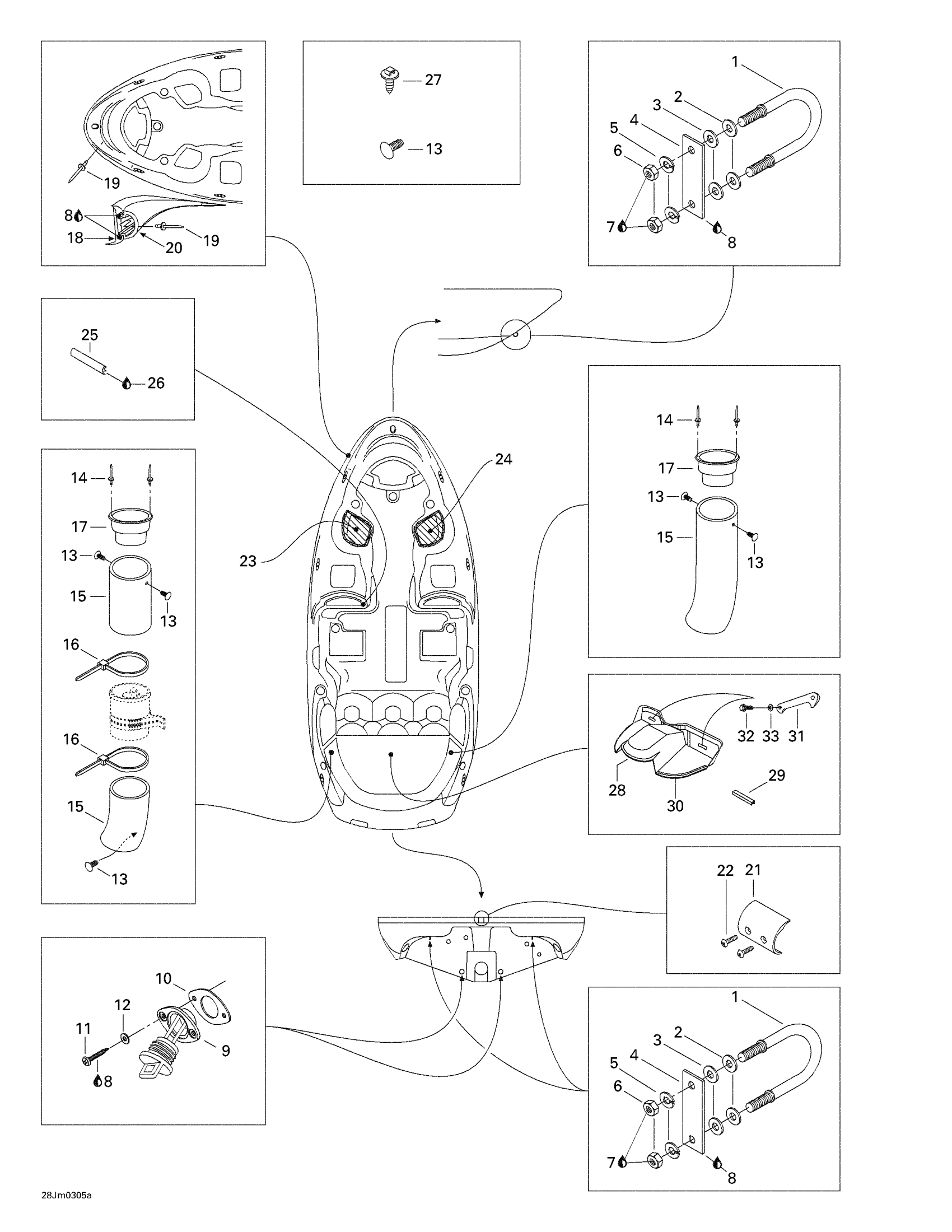

Sea-doo Challenger X, 5778/5779, 2003 Body And Accessories 1 Diagram

#

Description
Price

1

U-CLAMP - Call your local BRP dealership

292000063

Unavailable

2

Flat Washer M8.5 x 18

293050001

$1.29

3

FLAT WASHER, PLASTIC - Call your local BRP dealership

211200029

Unavailable

4

RETAINING PLATE - Call your local BRP dealership

291000307

Unavailable

5

Lock Washer 8 mm, Stainless

234181601

$0.46

6

Hex. Nut M8

232081600

$1.22

7

Loctite 271, 10 ml

293800005

$20.77

8

Silicone Sealant 51388, 300 ml

296000309

$35.72

9

Drain Plug

292000187

$10.21

10

GASKET - Call your local BRP dealership

293250030

Unavailable

11

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable

12

Flat Washer 4 mm, Stainless

234041600

$0.91

13

Black, Dart

293730006

$0.81

14

RIVET_POP 1/8 X ,750 - Call your local BRP dealership

293150036

Unavailable

15

Was 204050122 Vent Hose 4"

219704358

$23.10

16

Tie Wrap 368 mm

293750008

$0.85

17

VENT - 4 OPEN / WHT. - Call your local BRP dealership This part replaces 204050533.

204050803

Unavailable

18

Bumper

204050199

Unavailable

19

Pop Rivet 3/16"

293150013

$1.11

20

Bumper Trim

204050200

Unavailable

21

BUMPER COVER - Call your local BRP dealership

291000905

Unavailable

22

Phillips Tapping Screw M4.2 X 32

209943260

$1.40

23

LH Storage Box Carpet

204050541

Unavailable

24

RH Storage Box Carpet

204050542

Unavailable

25

TRIM, WHITE - Call your local BRP dealership

204050048

Unavailable

26

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

Unavailable

27

Mount Dart

293730040

$0.86

28

Access Cover | 5171 (240 EFI)

204050380

Unavailable

Access Cover

204050482

Unavailable

29

Trim, Meter

204050213

Unavailable

30

Seal Tray 1000Mm Long

219704368

$12.30

31

Black, Handle - Call your local BRP dealership

204050159

Unavailable

32

Hex. Flange Screw K40 X 16

241141660

$1.25

33

Flat Washer 4 mm, Stainless

234042600

$0.92
