- Challenger X, 250 Optimax, 2005
10- Electrical System

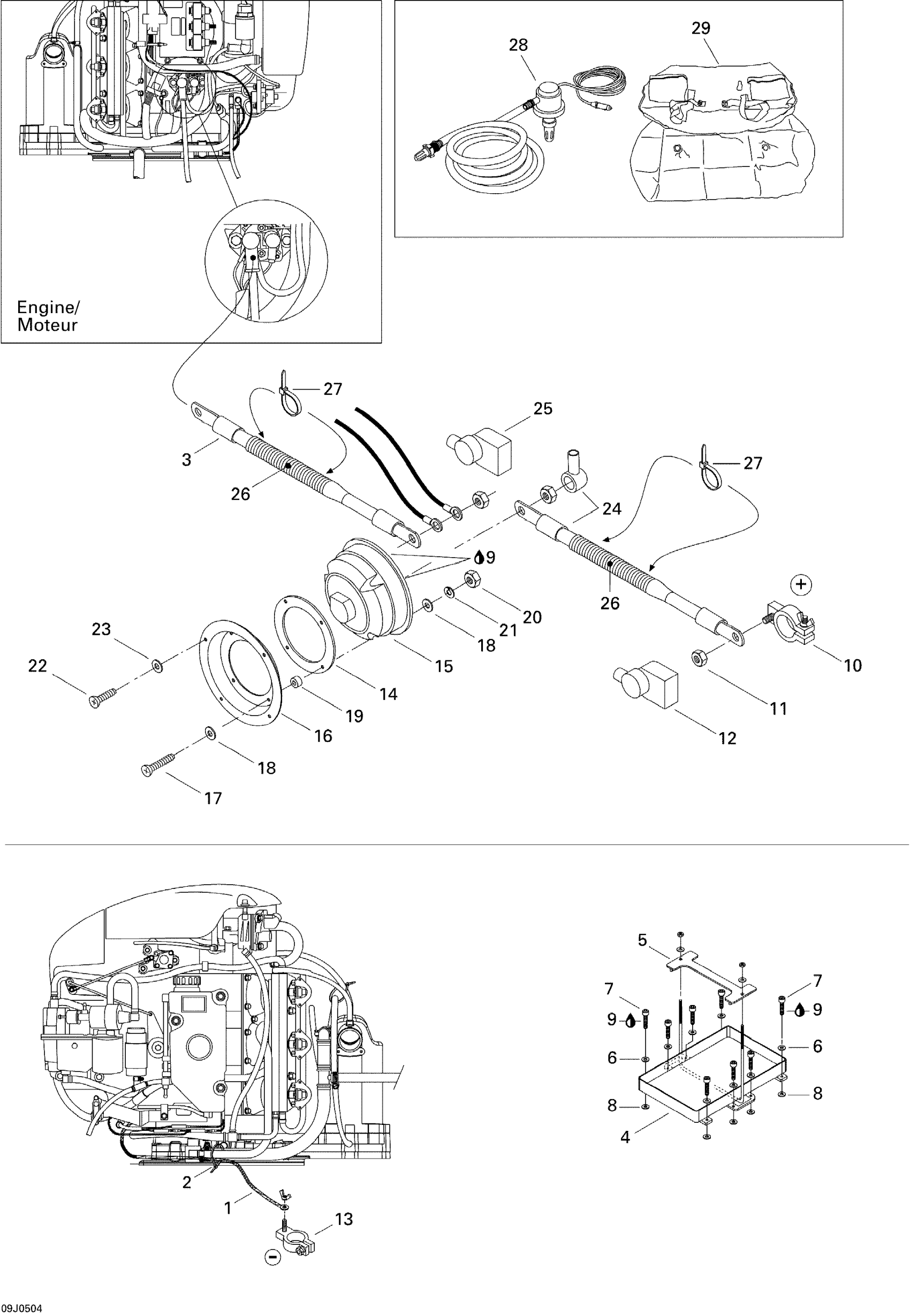

Sea-doo Challenger X, 250 Optimax, 2005 10- Electrical System Diagram
#
Description
Price
1
Battery Ground Cable
204470389
Unavailable
2
Tie Wrap 142 mm
293750002
$1.25
3
Positive Cable, Red
204470386
Unavailable
4
BATTERY SUPPORT - Call your local BRP dealership
204471008
Unavailable
5
TOP BATTERY SUPPORT - Call your local BRP dealership
204471290
Unavailable
6
FLAT WASHER - Call your local BRP dealership
204100069
Unavailable
7
Socket Head Screw M6 X 25
205062560
$1.69
8
FLAT WASHER, PLASTIC - Call your local BRP dealership
211200029
Unavailable
9
Loctite 243, 10 ml
293800060
$21.49
10
POSITIVE BATTERY POLE - Call your local BRP dealership
204470349
Unavailable
11
HEX. NUT 3/8-16 - Call your local BRP dealership
211100063
Unavailable
12
Red Boot
204470388
Unavailable
13
NEGATIVE BATTERY POLE - Call your local BRP dealership
204470348
Unavailable
14
SWITCH ADAPTOR - Call your local BRP dealership
204470813
Unavailable
15
BATTERY SWITCH - Call your local BRP dealership
204470814
Unavailable
16
SWITCH SUPPORT - Call your local BRP dealership
204470259
Unavailable
17
SOCKET HEAD SCREW M5 X 50 - Call your local BRP dealership
205455060
Unavailable
18
Flat Washer M5, Stainless
234051600
$0.77
19
NYLON SPACER - Call your local BRP dealership
204470330
Unavailable
20
Hex. Nut M5
232051600
$1.15
21
Helical Lock Washer M5
234151601
$1.15
22
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership
209642560
Unavailable
23
Flat Washer 4 mm, Stainless
234041600
$1.15
24
Switch Cable, Positive
204470640
Unavailable
25
Red Boot
204470388
Unavailable
26
SLIT CONDUIT, METER - Call your local BRP dealership
204550015
Unavailable
27
Tie Wrap 94 mm | 4X4
293750001
$1.03
28
Ballast Sack Pump
204470658
Unavailable
29
Ballast Sack
204060664
Unavailable
