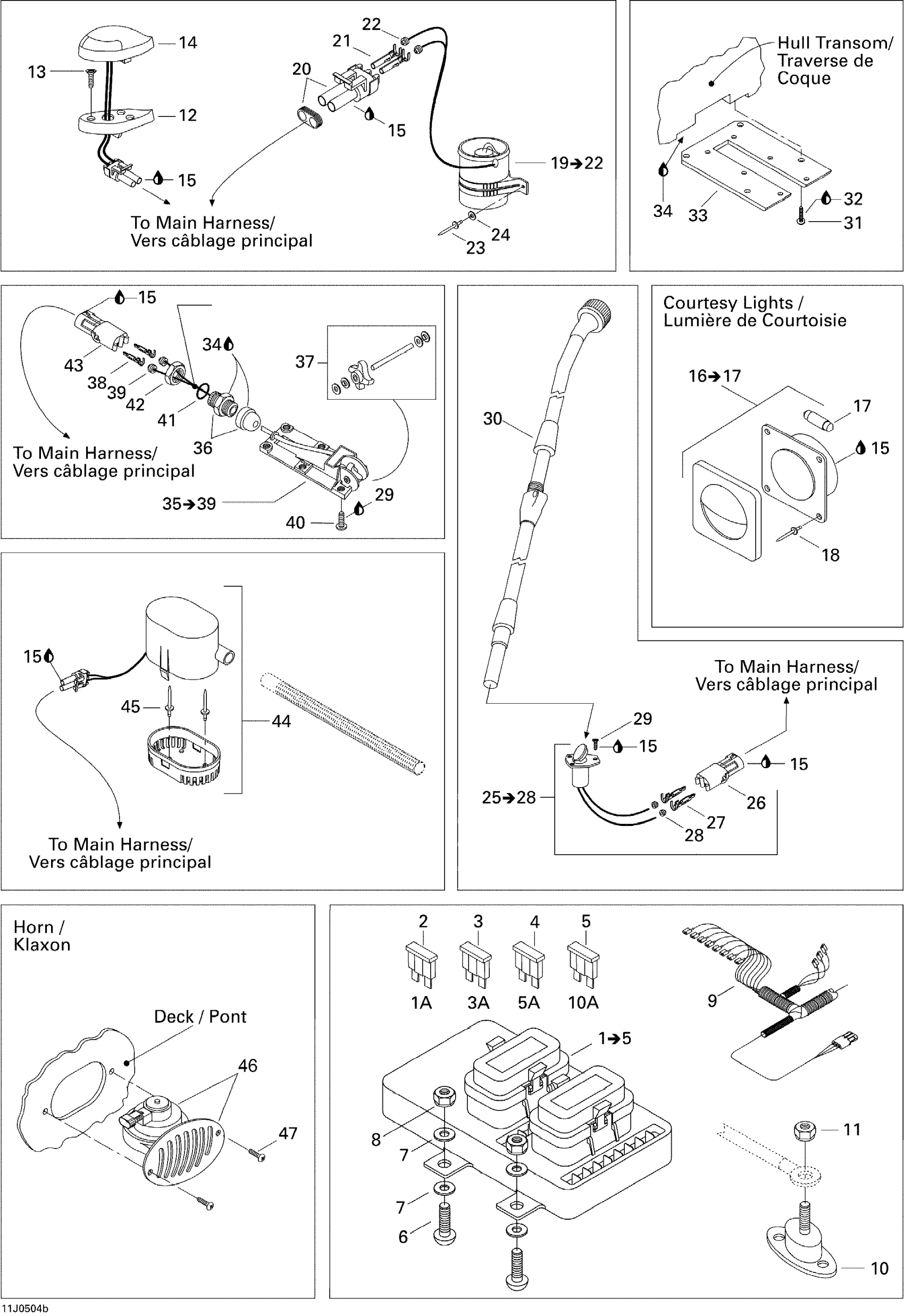

Sea-doo Challenger X, 250 Optimax, 2005 10- Electrical Accessories 2 Diagram

#

Description
Price

1

FUSE BLOCK - Call your local BRP dealership

204470815

Unavailable

2

FUSE, 1 AMPERE - Call your local BRP dealership

409012800

Unavailable

3

FUSE, 3 AMPERES - Call your local BRP dealership | CE

278001196

Unavailable

4

Fuse, 5 Amperes | CE

278000344

$3.28

5

Fuse, 10 Amperes | North America

278001197

$2.21

6

PHILLIPS SCREW M6 X 25 - Call your local BRP dealership

208662560

Unavailable

7

Flat Washer M6, Stainless

234062600

$0.77

8

Hex. Elastic Stop Nut M6

232561600

$1.15

9

Accessories Harness

204470835

Unavailable

10

Ground Post

204470715

Unavailable

11

HEX. ELASTIC NUT 3/8 - Call your local BRP dealership

204100032

Unavailable

12

FRONT LAMP SUPPORT - Call your local BRP dealership

204470072

Unavailable

13

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable

14

Front Lamp

204470311

Unavailable

15

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

16

Courtesy Light Ass'y | Includes 29 to 30

204470026

$47.49

17

BULB - Call your local BRP dealership

204470081

Unavailable

18

RIVET_POP 1/8 X ,487 - Call your local BRP dealership

293150032

Unavailable

19

Fan Ass'y | Includes 44 to 47

204470108

$144.99

20

Male Connector, 2 Circuits

278000220

$15.49

21

Female Terminal

278000223

$3.19

22

Wire Seal

278000218

$4.39

23

Pop Rivet 3/16"

293150008

$0.50

24

Flat Washer 5 mm, Stainless

234052600

$0.77

25

Rear Light Base Ass'y | Includes 33 to 36

278000674

Unavailable

26

Female Housing, 2 Circuits

278000217

$9.59

27

Male Terminal | XT Models

278000222

$3.19

28

Wire Seal

278000218

$4.39

29

Phillips Tapping Screw M4.2 X 32

209943260

$1.47

30

Rear Lamp Pole 62" | Speedster With Tower

204470817

Unavailable

31

Phillips Screw M6 X 35 | W/O Weedless System

208563560

$2.00

32

Loctite 243, 10 ml

293800060

$21.49

33

Sensor Support

204470538

Unavailable

34

Silicone Sealant 51388, 300 ml

296000309

$36.99

35

SPEED SENSOR ASS'Y - Call your local BRP dealership | Includes 34 to 35

278001997

Unavailable

36

ELECTRIC CONNECTION - Call your local BRP dealership

293710031

Unavailable

37

Paddle Wheel Kit

295500108

Unavailable

38

Male Terminal | XT Models

278000222

$3.19

39

Wire Seal

278000218

$4.39

40

PHILLIPS SCREW M5 X 10 - Call your local BRP dealership

208551060

Unavailable

41

SEAL WASHER - Call your local BRP dealership

278000416

Unavailable

42

LOCKING NUT - Call your local BRP dealership

293710032

Unavailable

43

Female Housing, 2 Circuits

278000217

$9.59

44

Bilge Pump

204471431

Unavailable

45

RIVET_POP 5/32 - Call your local BRP dealership

293150029

Unavailable

46

HORN - Call your local BRP dealership

204470801

Unavailable

47

Phillips Tapping Screw M4.2 X 32

209943260

$1.47
