10- Electrical Accessories 1

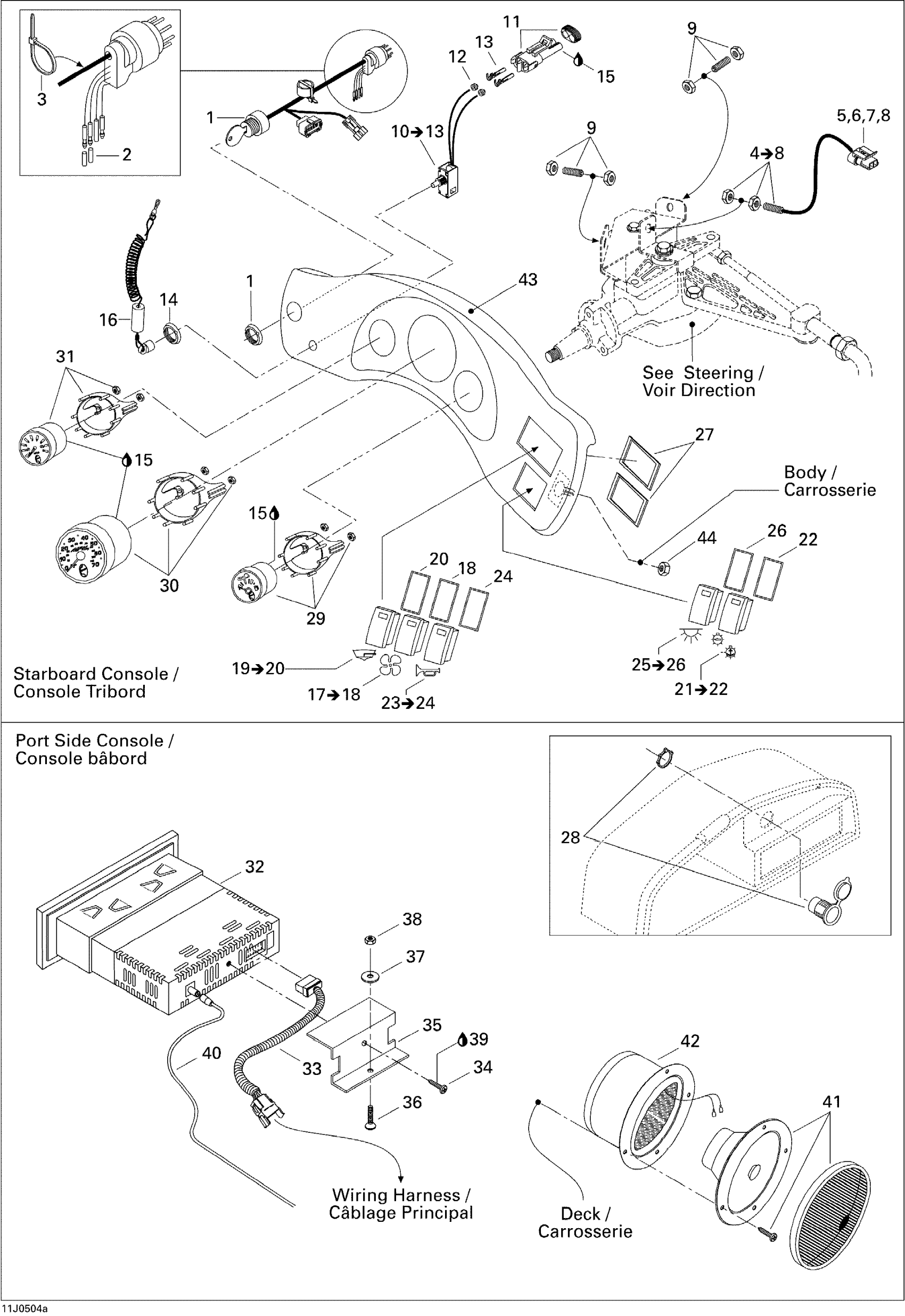

Sea-doo Challenger X, 250 Optimax, 2005 10- Electrical Accessories 1 Diagram
#
1
Instrument Harness, Mercury
204470800
Unavailable
2
RUBBER CAP - Call your local BRP dealership
204130033
Unavailable
3
Tie Wrap 94 mm | 4X4
293750001
$1.03
4
LOW SPEED CONTROL SENSOR ASS'Y - Call your local BRP dealership | Includes 46 to 50
204470631
Unavailable
5
Female Terminal Housing
204470634
Unavailable
6
Terminal Support
204470635
Unavailable
7
Wire Seal
204470641
Unavailable
8
Female Terminal
278001481
$3.49
9
Low Speed Control Actuator
204470632
$42.99
10
SAFETY SWITCH ASS'Y - Call your local BRP dealership | Includes 10 to 13
204470867
Unavailable
11
Male Connector, 2 Circuits
278000220
$15.49
12
Wire Seal
278000218
$4.39
13
Female Terminal
278000223
$3.19
14
Safety Switch Nut
278000099
Unavailable
15
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
16
Safety Lanyard
278001431
$47.49
17
VENTILATION SWITCH ASS'Y - Call your local BRP dealership
204470011
Unavailable
18
Gasket
204470132
Unavailable
19
BILGE PUMP SWITCH ASS'Y - Call your local BRP dealership
204470099
Unavailable
20
Gasket
204470132
Unavailable
21
LIGHT SWITCH ASS'Y - Call your local BRP dealership
204470100
Unavailable
22
Gasket
204470132
Unavailable
23
HORN SWITCH ASS'Y - Call your local BRP dealership
204470101
$49.99
24
Gasket
204470132
Unavailable
25
COURTESY LIGHT SWITCH ASS'Y - Call your local BRP dealership
204470102
Unavailable
26
Gasket
204470132
Unavailable
27
LOCKING PLATE - Call your local BRP dealership
204470343
Unavailable
28
DC Outlet
710001248
$37.99
29
FUEL/OIL GAUGE - Call your local BRP dealership
204470960
Unavailable
30
Speedometer Gauge
204470961
Unavailable
31
Tachometer Gauge
204470962
Unavailable
32
Compact Disk Stereo
204470946
Unavailable
33
Stereo Adaptor Harness
204470930
Unavailable
34
Pan Head Screw M5x8
204100148
Unavailable
35
Radio Support
204470688
Unavailable
36
PHILLIPS SCREW M6 X 20 - Call your local BRP dealership
208462060
Unavailable
37
Flat Washer M6, Stainless
234062600
$0.77
38
Hex. Elastic Stop Nut M6
232561600
$1.15
39
Loctite 243, 10 ml
293800060
$21.49
40
Antenna
204470931
Unavailable
41
Speaker, White
204470948
Unavailable
42
SPEAKER COVER ASS'Y - Call your local BRP dealership
204470982
Unavailable
43
Facia
204470736
Unavailable
44
Hex. Elastic Nut M8
232581600
$1.48
