- Challenger X, 250 Optimax, 2005
09- Ski Shaft and Glove Box

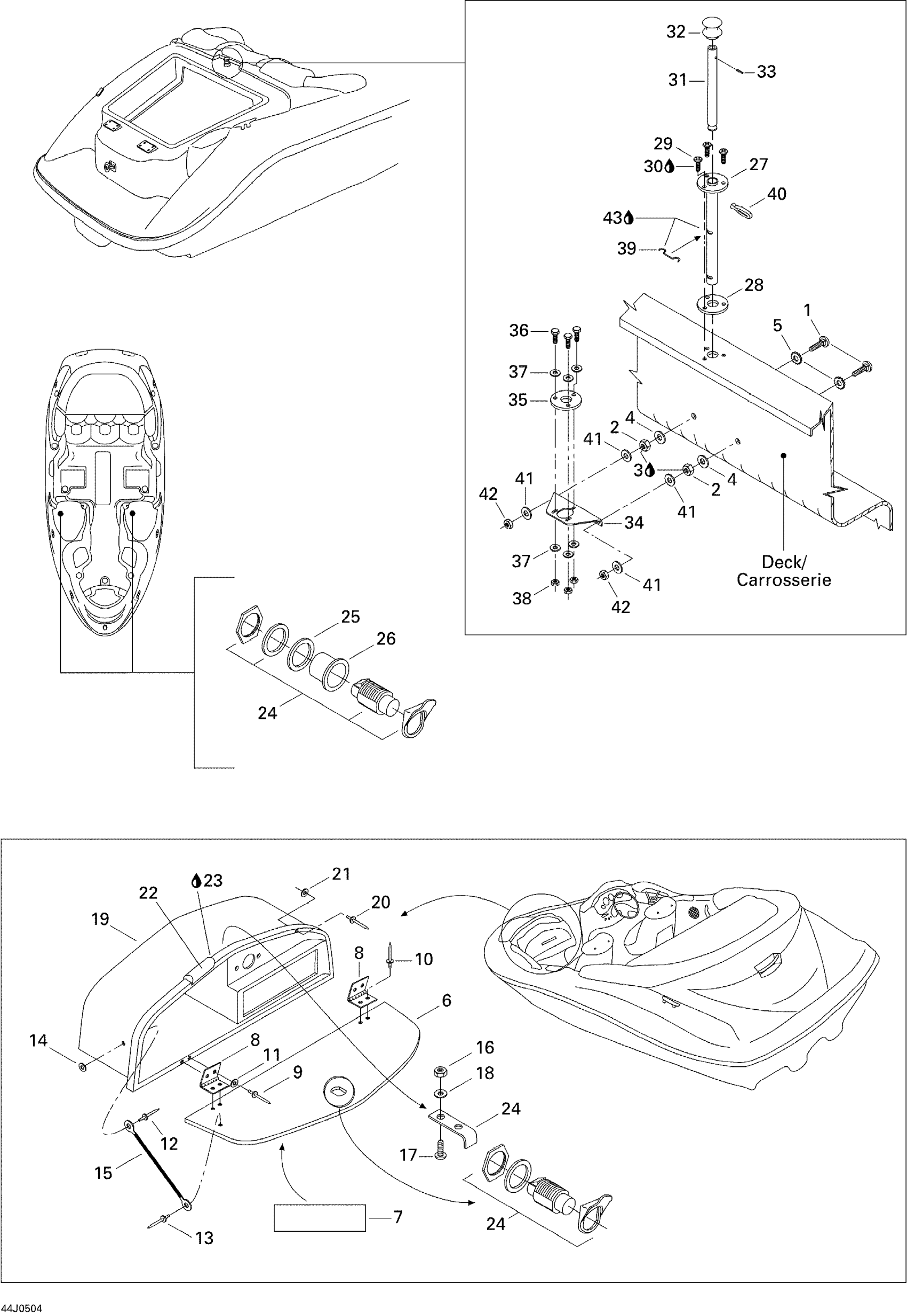

Sea-doo Challenger X, 250 Optimax, 2005 09- Ski Shaft and Glove Box Diagram
#
1
Elevator Bolt
204000130
Unavailable
2
HEX. NUT 1/4 - Call your local BRP dealership
211100026
Unavailable
3
Loctite 271, 10 ml
293800005
$26.99
4
Flat Washer M6, Stainless
234062600
$0.77
5
EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership
211200054
Unavailable
6
Tray Door
204071293
Unavailable
7
Emblem «X-20»
204901285
Unavailable
8
HINGE - Call your local BRP dealership
204071462
Unavailable
9
RIVET_POP 1/8 X ,625 - Call your local BRP dealership
293150023
Unavailable
10
Pop Rivet 1/8”
293150063
Unavailable
11
Flat Washer M3, Stainless
234032600
$0.55
12
Pop Rivet 3/16"
293150008
$0.50
13
Pop Rivet 3/16"
293150043
$2.09
14
Flat Washer 5 mm, Stainless
234052600
$0.77
15
RETAINER CABLE - Call your local BRP dealership
204071498
Unavailable
16
Elastic Stop Nut M4
232541600
$1.15
17
Phillips Screw M4 X 12
208641260
$1.03
18
Flat Washer 4 mm
234040600
$0.55
19
Glove Box
204070392
Unavailable
20
RIVET_POP 1/8 X ,750 - Call your local BRP dealership
293150036
Unavailable
21
Flat Washer M3, Stainless
234032600
$0.55
22
Neoprene, Meter
204070115
Unavailable
23
Était Was 413705800 Loctite 414 , 29.5 c.c
219704463
$27.99
24
LATCHES KIT, 3 SUB-ASSEMBLIES - Call your local BRP dealership
204070122
Unavailable
25
COMPENSATION GASKET - Call your local BRP dealership
204620045
Unavailable
26
LATCH INSERT - Call your local BRP dealership
204620007
Unavailable
27
FIXED TUBE - Call your local BRP dealership
291001057
Unavailable
28
RUBBER WASHER - Call your local BRP dealership
293830045
Unavailable
29
PHILLIPS SCREW M6 X 40 - Call your local BRP dealership
208564060
Unavailable
30
Loctite 243, 10 ml
293800060
$21.49
31
SKI SHAFT - Call your local BRP dealership
204072616
Unavailable
32
SKI SHAFT CAP - Call your local BRP dealership
293000004
Unavailable
33
ROLLED PIN M3 X 30 - Call your local BRP dealership
211400004
Unavailable
34
Fixation Plate
204071675
Unavailable
35
RETAINER WASHER - Call your local BRP dealership
291001060
Unavailable
36
Hex. Forming Screw M6 X 20
207162060
$1.29
37
Flat Washer M6, Stainless
234062600
$0.77
38
Hex. Elastic Stop Nut M6
232561600
$1.15
39
SPRING - Call your local BRP dealership
291001205
Unavailable
40
Windshield Latch
570023800
$4.49
41
Flat Washer M6, Stainless
234062600
$0.77
42
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership
212000005
Unavailable
43
Synthetic Grease, 400 G
293550010
Unavailable
