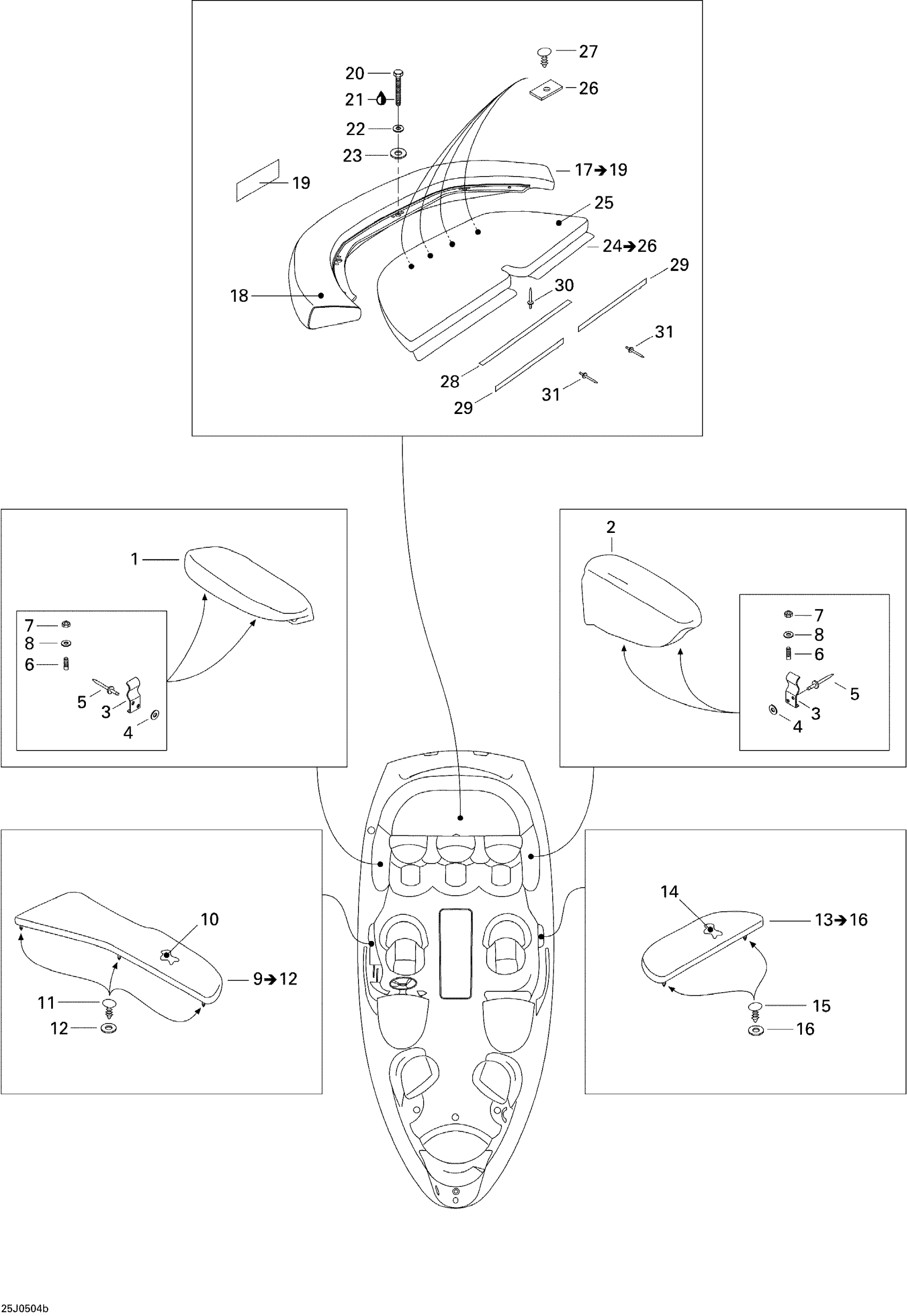

Sea-doo Challenger X, 250 Optimax, 2005 09- Seat 2 Diagram
#
Description
Price
1
RH Back Armrest Ass’y
204612246
Unavailable
2
LH Back Armrest Ass’y
204612248
Unavailable
3
SEAT SUPPORT - Call your local BRP dealership
269000388
Unavailable
4
Stainless Flat Washer M6
234061600
$0.33
5
Pop Rivet 3/16"
293150043
$2.09
6
Socket Set Screw M5 X 40, Scotch Grip
206254069
Unavailable
7
Hex. Elastic Nut M5 | X
232551600
$1.15
8
Flat Washer 5 mm, Stainless
234052600
$0.77
9
RH Elbowrest Ass'y | Includes 9 to 12
204612250
Unavailable
10
Neoprene Foam
204610121
Unavailable
11
Black, Dart
293730006
$0.99
12
Flat Washer M6, Stainless
234062600
$0.77
13
LH Elbowrest Ass'y | Includes 13 to 16
204612252
Unavailable
14
Neoprene Foam
204610123
Unavailable
15
Black, Dart
293730006
$0.99
16
Flat Washer M6, Stainless
234062600
$0.77
17
Spoiler Ass'y | Includes 17 to 19
204612265
Unavailable
18
Spoiler Cover
204612266
Unavailable
19
Staple Cover, Meter
204610184
Unavailable
20
Hex. Screw M6 X 25, Scotch Grip | With Catalyst
207362560
$1.47
21
Loctite 243, 10 ml
293800060
$21.49
22
Flat Washer M6, Stainless
234062600
$0.77
23
Flat Washer 10 mm, Stainless
234002600
$2.22
24
Platform Ass'y | Includes 24 to 26
204613170
Unavailable
25
Platform Cover
204612268
Unavailable
26
Strap
204610194
Unavailable
27
Black, Dart
293730006
$0.99
28
Velcro 25 Mm X 940 Mm
204611298
Unavailable
29
Velcro 25 Mm X 635 Mm
204611299
Unavailable
30
POP RIVET 3/16 - Call your local BRP dealership
204130050
Unavailable
31
Pop Rivet 3/16"
293150008
$0.50
