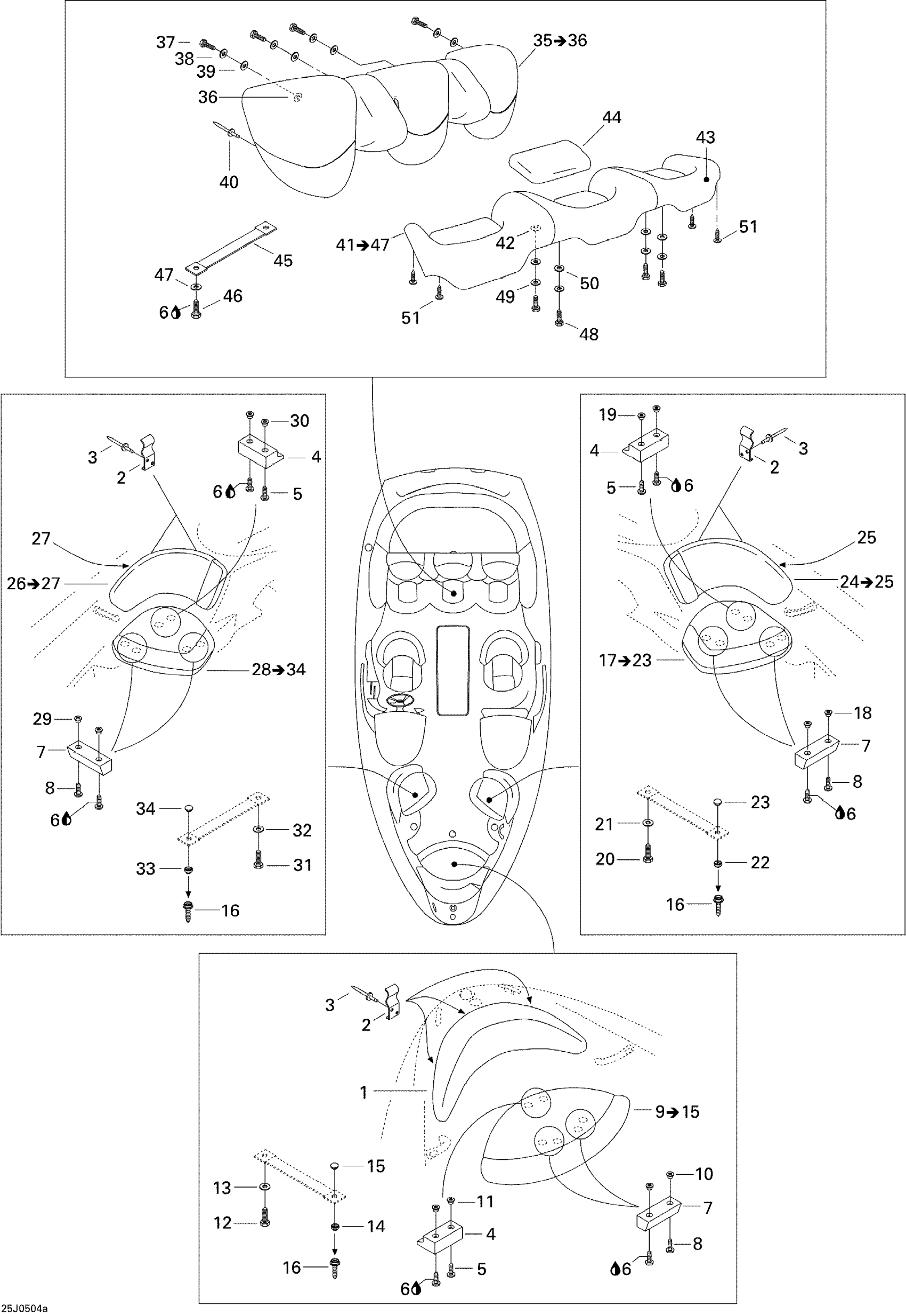

Sea-doo Challenger X, 250 Optimax, 2005 09- Seat 1 Diagram
#
1
Front Backrest Ass’y
204612118
Unavailable
2
SEAT SUPPORT - Call your local BRP dealership
269000388
Unavailable
3
Pop Rivet 3/16"
293150043
$2.09
4
SEAT LATCH - Call your local BRP dealership
204611940
Unavailable
5
SCREW 1/4?-20 X 2? - Call your local BRP dealership
204100039
Unavailable
6
Loctite 243, 10 ml
293800060
$21.49
7
LATCH - Call your local BRP dealership
204611805
Unavailable
8
Screw 10-32 X 1-1/4”
204100075
Unavailable
9
Front Seat Ass'y, Center | Includes 9 to 15
204612890
Unavailable
10
TEE-NUT #10-32 - Call your local BRP dealership
204100044
Unavailable
11
TEE-NUT 1/4?- 20 - Call your local BRP dealership
204100021
Unavailable
12
SCREW 8 X 3/4? - Call your local BRP dealership
204100054
Unavailable
13
Flat Washer 4 mm, Stainless
234042600
$1.15
14
SNAP BASE - Call your local BRP dealership | SE
204000083
Unavailable
15
SNAP COVER - Call your local BRP dealership
204000085
Unavailable
16
Threaded Stud 5/8”
204100046
Unavailable
17
Front Seat Ass'y, Port | Includes 17 to 23
204612892
Unavailable
18
TEE-NUT #10-32 - Call your local BRP dealership
204100044
Unavailable
19
TEE-NUT 1/4?- 20 - Call your local BRP dealership
204100021
Unavailable
20
SCREW 8 X 3/4? - Call your local BRP dealership
204100054
Unavailable
21
Flat Washer 4 mm, Stainless
234042600
$1.15
22
SNAP BASE - Call your local BRP dealership | SE
204000083
Unavailable
23
SNAP COVER - Call your local BRP dealership
204000085
Unavailable
24
Backrest Ass'y, Port | Includes 24 to 25
204612894
Unavailable
25
Was 293200017 Neoprene Seal
219704365
$149.99
26
Backrest Ass'y, Starboard | Includes 26 to 27
204612896
Unavailable
27
Was 293200017 Neoprene Seal
219704365
$149.99
28
Front Seat Ass'y, Starboard | Includes 28 to 34
204612898
Unavailable
29
TEE-NUT #10-32 - Call your local BRP dealership
204100044
Unavailable
30
TEE-NUT 1/4?- 20 - Call your local BRP dealership
204100021
Unavailable
31
SCREW 8 X 3/4? - Call your local BRP dealership
204100054
Unavailable
32
Flat Washer 4 mm, Stainless
234042600
$1.15
33
SNAP BASE - Call your local BRP dealership | SE
204000083
Unavailable
34
SNAP COVER - Call your local BRP dealership
204000085
Unavailable
35
Rear Backrest | Includes 35 to 36
204612900
Unavailable
36
Anchor Washer
204100005
Unavailable
37
Hex. Screw M6 X 40, Scotch Grip
207364060
Unavailable
38
Flat Washer M6, Stainless
234062600
$0.77
39
Flat Washer 8 mm, Stainless
234082600
$2.43
40
RIVET - Call your local BRP dealership
293150065
Unavailable
41
Rear Seat Ass’y | Includes 41 to 47
204612269
Unavailable
42
Anchor Washer
204100005
Unavailable
43
Rear Seat Cover
204612242
Unavailable
44
Rear Seat Cushing
204612243
Unavailable
45
Rear Seat Strap
204612245
Unavailable
46
Hex. Screw M6 X 16
207161660
$1.59
47
Flat Washer M6, Stainless
234062600
$0.77
48
Hex. Screw M6 X 40, Scotch Grip
207364060
Unavailable
49
Flat Washer M6, Stainless
234062600
$0.77
50
WASHER-FENDER/S.S. - Call your local BRP dealership
204100139
Unavailable
51
Dart
293730021
$7.79
