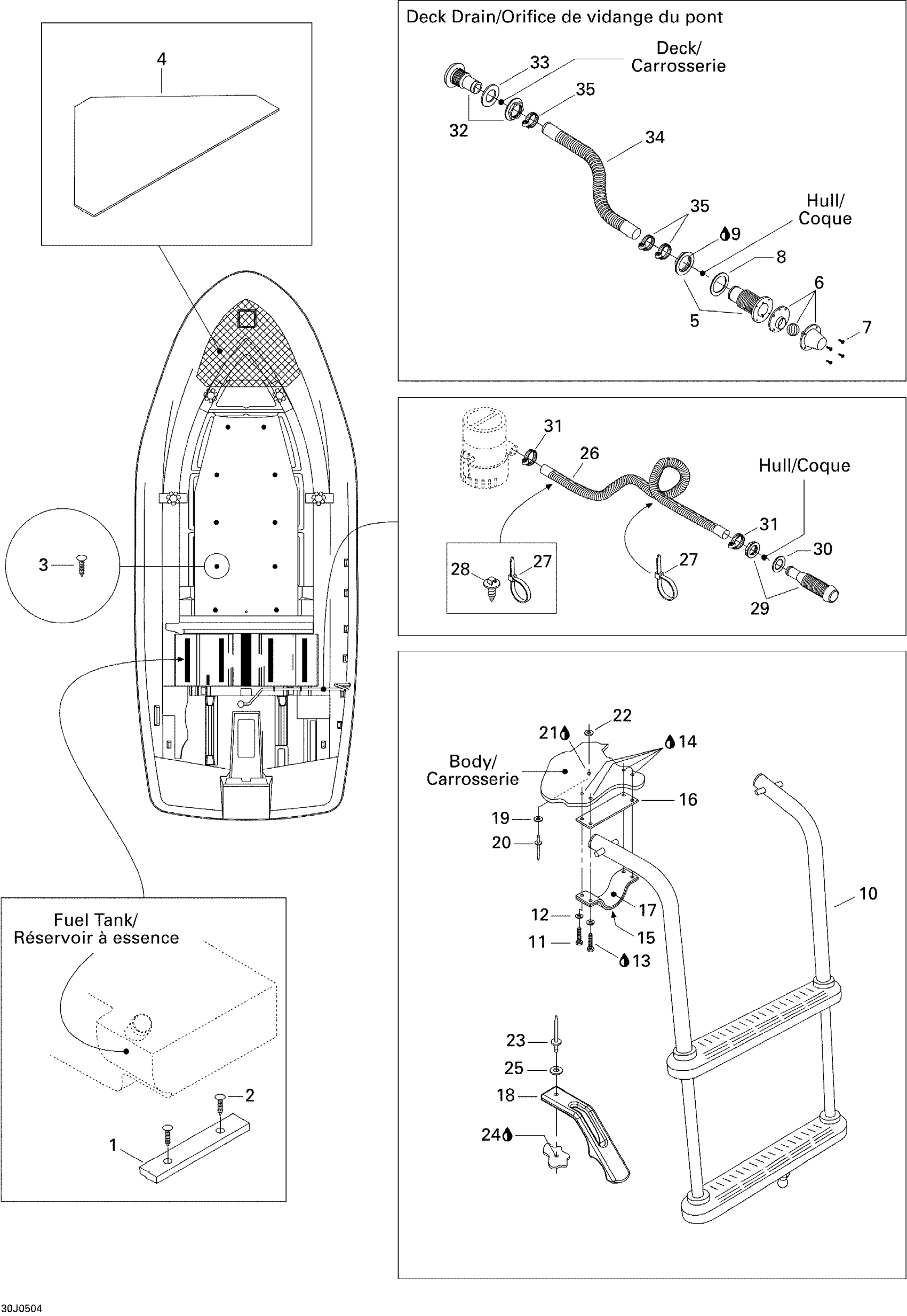

Sea-doo Challenger X, 250 Optimax, 2005 Lower Hull And Ladder Diagram

#

Description
Price

1

Rubber Pad

204060701

Unavailable

2

Black, Dart

293730006

$0.99

3

Black, Dart

293730006

$0.99

4

Anchor Storage, Black

204060707

Unavailable

5

THRU HULL FITTING - Call your local BRP dealership

204060071

Unavailable

6

SCUPPER VALVE - Call your local BRP dealership

204060188

Unavailable

7

PHILLIPS SCREW #8 X 1/2, PLASTITE - Call your local BRP dealership | Not Shown

211000180

Unavailable

8

GASKET - Call your local BRP dealership

292800106

Unavailable

9

Silicone Sealant 51388, 300 ml

296000309

$36.99

10

LADDER - Call your local BRP dealership

204060186

Unavailable

11

Hex. Screw M6 X 35

207163560

$1.49

12

Lock Washer Helical M6

234161601

$1.15

13

Loctite 243, 10 ml

293800060

$21.49

14

Silicone Sealant 51388, 300 ml

296000309

$36.99

15

LADDER CLIP - Call your local BRP dealership

204060055

Unavailable

16

PROTECTOR 97 - Call your local BRP dealership

204060057

Unavailable

17

PROTECTOR 158 - Call your local BRP dealership

204060056

Unavailable

18

Hood Latch

570027100

$13.49

19

Flat Washer M6, Stainless

234062600

$0.77

20

Pop Rivet 3/16"

293150043

$2.09

21

Silicone Sealant 51388, 300 ml

296000309

$36.99

22

Flat Washer M5, Stainless

234051600

$0.77

23

Pop Rivet 3/16"

293150013

$1.37

24

Silicone Sealant 51388, 300 ml

296000309

$36.99

25

Flat Washer 5 mm, Stainless

234052600

$0.77

26

BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership

291001206

Unavailable

27

Tie-Rap 180 mm

414115200

$0.11

28

Mount Dart

293730040

$1.04

29

Fitting

293710162

$13.49

30

GASKET - Call your local BRP dealership This part replaces 293250251.

293250006

Unavailable

31

Tridon Clamp

293650016

$10.99

32

FITTING - Call your local BRP dealership

293710060

Unavailable

33

GASKET - Call your local BRP dealership

292800106

Unavailable

34

HOSE BILGEFLEX 1-1/2?, METER - Call your local BRP dealership

204070560

Unavailable

35

Norma Clamp

293650074

$17.05
