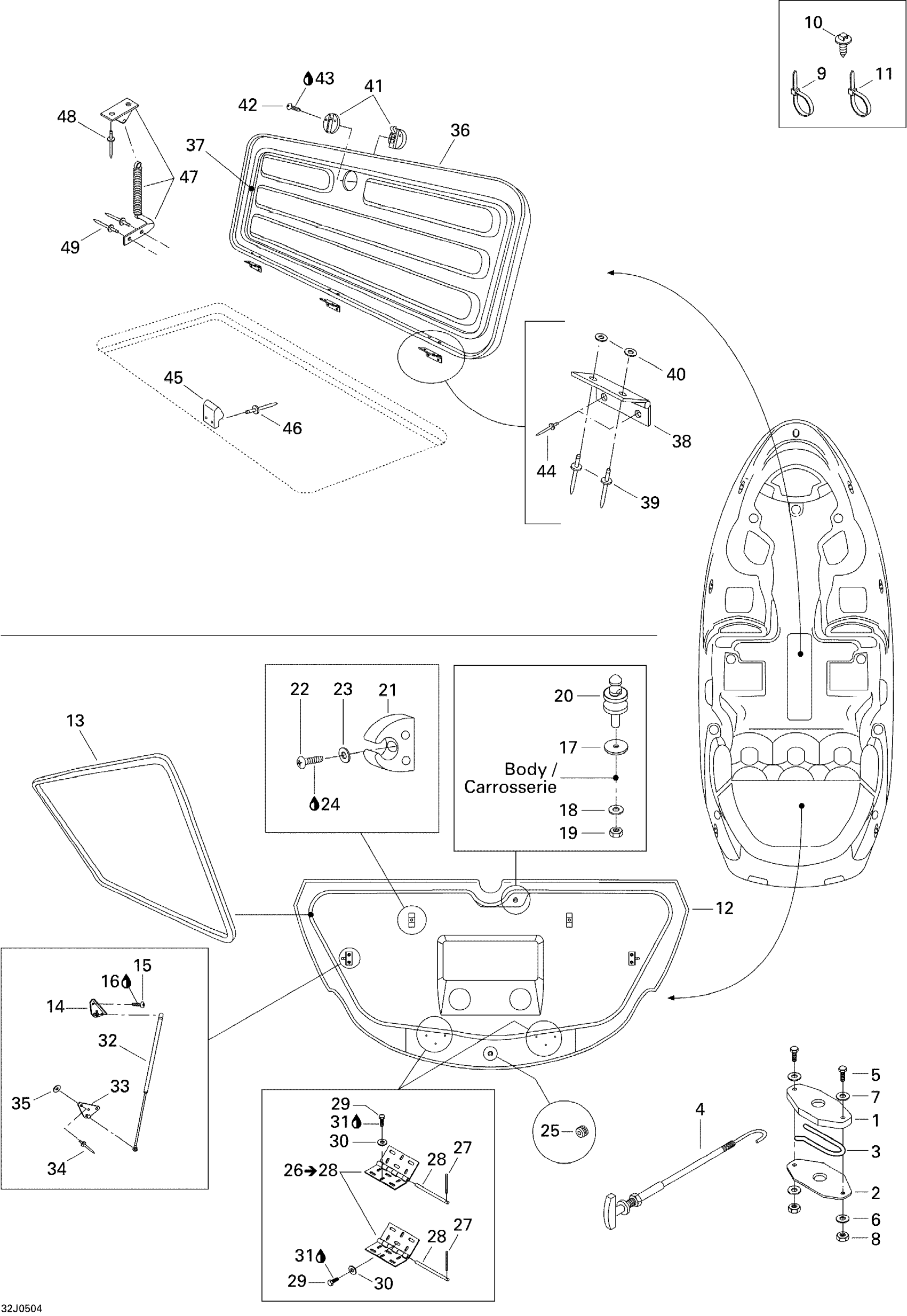

Sea-doo Challenger X, 250 Optimax, 2005 Engine Compartment And Central Cover Diagram

#

Description
Price

1

LATCH BASE - Call your local BRP dealership

204070037

Unavailable

2

LATCH COVER - Call your local BRP dealership

204070036

Unavailable

3

SPRING - Call your local BRP dealership

204070038

Unavailable

4

LATCH CABLE - Call your local BRP dealership

204070049

Unavailable

5

Hex. Screw M6 X 35

207163560

$1.34

6

Flat Washer M6, Stainless

234062600

$0.73

7

Stainless Flat Washer M6

234061600

$0.28

8

Hex. Elastic Stop Nut M6

232561600

$1.06

9

Tie Wrap 368 mm

293750008

$0.97

10

Mount Dart

293730040

$0.99

11

TIE RAP WITH DART - Call your local BRP dealership

204130098

Unavailable

11

Tie-Rap 180 mm

414115200

$0.10

12

Engine Cover

204072135

Unavailable

13

Was 293200017 Neoprene Seal

219704365

$135.79

14

Shock Bracket

204073074

$24.60

15

Hex. Screw M4 X 16 | Europe

207141660

$1.40

16

Loctite 243, 10 ml

293800060

$21.49

17

RUBBER WASHER - Call your local BRP dealership

291000628

Unavailable

18

Flat Washer 10 mm, Stainless

234002600

$2.12

19

HEX. ELASTIC NUT M10 - Call your local BRP dealership

232501600

Unavailable

20

Latch Stud

291001420

Unavailable

21

Pole Support

291000642

Unavailable

22

PHILLIPS SCREW M4 X 25 - Call your local BRP dealership

208642560

Unavailable

23

Flat Washer 4 mm

234040600

$0.52

24

Loctite 243, 10 ml

293800060

$21.49

25

GROMMET - Call your local BRP dealership

293720017

Unavailable

26

HINGE ASS'Y - Call your local BRP dealership | Includes 19 to 21

204070127

Unavailable

27

HINGE ROD - Call your local BRP dealership

204070204

Unavailable

28

Cotter Pin M2.5 X 12

204070205

Unavailable

29

Hex. Screw M6 X 25

207162560

$1.40

30

Stainless Flat Washer M6

234061600

$0.28

31

Loctite 243, 10 ml

293800060

$21.49

32

Gas Shock, Port Side

204072013

Unavailable

32

GAS SHOCK - Call your local BRP dealership | Port Side

204071964

Unavailable

33

Shock Bracket

204071673

Unavailable

34

Pop Rivet 3/16"

293150043

$1.85

35

Flat Washer M5, Stainless

234051600

$0.73

36

CENTER COVER - Call your local BRP dealership

204073144

Unavailable

37

TRAY SEAL, METER - Call your local BRP dealership

293200032

Unavailable

38

HINGE - Call your local BRP dealership

204072601

Unavailable

39

Pop Rivet 3/16"

293150088

$0.91

40

Flat Washer M5, Stainless

234051600

$0.73

41

LATCH, WHITE - Call your local BRP dealership

204070120

Unavailable

42

SCREW M5 X 16 - Call your local BRP dealership

208651660

Unavailable

43

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

Unavailable

44

Pop Rivet 3/16"

293150005

$0.46

45

LATCH BRACKET - Call your local BRP dealership

204070050

Unavailable

46

RIVET_POP 5/32 - Call your local BRP dealership

293150029

Unavailable

47

SPRING SEAT - Call your local BRP dealership

204000071

Unavailable

48

Pop Rivet 3/16"

204000081

$1.31

49

Pop Rivet 3/16"

293150043

$1.85
