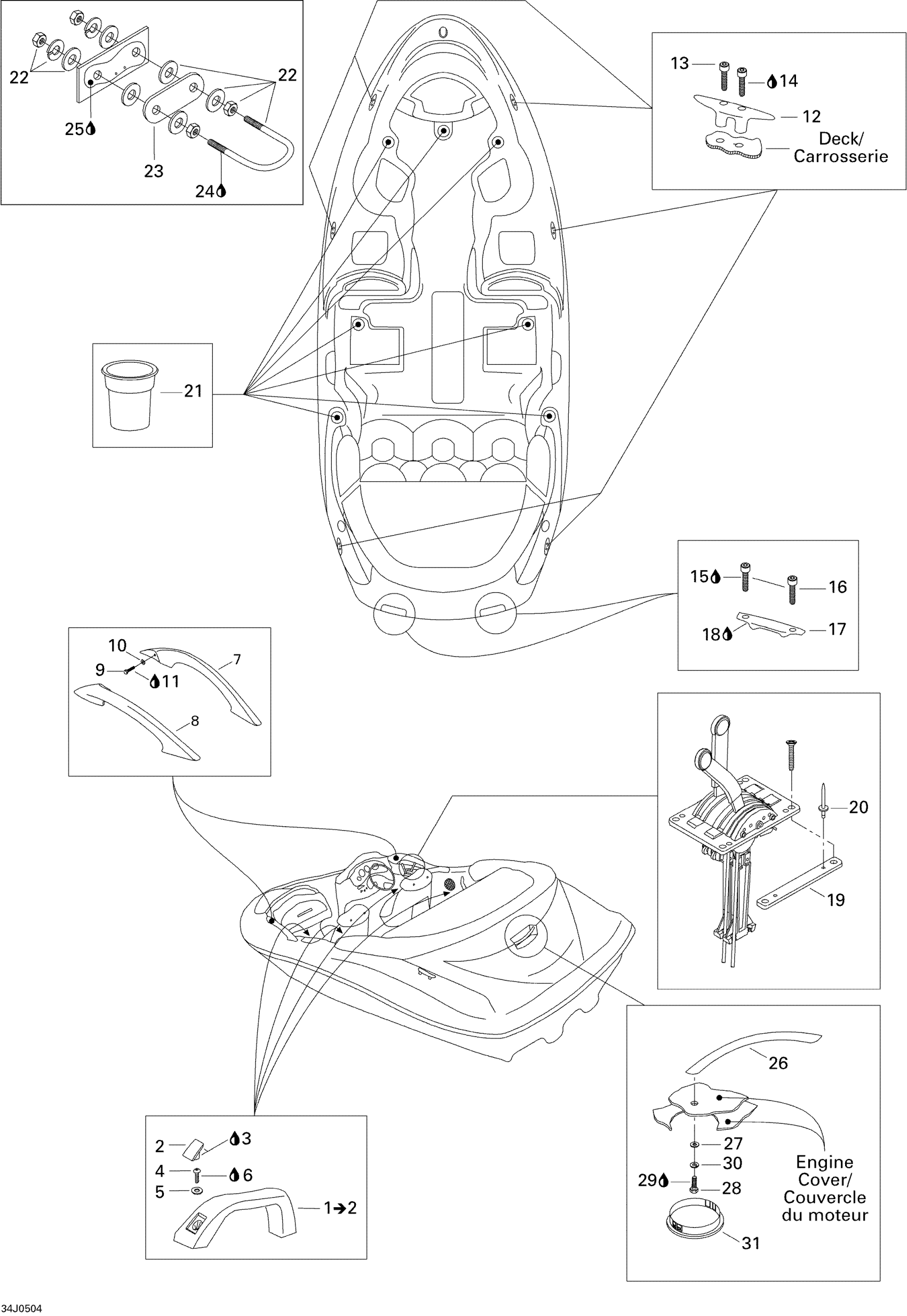

Sea-doo Challenger X, 250 Optimax, 2005 09- Body And Accessories Diagram

#

Description
Price

1

Grip Handle | Includes 6 to 7

204070045

Unavailable

2

Snap Cap

204070056

Unavailable

3

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

4

SOCKET SCREW M6 X 25 - Call your local BRP dealership

205462560

Unavailable

5

Stainless Flat Washer M6

234061600

$0.33

6

Loctite 243, 10 ml

293800060

$21.49

7

RH Lateral Grip Handle

204070590

Unavailable

8

LH Lateral Grip Handle

204070591

Unavailable

9

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

10

Flat Washer 8 mm, Stainless

234082600

$2.43

11

Loctite 243, 10 ml

293800060

$21.49

12

CLEAT - Call your local BRP dealership | STD

204070592

Unavailable

13

SOCKET HEAD SCREW M6 X 70 - Call your local BRP dealership | STD

204100144

Unavailable

14

Loctite 243, 10 ml

293800060

$21.49

15

Loctite 243, 10 ml

293800060

$21.49

16

SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership

205364060

Unavailable

17

GRIP HANDLE, BLACK - Call your local BRP dealership

204070194

Unavailable

18

Silicone Sealant 51388, 300 ml

296000309

$36.99

19

SHIFTER INSERT - Call your local BRP dealership

293450061

Unavailable

20

Pop Rivet 3/16"

293150013

$1.37

21

CUP HOLDER - Call your local BRP dealership | STD

291000619

Unavailable

22

U-Bolt

204070418

Unavailable

23

Finition Plate

204070219

Unavailable

24

Loctite 271, 10 ml

293800005

$26.99

25

Silicone Sealant 51388, 300 ml

296000309

$36.99

26

Grip Handle

204071627

Unavailable

27

Flat Washer 8 mm, Stainless

234082600

$2.43

28

Hex. Screw

204100118

Unavailable

29

Loctite 243, 10 ml

293800060

$21.49

30

Lock Washer 8 mm, Stainless

234181601

$0.55

31

Hunky Cap

293000030

Unavailable
