- Challenger X, 250 Optimax, 2005
02- Fuel System

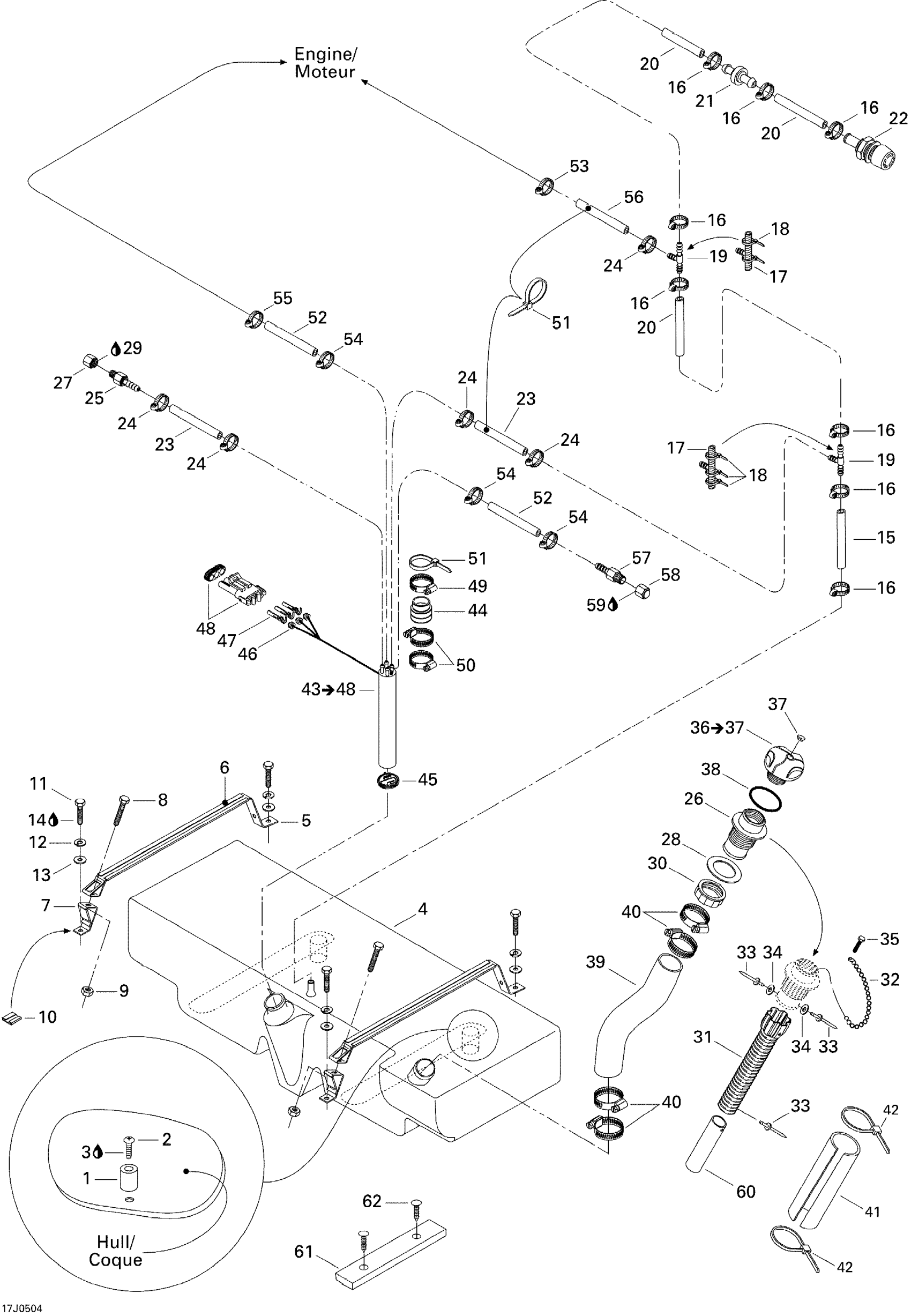

Sea-doo Challenger X, 250 Optimax, 2005 02- Fuel System Diagram
#
1
Rubber Bumper
204560039
Unavailable
2
Phillips Screw M5 X 35
208653560
$2.22
3
Loctite 271, 10 ml
293800005
$26.99
4
Fuel Tank, Plastic
204560073
Unavailable
5
Fuel Tank Strap
204560189
Unavailable
6
Protector Pad
204560037
Unavailable
7
TANK BRACKET - Call your local BRP dealership
275500252
Unavailable
8
HEX. SCREW M8 X 55 - Call your local BRP dealership
207185560
Unavailable
9
Hex. Elastic Nut M8
232581600
$1.48
10
Protecteur Pad
204560027
Unavailable
11
Hex. Screw M8 X 30
207183060
$1.58
12
Lock Washer 8 mm, Stainless
234181601
$0.55
13
Flat Washer 8 mm, Stainless
234082600
$2.43
14
Loctite 271, 10 ml
293800005
$26.99
15
HOSE 16 MM - Call your local BRP dealership
204560358
Unavailable
16
NORMA CLAMP - Call your local BRP dealership
293650069
Unavailable
17
Not Available As Spare Part - Friction Washer
Unavailable
18
Tie-Rap 180 mm
414115200
$0.11
19
T-Fitting
204560038
Unavailable
20
HOSE 16 MM - Call your local BRP dealership
204560358
Unavailable
21
VENT FUEL SURGE PROTECTOR - Call your local BRP dealership
204560101
Unavailable
22
VENT BOAT - Call your local BRP dealership
275500206
Unavailable
23
HOSE 1/4 - Call your local BRP dealership
204560178
Unavailable
24
NORMA CLAMP - Call your local BRP dealership
293650121
Unavailable
25
COUPLER - Call your local BRP dealership
204560265
Unavailable
26
Filler Neck
275500247
Unavailable
27
Pipe Cap
204560263
Unavailable
28
Gasket
293250029
$14.82
29
Was 293800013 Loctite 56765
219704454
$65.99
30
Filler Neck Nut, Fuel
211100012
$14.22
31
FILLER NECK, INTERIOR - Call your local BRP dealership This part replaces 275500067.
275500757
Unavailable
32
Oil Cap Chain
275500015
Unavailable
33
Rivet 1/8”
293150057
Unavailable
34
Flat Washer M3, Stainless
234032600
$0.55
35
Screw K40 X 10
241140060
$1.48
36
Fuel Tank Cap, Black | Includes 26 to 27
275500430
$27.49
37
Black, Snap Cap
293000034
$9.39
38
Gasket
293250017
Unavailable
39
NECK FILLER HOSE - Call your local BRP dealership
219700374
Unavailable
40
Norma Clamp
293650081
$12.18
41
Neoprene Cover
204130046
Unavailable
42
Tie Wrap 368 mm
293750008
$1.04
43
BAFFLE PICK-UP ASS?Y - Call your local BRP dealership | Includes 43 to 48
204560223
Unavailable
44
Fuel Tube Adaptor
204560066
Unavailable
45
FUEL FILTER - Call your local BRP dealership
275500397
Unavailable
46
Wire Seal
278000218
$4.39
47
Female Terminal
278000223
$3.19
48
Male Housing, 3 Circuits
278000273
$9.59
49
NORMA CLAMP - Call your local BRP dealership
293650174
Unavailable
50
Norma Clamp
293650081
$12.18
51
Tie-Rap 180 mm
414115200
$0.11
52
Hose 5/16”, Meter
204560177
Unavailable
53
NORMA CLAMP - Call your local BRP dealership
293650121
Unavailable
54
NORMA CLAMP - Call your local BRP dealership
293650070
Unavailable
55
NORMA CLAMP - Call your local BRP dealership
293650070
Unavailable
56
HOSE 1/4 - Call your local BRP dealership
204560178
Unavailable
57
Hose Fitting
204560264
Unavailable
58
Pipe Cap
204560263
Unavailable
59
Was 293800013 Loctite 56765
219704454
$65.99
60
Not Available As Spare Part - Friction Washer
Unavailable
61
Rubber Pad
204060701
Unavailable
62
Black, Dart
293730006
$0.99
