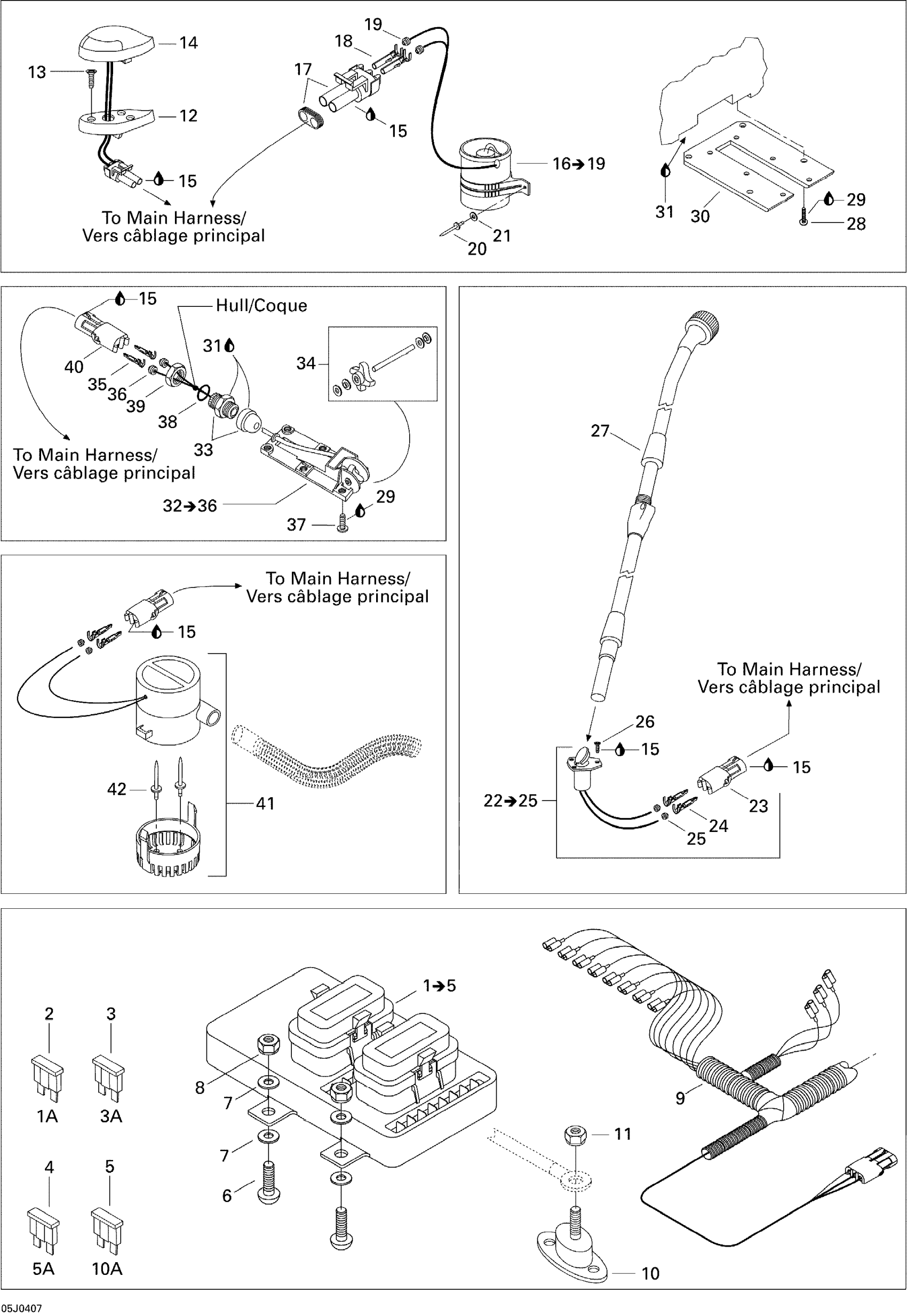

Sea-doo Challenger X 240 EFI/250 Optimax, 2004 Electrical Accessories 2 Diagram

#

Description
Price

1

FUSE BLOCK - Call your local BRP dealership

204470815

Unavailable

2

FUSE, 1 AMPERE - Call your local BRP dealership

409012800

Unavailable

3

FUSE, 3 AMPERES - Call your local BRP dealership | CE

278001196

Unavailable

4

Fuse, 5 Amperes | CE

278000344

Unavailable

5

Fuse, 10 Amperes | North America

278001197

Unavailable

6

PHILLIPS SCREW M6 X 25 - Call your local BRP dealership

208662560

Unavailable

7

Flat Washer M6, Stainless

234062600

Unavailable

8

Hex. Elastic Stop Nut M6

232561600

Unavailable

9

Accessories Harness

204470835

Unavailable

10

Ground Post

204470715

Unavailable

11

HEX. ELASTIC NUT 3/8 - Call your local BRP dealership

204100032

Unavailable

12

FRONT LAMP SUPPORT - Call your local BRP dealership

204470072

Unavailable

13

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable

14

Front Lamp

204470311

Unavailable

15

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

16

Fan Ass'y | Includes 44 to 47

204470108

Unavailable

17

Male Connector, 2 Circuits

278000220

Unavailable

18

Female Terminal

278000223

Unavailable

19

Wire Seal

278000218

Unavailable

20

Pop Rivet 3/16"

293150008

Unavailable

21

Flat Washer 5 mm, Stainless

234052600

Unavailable

22

Rear Light Base Ass'y | Includes 33 to 36

278000674

Unavailable

23

Female Housing, 2 Circuits

278000217

Unavailable

24

Male Terminal | XT Models

278000222

Unavailable

25

Wire Seal

278000218

Unavailable

26

Phillips Tapping Screw M4.2 X 32

209943260

Unavailable

27

Rear Lamp Pole 62" | Speedster With Tower

204470817

Unavailable

28

Phillips Screw M6 X 35 | W/O Weedless System

208563560

Unavailable

29

Loctite 243, 10 ml

293800060

Unavailable

30

Sensor Support

204470538

Unavailable

31

Silicone Sealant 51388, 300 ml

296000309

Unavailable

32

SENSOR-SPEED - Call your local BRP dealership | Includes 36 To 37 This part replaces 278000970.

278001998

Unavailable

33

ELECTRIC CONNECTION - Call your local BRP dealership

293710031

Unavailable

34

Paddle Wheel Kit

295500108

Unavailable

35

Male Terminal | XT Models

278000222

Unavailable

36

Wire Seal

278000218

Unavailable

37

PHILLIPS SCREW M5 X 10 - Call your local BRP dealership

208551060

Unavailable

38

SEAL WASHER - Call your local BRP dealership

278000416

Unavailable

39

LOCKING NUT - Call your local BRP dealership

293710032

Unavailable

40

Female Housing, 2 Circuits

278000217

Unavailable

41

Bilge Pump

204471431

Unavailable

42

RIVET_POP 5/32 - Call your local BRP dealership

293150029

Unavailable
