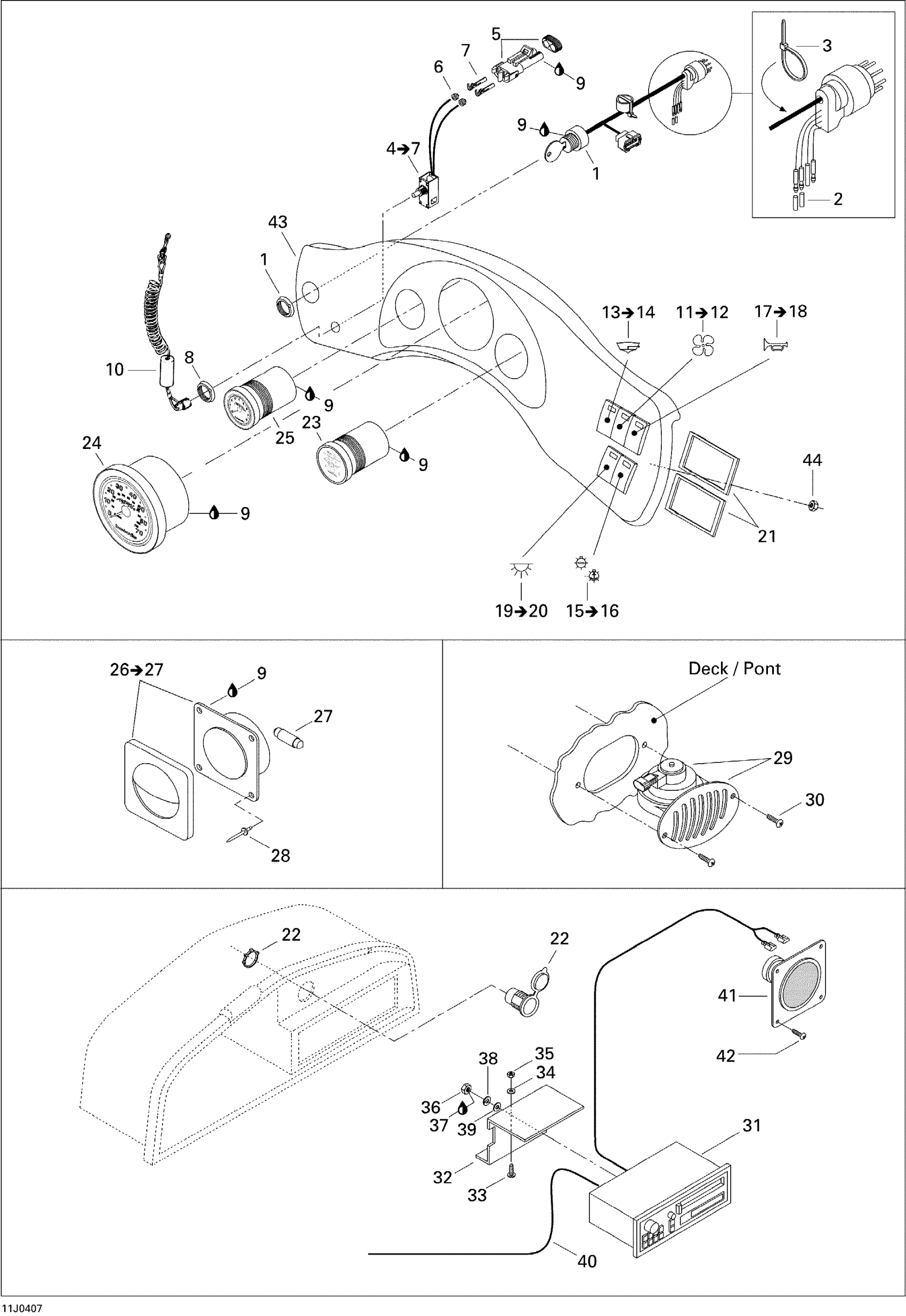

Sea-doo Challenger X 240 EFI/250 Optimax, 2004 10- Electrical Accessories 1 Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

RUBBER CAP - Call your local BRP dealership

204130033

Unavailable

3

Tie Wrap 94 mm | 4X4

293750001

$1.03

4

SAFETY SWITCH ASS'Y - Call your local BRP dealership | Includes 10 to 13

204470867

Unavailable

5

Male Connector, 2 Circuits

278000220

$15.49

6

Wire Seal

278000218

$4.39

7

Female Terminal

278000223

$3.19

8

Safety Switch Nut

278000099

Unavailable

9

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

10

Safety Lanyard

278001431

$47.49

11

VENTILATION SWITCH ASS'Y - Call your local BRP dealership

204470011

Unavailable

12

Gasket

204470132

Unavailable

13

BILGE PUMP SWITCH ASS'Y - Call your local BRP dealership

204470099

Unavailable

14

Gasket

204470132

Unavailable

15

LIGHT SWITCH ASS'Y - Call your local BRP dealership

204470100

Unavailable

16

Gasket

204470132

Unavailable

17

HORN SWITCH ASS'Y - Call your local BRP dealership

204470101

$49.99

18

Gasket

204470132

Unavailable

19

COURTESY LIGHT SWITCH ASS'Y - Call your local BRP dealership

204470102

Unavailable

20

Gasket

204470132

Unavailable

21

LOCKING PLATE - Call your local BRP dealership

204470343

Unavailable

22

DC Outlet

710001248

$37.99

23

Oil/Fuel Gauge

204470806

Unavailable

24

Speedometer Gauge

204470805

Unavailable

25

Tachometer Gauge

204470807

Unavailable

26

Courtesy Light Ass'y | Includes 29 to 30

204470026

$47.49

27

BULB - Call your local BRP dealership

204470081

Unavailable

28

RIVET_POP 1/8 X ,487 - Call your local BRP dealership

293150032

Unavailable

29

HORN - Call your local BRP dealership

204470801

Unavailable

30

Phillips Tapping Screw M4.2 X 32

209943260

$1.47

31

Compact Disk Radio

204470869

Unavailable

32

Radio Support

204470688

Unavailable

33

PHILLIPS SCREW M6 X 20 - Call your local BRP dealership

208462060

Unavailable

34

Flat Washer M6, Stainless

234062600

$0.77

35

Hex. Elastic Stop Nut M6

232561600

$1.15

36

Hex. Nut M5

232051600

$1.15

37

Loctite 243, 10 ml

293800060

$21.49

38

Helical Lock Washer M5

234151601

$1.15

39

Flat Washer 5 mm, Stainless

234052600

$0.77

40

Antenna

204470380

Unavailable

41

Speaker

204470378

Unavailable

42

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable

43

Facia

204470736

Unavailable

44

Hex. Elastic Nut M8

232581600

$1.48
